16.2.3.1.3 Hub-to-Remotes using Ethernet Switches or Routers

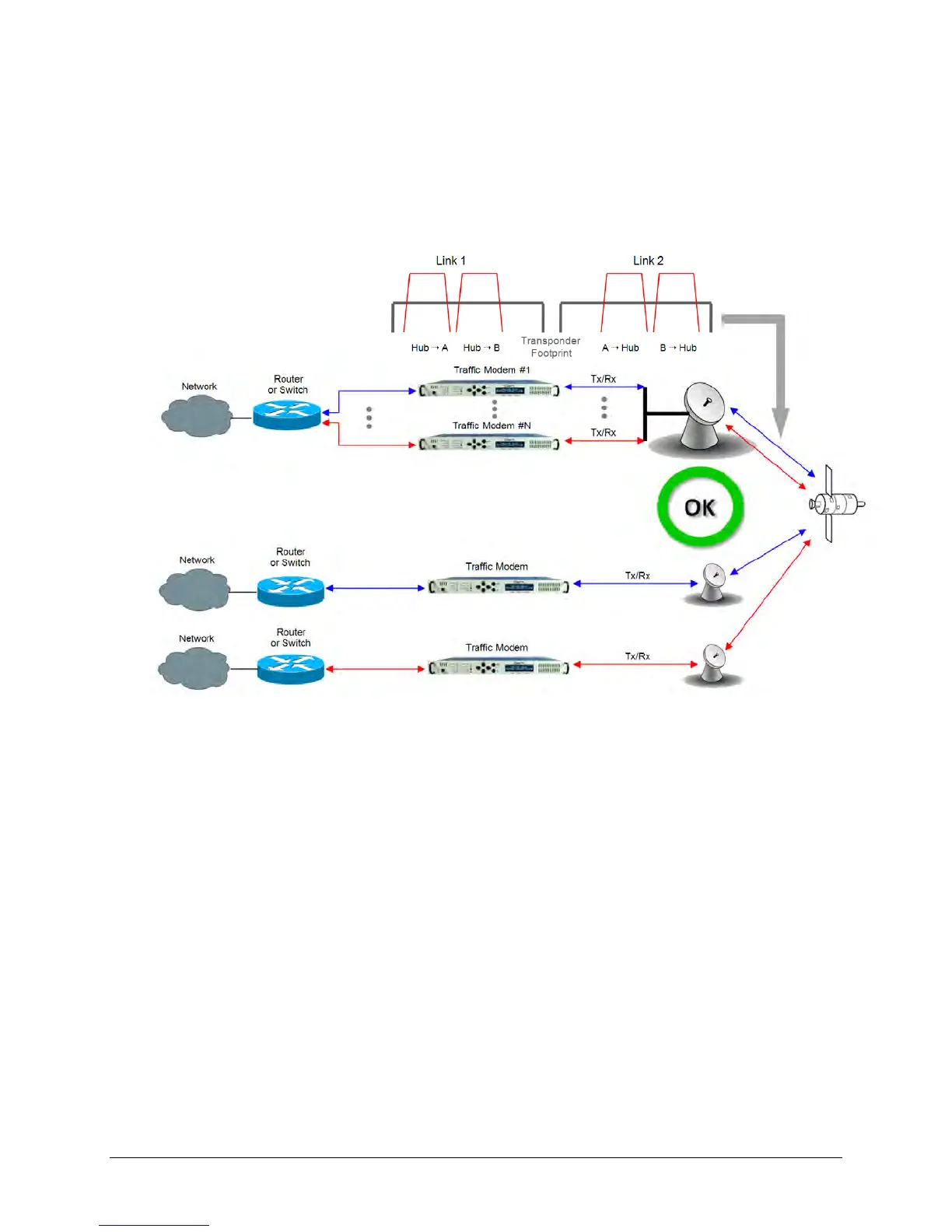

Figure 16-6 shows a hub-to-remotes configuration using switches or routers with standard
Ethernet traffic, the routers/switches will block broadcasts coming from the hub and remote
networks; therefore, the creation of a broadcast storm is prevented and there is no possibility of
having a remote MAC on the Hub networks.
Figure 16-6. Hub-to-Remotes with Standard Traffic using Routers or Switches
