E.3.3.6 Home > Modem > Drop and Insert (D&I)
Chapter 9. CLOCK MODES AND DROP AND INSERT (D&I)

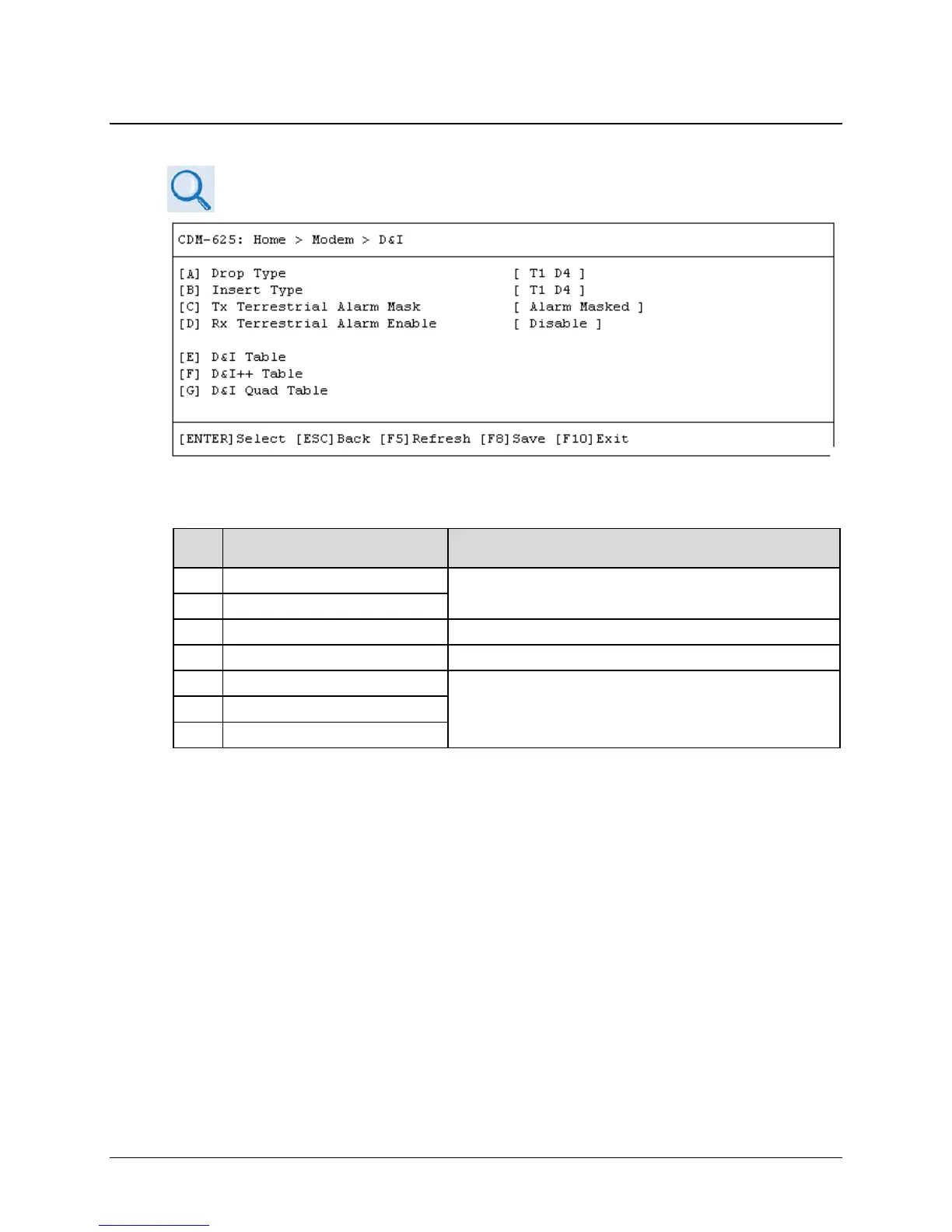

Open the Drop and Insert (D&I) page from the Modem page. This page contains the following
options:
Hot
Key
Dialog Window Option Entry
A
Drop Type
Typical for either entry – Use the ↑↓ arrow keys to select T1D4, T1
ESF, E1 CCS, or E1CAS
B Insert Type
C
Tx Terrestrial Alarm Mask
Use the ↑↓ arrow keys to select Alarm Active or Alarm Masked
D Rx Terrestrial Alarm Enable Use the ↑↓ arrow keys to select Disable or Enable
E
D&I Table
See Sect. E.3.3.6.1 for details F D&I++ Table
G
D&I Quad Table
Press a hot key to open a dialog window. Otherwise, press [ESC] to return to the Modem
submenu.
