2–1

Chapter 2. INSTALLATION

2.1 Unpacking and Inspecting the Shipment

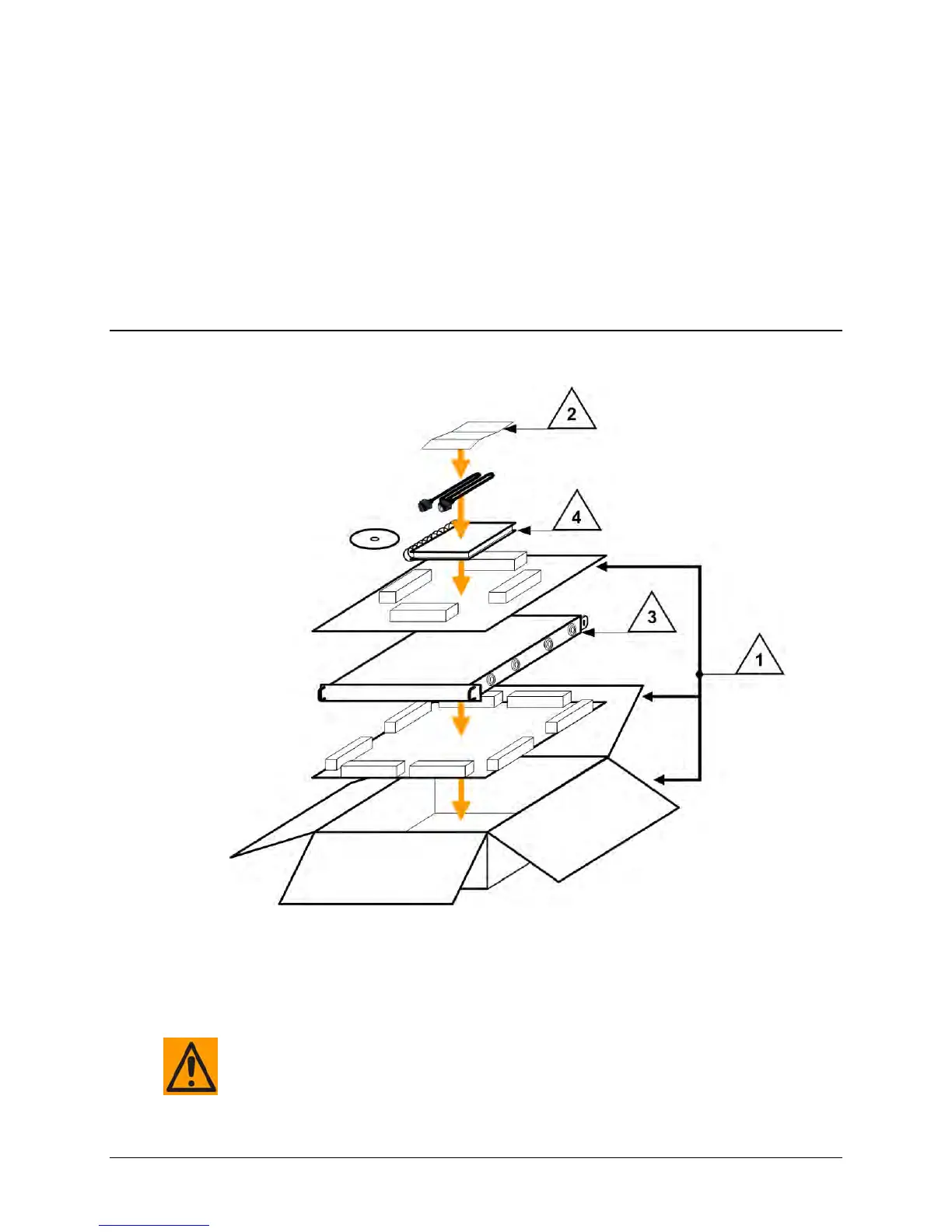

Figure 2-1. Unpacking and Inspecting the CDM-625

The CDM-625 Advanced Satellite Modem, its Installation and Operation Manual, and its power

cord were packaged and shipped in a reusable cardboard carton containing protective foam

spacing.

This equipment contains parts and assemblies sensitive to damage by Electrostatic

Discharge (ESD). Use ESD precautionary procedures when handling the equipment.
