Comtech EF Data CDM-625 - Figure 6-41. Status | Traffic Statistics | Compression Page; Status | Traffic Statistics

To Next Page

To Previous Page

CDM-625 Advanced Satellite Modem Revision 13

Ethernet-based Remote Product Management MN-CDM625

6–69

For either page version, note the following:

Clear Statistics / WAN Statistics

Click [Clear] or [Clear Statistics] to clear all WAN statistics from the buffer.

Click [Refresh] to update the page with the latest available statistics.

6.5.4.4.4.5 Status | Traffic Statistics | Compression

This n ested p age i s accessible o nly to Admin u sers a nd w hen the optional IP

Packet Processor ca rd is installed and enabled. See Sect. 6.5.3.1 for complete

details about using conditional access pages.

Use this page to view cumulative Header Compression and Payload Compression statistics.

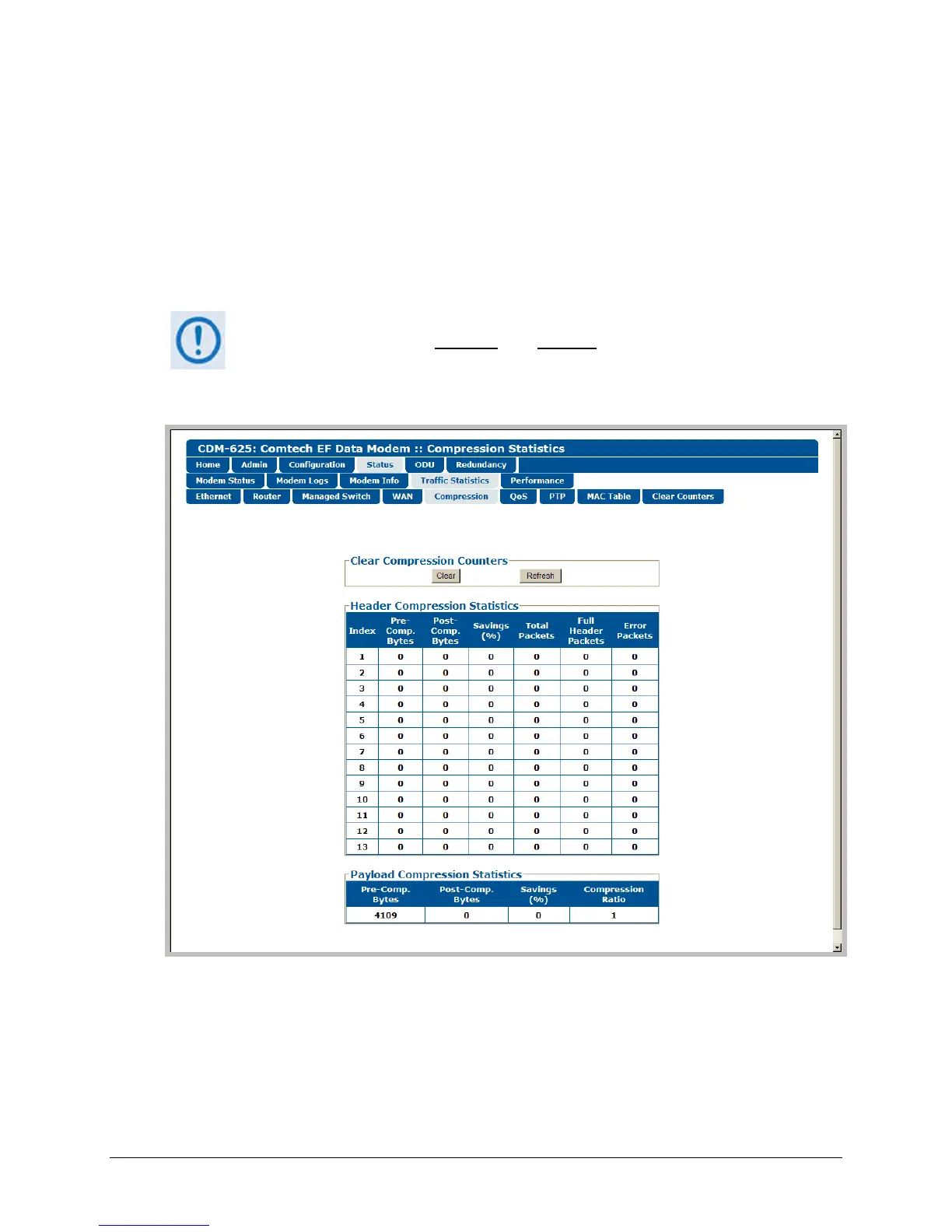

Figure 6-41. Status | Traffic Statistics | Compression page

Clear Compression Counters

Click [Clear] to clear all compression statistics from the buffer.

Click [Refresh] to update the page with the latest available statistics.
