OPERATING MODE
PRODUCT REFERENCE GUIDE 117
Area Camera Frame Rate AV500 Only
Tunnel Frame Rate
Select an appropriate Frame Rate from the drop-down list.
• 8 frames per second
• 16 frames per second
• 24 frames per second
• 32 frames per second

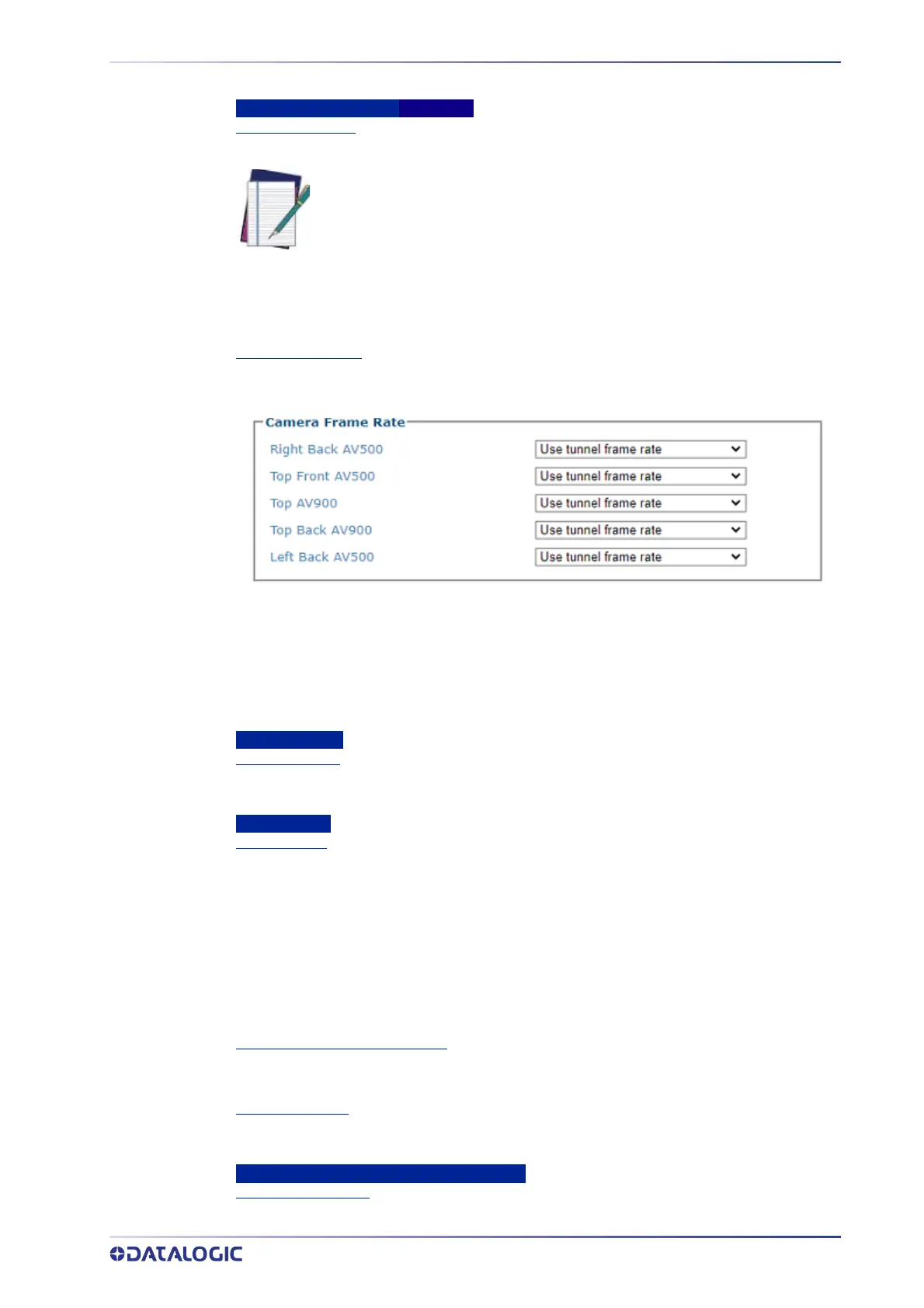

Camera Frame Rate
If there are multiple AV500/900 cameras in a system, you can specify a tunnel frame rate for
each specific camera. Use the options below to specify.
Select from the following:
• Use tunnel frame rate
• 8 frames per second
• 16 frames per second
• 24 frames per second
• 32 frames per second
Conveyor Width
Conveyor Width
Enter the conveyor width. The Conveyor Width is the area on the conveyor that a bar code can
be read by the camera.
Trigger Source
Trigger Source
Select Position Sensor, Photo Sensor, or Trigger Message from the drop-down list.
•
Position Sensor: triggers when selected position sensor senses a package.
•
Photo Sensor: triggers when a photoelectric sensor is blocked. This can also be a contact
closure or a 24VDC signal from a PLC.
•
Trigger Message: triggers when a trigger message is received from an external device.
•
Ethernet / IP: when a trigger message comes from PLC on Ethernet IP Connection
If you select Photo Sensor or Trigger Message as your Trigger Source, the following Trigger
Source options are available.
Trigger Source to Position Sensor
Enter the distance in inches or millimeters from the Trigger Source to the Position Sensor if
using a Photo Sensor, Trigger Message or Ethernet IP Trigger Source.
Trigger Controller
If Trigger Message is the Trigger Source, select which camera in your system is controlling the
trigger message.
Position Sensor Settings (Primary Controller)
Position Sensor Type
NOTE: This option is adjusted to best fit various applications. Contact Data-
logic support to determine the correct setting.
