Advanced Encoder Settings
The settings are available when Physical Encoder is set to Enabled above.
Direct Encoder
Select Disable or Enable from the drop-down list. Direct encoder is a high-resolution encoder/
tachometer used in start/stop applications.
Area Camera Frame Rate AV500 ONLY
Tunnel Frame Rate
Select an appropriate Frame Rate from the drop-down list.
•
• 8 frames per second
• 16 frames per second
• 24 frames per second
• 32 frames per second

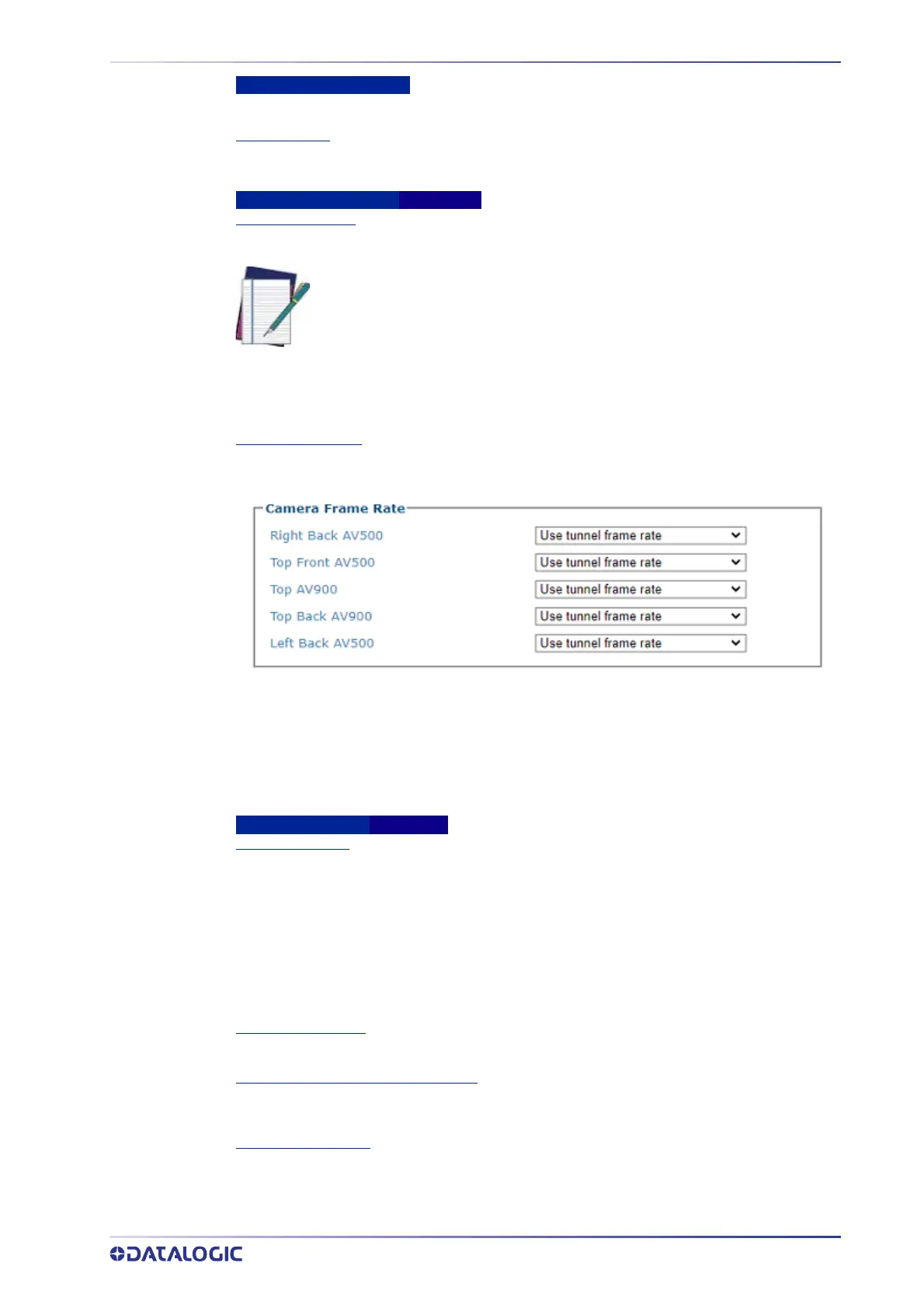

Camera Frame Rate
If there are multiple AV500/900 cameras in a system, you can specify a tunnel frame rate for
each specific camera. Use the options below to specify.
Select from the following:
• Use tunnel frame rate
• 8 frames per second
• 16 frames per second
• 24 frames per second
• 32 frames per second
Green Spot Settings AV500 Only
Green Spot Mode
Select one of the following from the drop-down lists:
•Disabled
•Good Read - Immediate: this option will light the green LED at the time of the bar code
being decode. In an array only the camera that read the bar code will light
•
Good Read - Host Transmission: this option will light the green LED when the package
reaches the transmit point. In the on-line mode it will light when the trailing edge of the
package leaves the trigger photo sensor. In the Packtrack mode it will light when the defined
edge of the package, leading or trailing, arrives at the Distance To Transmit Point setting.
Green Spot On Time
Specify the amount of time is milliseconds that the Green Spot should remain on.
Illumination Off While Green Spot On
Click the check-box to turn of Illumination while Green Spot is on. This may help you use Green
Spot to line up the camera.
X-Press Functionality
Select Enabled or Disabled from the drop-down.
NOTE: This option is adjusted to best fit various applications. Contact Data-
logic support to determine the correct setting.
