AV7000 LINEAR CAMERA

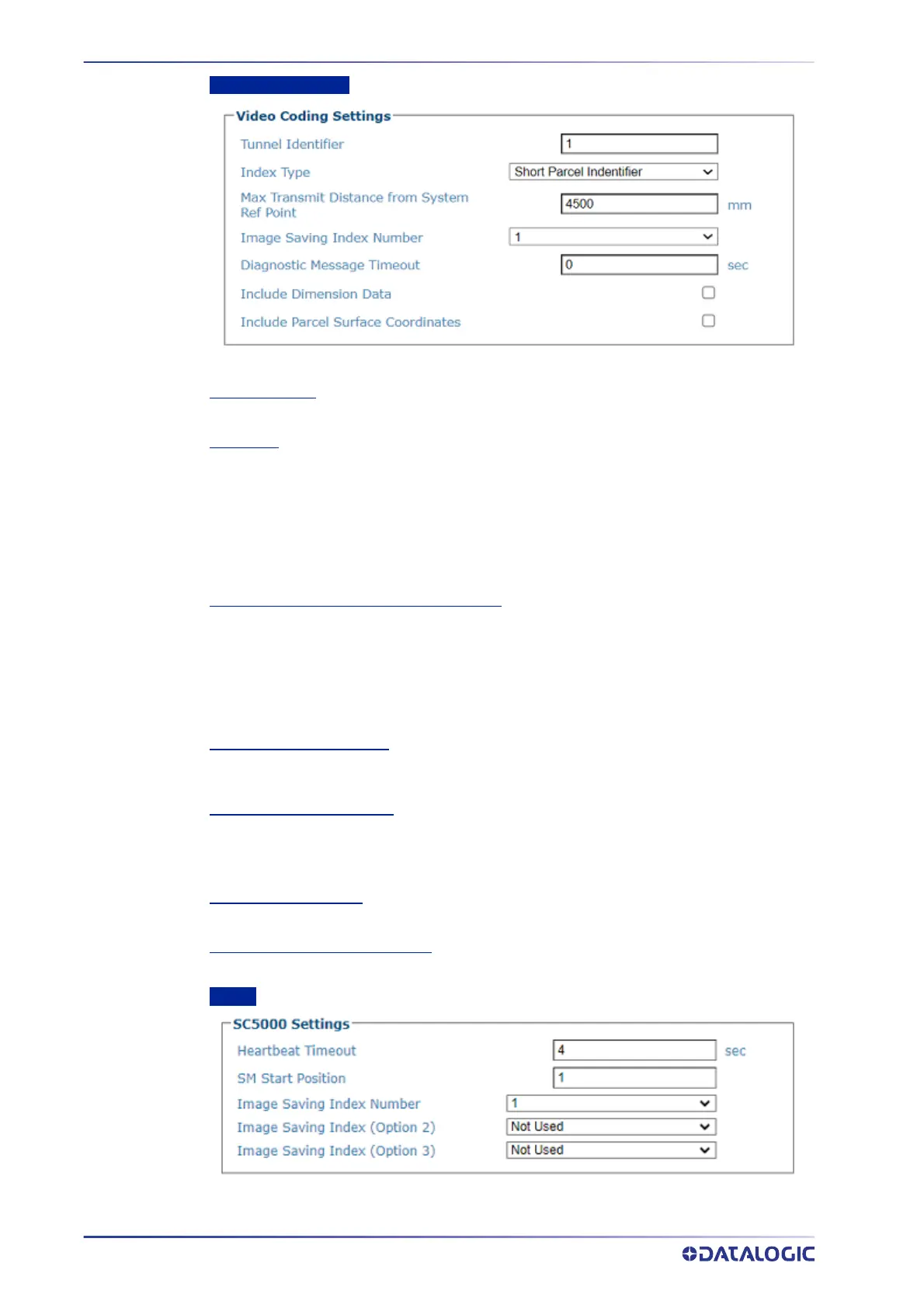

Video Coding Settings
Tunnel Identifier
Enter at character string used to identify the AV7000 Tunnel/Array; usually a number.
Index Type
Select Short Parcel Identifier, Extended Parcel Identifier, or Parcel Protocol Index from the
drop-down list, to indicate the type of identifier used to tag a package in communication
between the AV7000 System, Video Coding System and Host. •Short Parcel Identifier: A string
representing the package reference number n n n (max 3 digits from 0 to 255) •Extended
Parcel Identifier: A string representing the package reference number (max 3 digits from 0 to
255) appended to the Timestamp: Y Y M M D D H H M M S S M M M n n n Parcel Protocol Index:
The Protocol Index string received from the Host through the enabled Protocol Index
communication channel. See section for Example Protocol Index configuration.
Max Transmit Distance from System Ref Point
regarding a parcel to the Video Coding System as soon as it is available. This information for
each image includes the address where it has been saved, and the value and position of each
decoded label found on that image. If images become available at different times (typically on
multisided AV7000 Systems) more than one message is sent to the Video Coding System. The
last one is explicitly flagged. If this Max Distance from the Trigger is reached for a parcel before
all the expected images are saved, the last message is sent to force the closure of the parcel
transaction.
Image Saving Index Number
Select a number from the drop-down list. These numbered selections are defined in Image
Savings | Images Settings.
Diagnostic Message Timeout
Enter an amount of seconds. It defines the time between Diagnostic Messages. If set to 0 it
disables Diagnostic Messages.
Include Dimension Data
Select this check box to include packages dimension data with your image.
Include Parcel Surface Coordinates
Select this check box to include package surface coordinates with your image.
