Datalogic Magellan 9300i User Manual

To Checkpoint® or Nedap® EAS System
Product Reference Guide 5

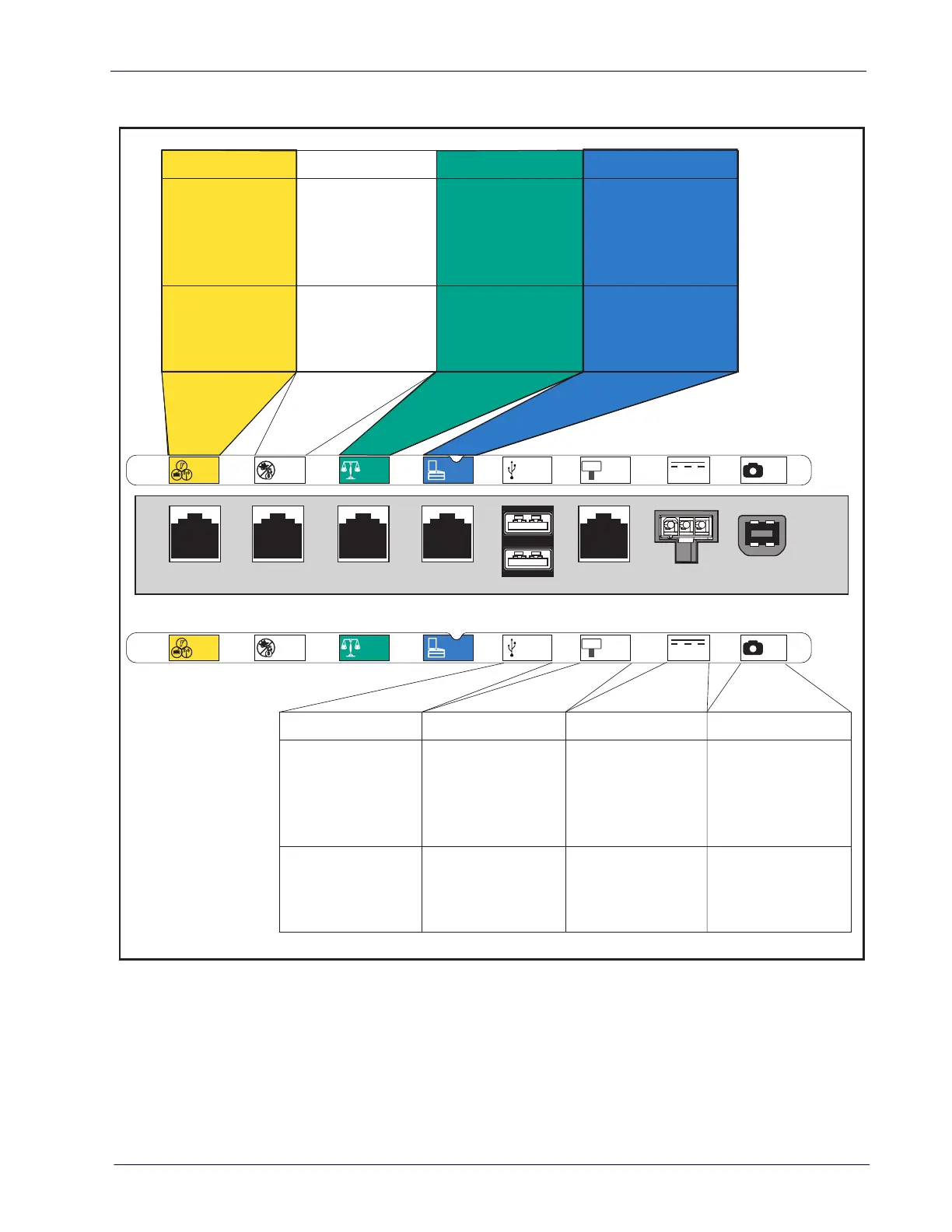

Figure 3. Connector Panel
Connector Bulkhead
HOST PORT
REMOTE DISPLAY POWER
Connection to
these ports is
Optional
AC Brick Input
OR
Power off Terminal
(POT) Brick Input
Drives Remote Display
· Label Data
· Scale Data (for
single cable interfaces)
· Application Download
(where appropriate)
USB PORTS
· USB Handheld
Scanner Input
· USB-to-Serial adapter
used for scale cali-
bration testing.
Models with scale
only
USB ‘B’ IMAGE PORT
Connection to
this port is
Optional
· Connects to archive
drive or other device
for saving captured
image files.
SCALE HOST
Scale Data (dual
cable scanner/scale)
Dual cable units only.
(Scale connection may
be handled through
POS Terminal port)
AUXILIARY PORT
Connection to
this port is
Optional
Connection to
this port is
Optional
· Application Download
to attached RS-232
Handheld Scanner
· Provides Good Read
output to enable EAS
antenna RF output
EAS
POWER
0.00
REMOTE
DISPLAY
USB
HOST
PORT
SCALE
HOST
EAS
AUX
PORT
POWER
0.00
REMOTE
DISPLAY
USB
HOST
PORT
SCALE
HOST
EAS
AUX
PORT

Datalogic Magellan 9300i Specifications

General

Input voltage	100 - 240 V
Input frequency	50 - 60 Hz
Power source type	AC
Power consumption (standby)	11 W
Type	Built-in bar code reader
Sensor type	-
Scanner type	1D/2D
Light levels (direct sunlight)	0 - 86080 lx
Linear (1D) barcodes supported	GS1 DataBar Expanded, GS1 DataBar Omnidirectional, JAN, U.P.C.
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, Micro QR Code, QR Code
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Standard interfaces	RS-232
Connectivity technology	Wired
Product color	Black, Grey
Built-in display	No
Sustainability certificates	RoHS

Weight and Dimensions

Weight	- g
