6 Magellan™ 9300i / 9400i Scanners
Physical Parameters
This section provides specifications for performance, environmental and elec-
trical parameters. Reference the second section of this manual, Site Preparation
and Installation on page 17, for physical measurements of all models and some
accessories.
Scanning
A scan zone (Figure 4) exists in the area between the horizontal and vertical
scan windows. Separate projections from each of these sources combine to
form a zone where bar code labels are read. Refer to the
Operation and Mainte-
nance on page 49 section of this manual for more details about the topic: Scan-
ning Items on page 49.

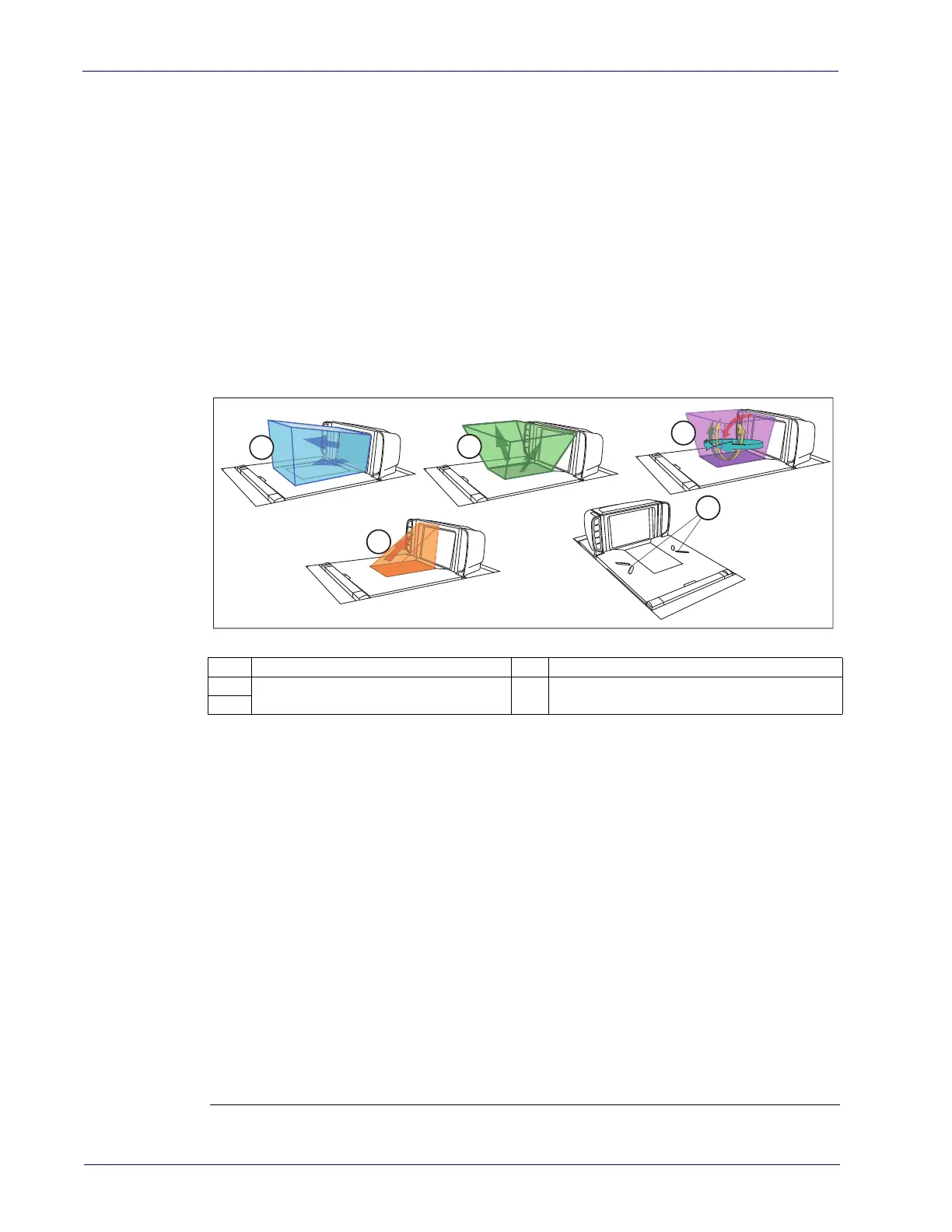

Figure 4. Scan Zone
EAS Tag Deactivation System
Scanners can be ordered from the factory to include an optional EAS (Electronic
Article Surveillance) deactivation system. Multiple EAS system types are avail
-
able. At the time of this writing they are: Checkpoint
1
(for Counterpoint IX and
Evolve D11 models), Sensormatic
2
and Nedap.
The Sensormatic
®
deactivation system requires connection as shown in Figure
2a. Reference Chapter 3, Deactivating Security Labels for more information
about its use.
Contact Technical Support on page 15 for information about installation of the
Sensormatic AMB-9010/IPS EAS Deactivation Controller (AMB-5120) controller
box. Additional details about this system can be referenced under the following
topics:
• Chapter 3, Deactivating Security Labels
• Chapter 7, EAS Features — Sensormatic
1
Vertical Scan Zone
4
Combined Scan Zone
2
Horizontal Scan Zone
5
Targeting Guides
3
1. Checkpoint is a registered trademark of Checkpoint Systems, Inc
2. Sensormatic is a registered trademark of Sensormatic Electronics Corporation.
