RS-232 ACK NAK Features
ACK NAK Enable
This enables/disables the ability of the scanner to support the RS-232 ACK/
NAK protocol. When configured, the scanner and/or host sends an “ACK” when
it receives data properly, and sends “NAK” when the data is in error. Selections
for this option are:
•Disable ACK NAK
• Enable for Label Transmission — the scanner expects an ACK/NAK
response from the host when a label is sent)
• Enable for Host Acknowledgement — Enabled for Host Commands (the
scanner will respond with ACK/NAK when the host sends a command)
• Enable for Label & Host — Enabled for both Label Transmission & Host
Command acknowledgement.
To select the option for RS-232 ACK NAK Enable:
1. Scan the Enter/Exit Programming Mode bar code.
2. Scan the desired option from bar codes below and on the following page.
You’ll need to cover any unused bar codes on this and the facing page to
ensure that the scanner reads only the bar code you intend to scan.
3. Complete the programming sequence by scanning the Enter/Exit Pro-
gramming Mode bar code.

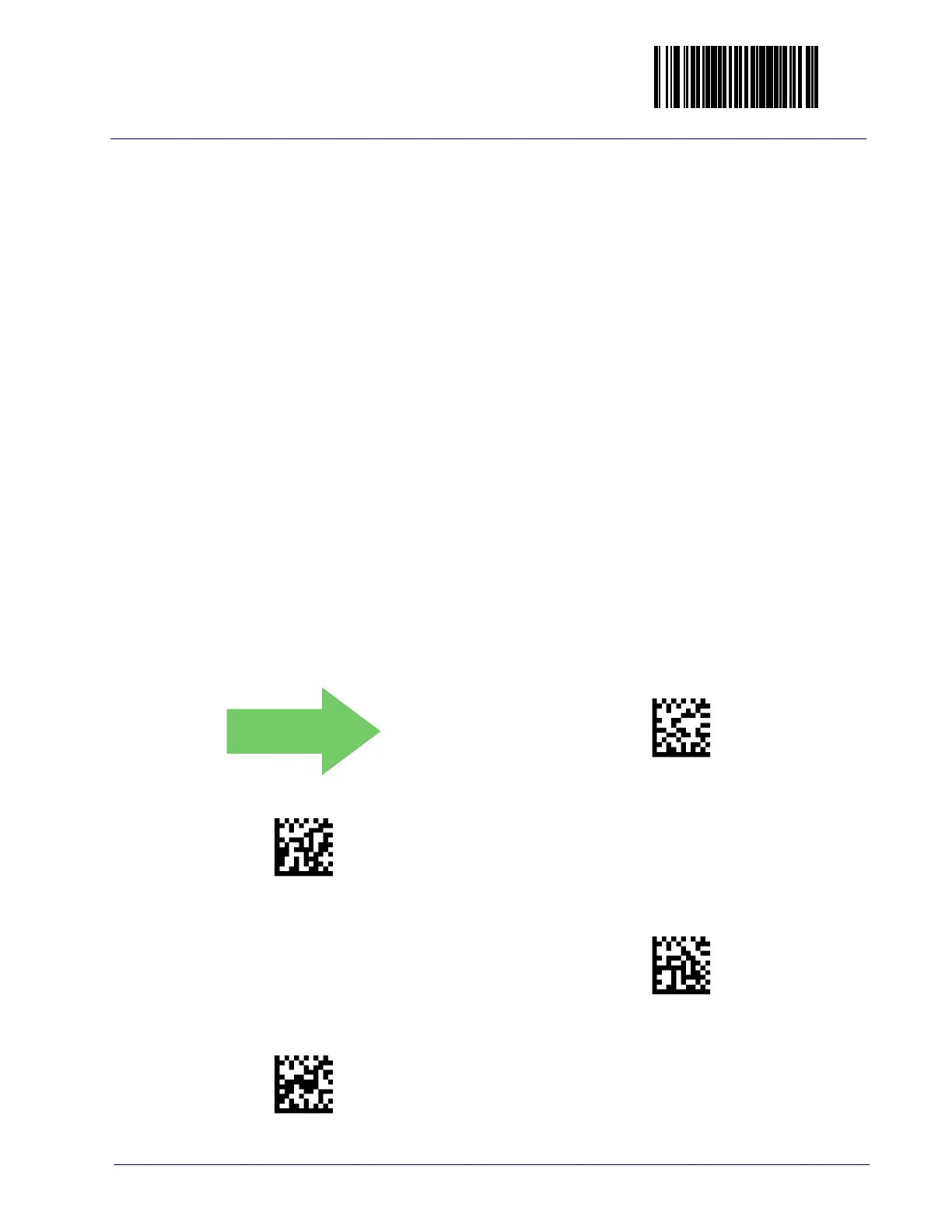

RS-232 ACK NAK = Disable
RS-232 ACK NAK = Enable for Label Transmission
RS-232 ACK NAK = Enable for Host Acknowledgement
RS-232 ACK NAK = Enable for Label & Host
DEFAULT
061100(CR)
061101(CR)
061102(CR)
061103(CR)

Datalogic Magellan 9300i Specifications

General

Input voltage	100 - 240 V
Input frequency	50 - 60 Hz
Power source type	AC
Power consumption (standby)	11 W
Type	Built-in bar code reader
Sensor type	-
Scanner type	1D/2D
Light levels (direct sunlight)	0 - 86080 lx
Linear (1D) barcodes supported	GS1 DataBar Expanded, GS1 DataBar Omnidirectional, JAN, U.P.C.
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, Micro QR Code, QR Code
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Standard interfaces	RS-232
Connectivity technology	Wired
Product color	Black, Grey
Built-in display	No
Sustainability certificates	RoHS

Weight and Dimensions

Weight	- g
