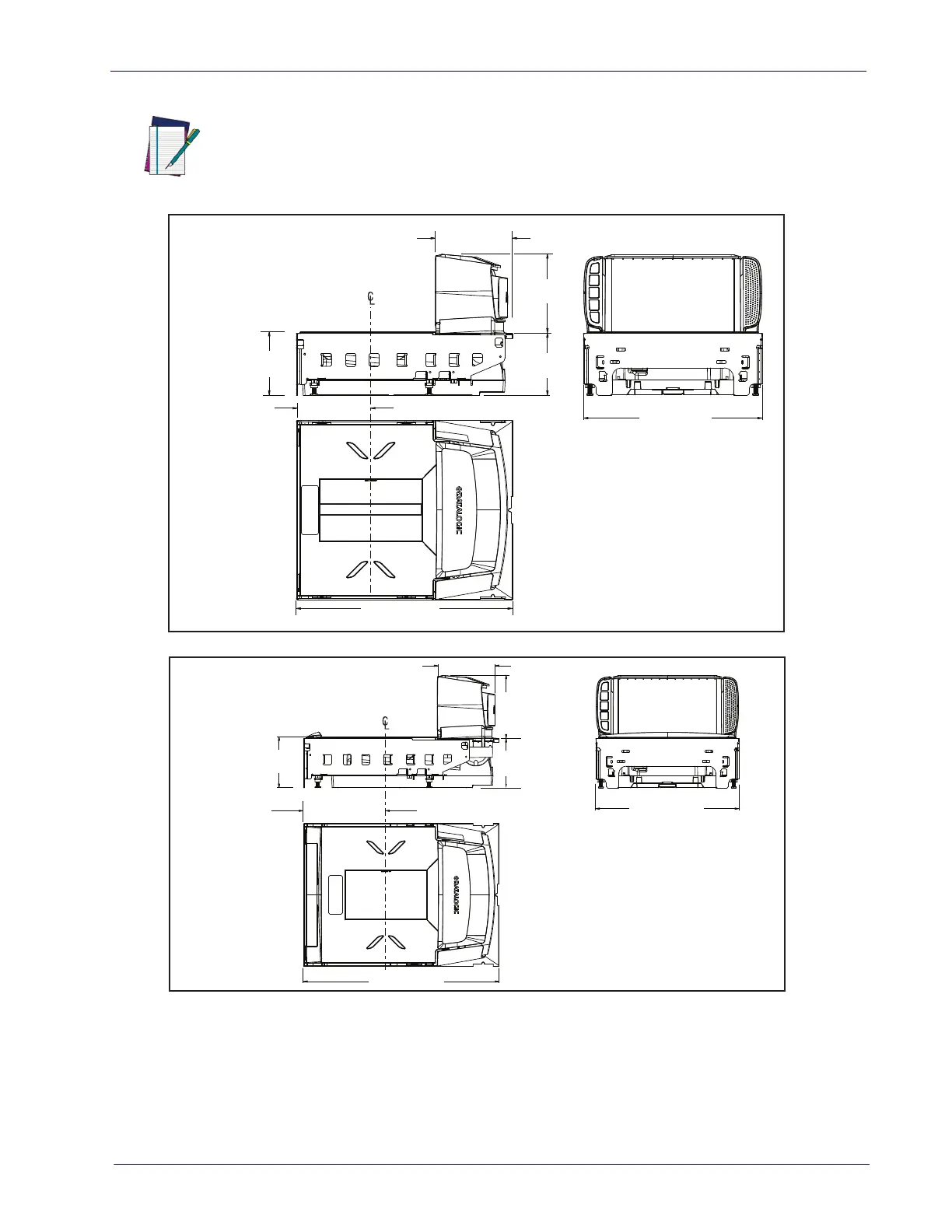

Scanner Dimensions
NOTE
For reference only - see "Counter Cutout" on page 27 for actual counter cutout
dimensions for your model.
351.9mm (13.85”)
121.1mm (4.76”)
128.8mm
(5.07”)
100.5mm
(3.95”)
117.9mm (4.64”)
103.3mm
(4.06”)
292.1mm (11.5”)
Window
SHORT (SHELF MT)
Model 939401
399mm (15.7”)
168.2mm (6.62”)
128.8mm
(5.07”)
117.9mm (4.64”)
103.6m
(4.07”)
292.1mm(11.5”)
100.5mm
(3.95”)
MEDIUM (SHELF MT)
Models 939403 and 939404
FOR REFERENCE ONLY
