Datalogic Magellan 9300i User Manual

Enter/Exit Programming Mode General Scanner and Scale Features
170 Magellan™ 9300i / 9400i Scanners
Scale Interface Settings
This feature sets the parity, stop bit and data bits for the scale interfaces.
Bit 2 = reserved
Bit 3 = word length
• 0 = 8 bit word (7 data bits if parity is set, 8 data bits if no parity)
• 1 = 9 bit word (8 data bits if parity is set, 9 data bits if no parity)
Bits 4-5 = stop bits
Bits 6-7 = reserved
1. Scan the Enter/Exit Programming Mode bar code.
2. Scan your selection from the bar codes below. You’ll need to cover any
unused bar codes on this and the facing page to ensure that the scanner
reads only the bar code you intend to scan.
3. Complete the programming sequence by scanning the Enter/Exit Pro-
gramming Mode bar code.
Bits 0-1 = Parity
•0 = default •2 = odd
• 1 = even • 3 = none
•0 = 1 stop bit •2 = 2 stop bits
NOTE
Default interface setting depends on the value set in "Scale
Interface Type" on page 165.

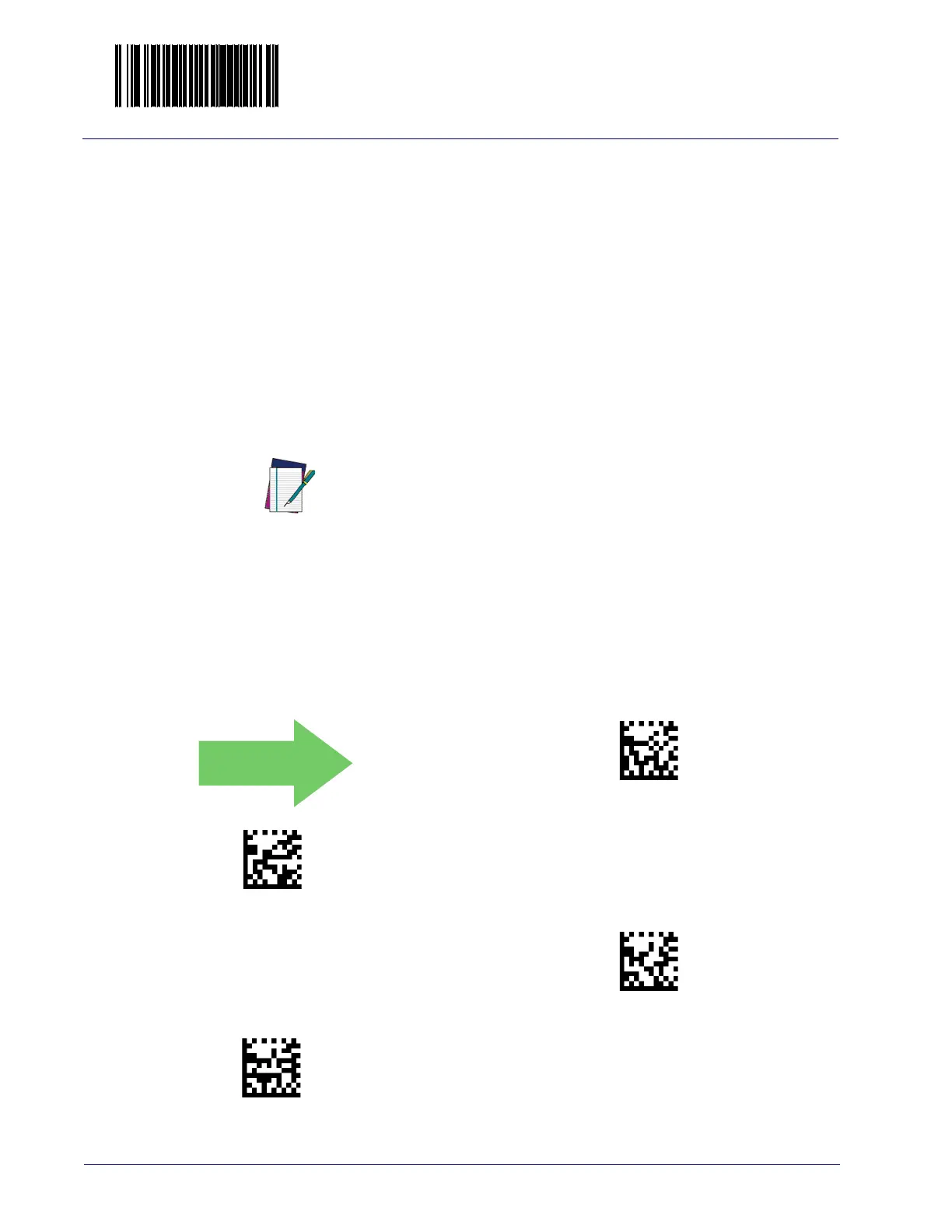

Scale Interface Settings = default
Scale Interface Settings = even, 8, 1
Scale Interface Settings = odd, 8, 1
Scale Interface Settings = N, 8, 1
DEFAULT
041400(CR)
041401(CR)
041402(CR)
041403(CR)

Datalogic Magellan 9300i Specifications

General

Input voltage	100 - 240 V
Input frequency	50 - 60 Hz
Power source type	AC
Power consumption (standby)	11 W
Type	Built-in bar code reader
Sensor type	-
Scanner type	1D/2D
Light levels (direct sunlight)	0 - 86080 lx
Linear (1D) barcodes supported	GS1 DataBar Expanded, GS1 DataBar Omnidirectional, JAN, U.P.C.
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, Micro QR Code, QR Code
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Standard interfaces	RS-232
Connectivity technology	Wired
Product color	Black, Grey
Built-in display	No
Sustainability certificates	RoHS

Weight and Dimensions

Weight	- g
