58 Magellan™ 9300i / 9400i Scanners
Vertical Scan Window Replacement
The Vertical Scan Window installed in the weigh Platter is replaceable. Follow
these instructions to remove and replace a Vertical Window:
To remove a Vertical Scan Window:

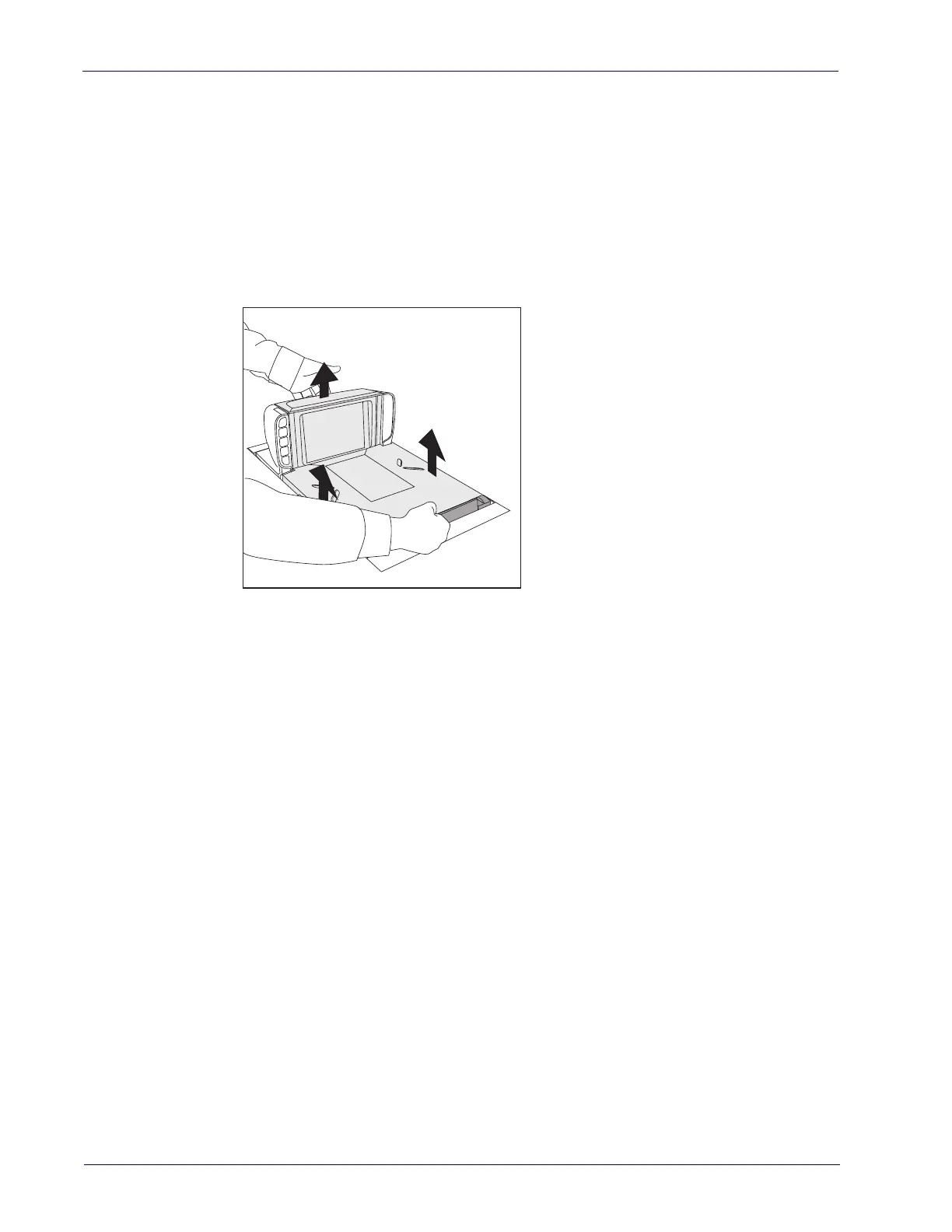

1. Handling by the features shown, remove the Platter as referenced in Figure 32
and gently lift it straight up and off of the scanner. If the top edge of the Platter
is blocked, you may find it easier to grip the edges of the Platter as shown by the
arrows.
Figure 32. Platter Removal
2. Grasp the front corner of the Platter’s top bezel as shown in Figure 33a,
then guide it away from the Platter as demonstrated in Figure 33b, making
sure the lip of the bezel is fully clear of the Platter’s top edge before lifting
it off.
3. Carefully press in on the Vertical Window from the backside of the Platter to
remove it (see
Figure 33 c and Figure 33 d). Carefully dispose of any dam-
aged glass.

Datalogic Magellan 9300i Specifications

General

Input voltage	100 - 240 V
Input frequency	50 - 60 Hz
Power source type	AC
Power consumption (standby)	11 W
Type	Built-in bar code reader
Sensor type	-
Scanner type	1D/2D
Light levels (direct sunlight)	0 - 86080 lx
Linear (1D) barcodes supported	GS1 DataBar Expanded, GS1 DataBar Omnidirectional, JAN, U.P.C.
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, Micro QR Code, QR Code
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Standard interfaces	RS-232
Connectivity technology	Wired
Product color	Black, Grey
Built-in display	No
Sustainability certificates	RoHS

Weight and Dimensions

Weight	- g
