26 Magellan™ 9300i / 9400i Scanners

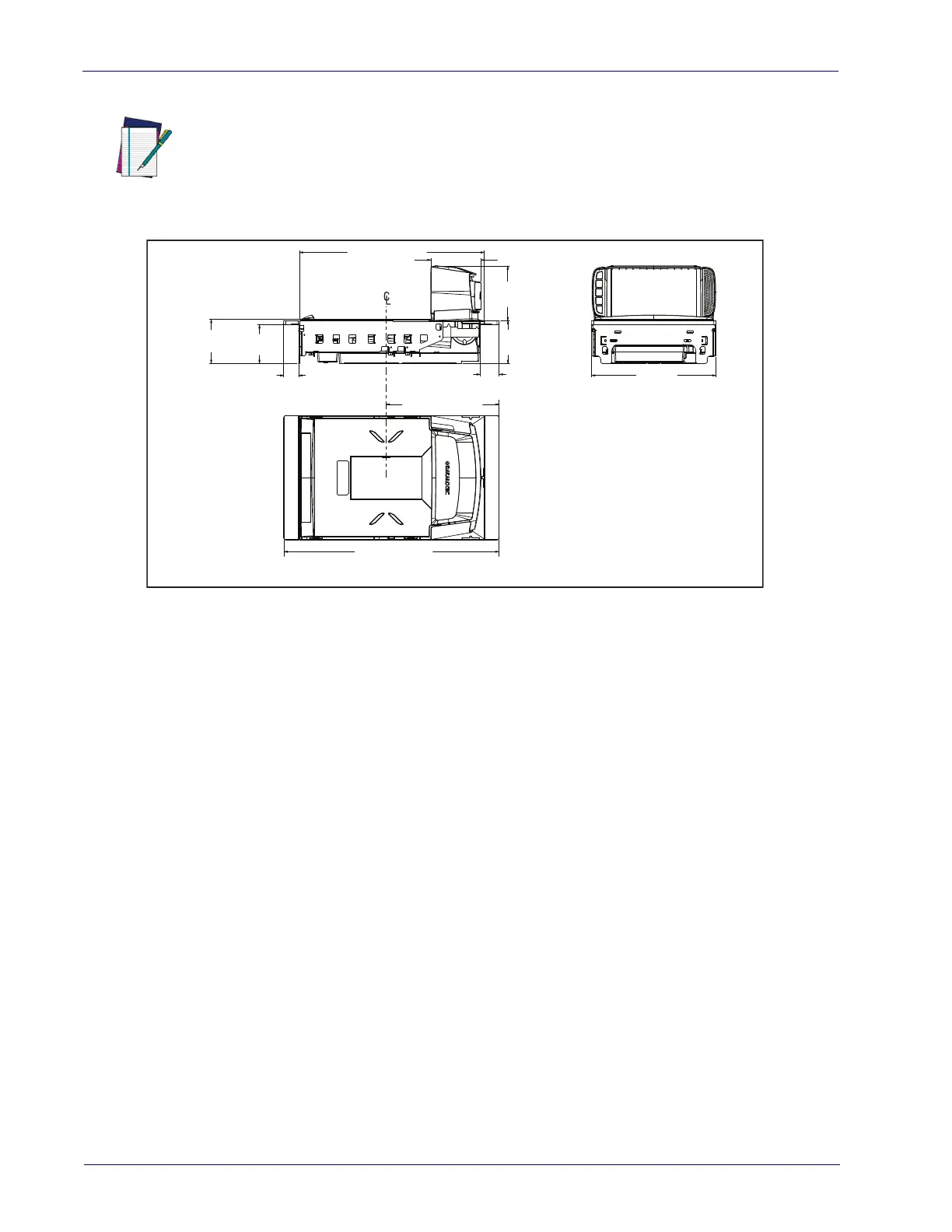

Scanner Dimensions (continued)
NOTE
For reference only - see "Counter Cutout" on page 27 for actual counter cutout
dimensions for your model.
435mm (17.126”)
117.86mm (4.64”)
128.68mm
(5.06”)
100.6mm
(3.96”)
44.7mm
(1.76”)
34.9mm (1.37”)
265.01mm (10.43”)
505.8mm (19.913”)
103.6mm
(4.08”)
90.8mm
(3.57”)
292.1mm
(11.5”)
Window
LONG (FLANGE MT)
Models 939405 and 939406
FOR REFERENCE ONLY
