Enter/Exit Programming Mode Interface Related Features

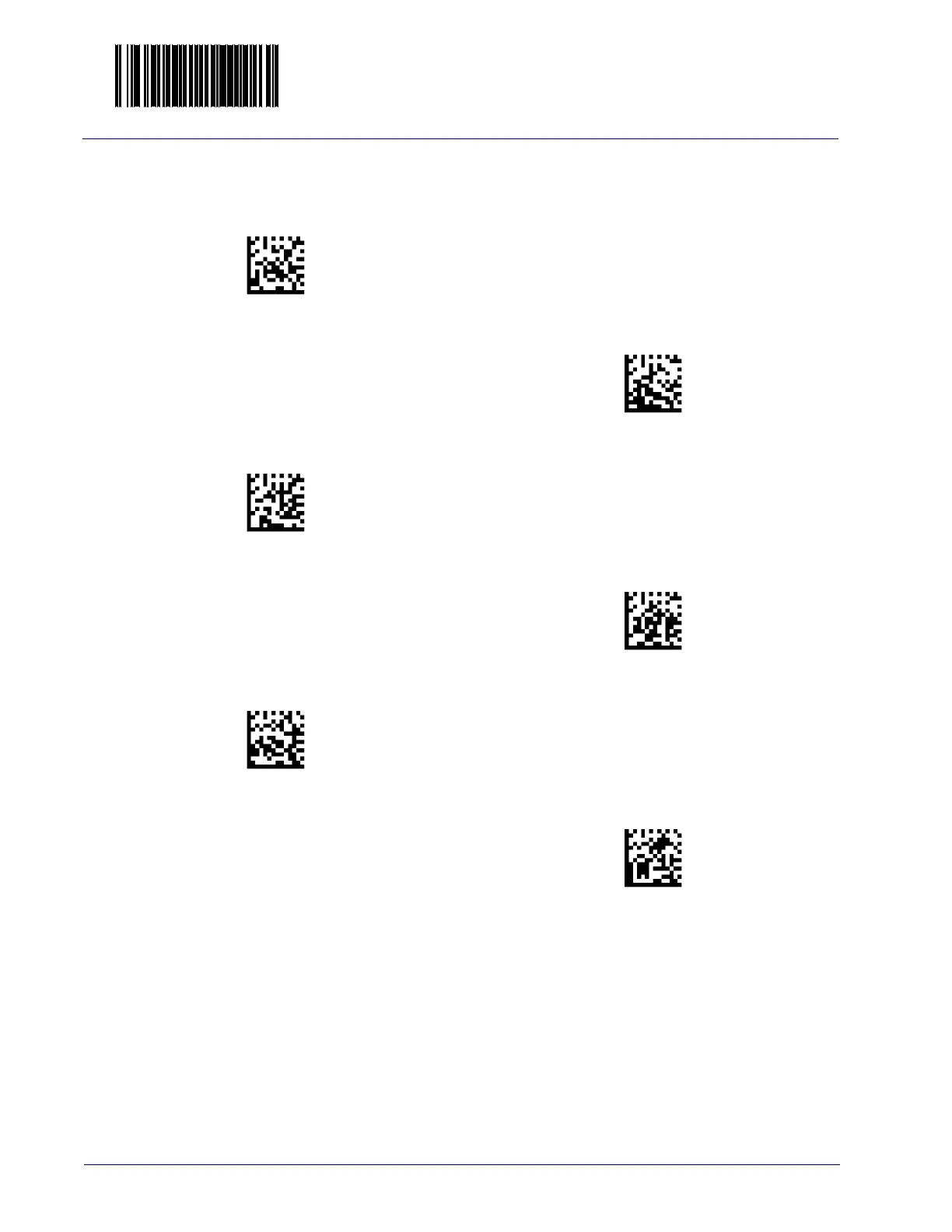

222 Magellan™ 9300i / 9400i Scanners

RS-232 Baud Rate (continued)

RS-232 Baud Rate = 38400

RS-232 Baud Rate = 57600

RS-232 Baud Rate = 115200

RS-232 Baud Rate = 230400

RS-232 Baud Rate = 460800

RS-232 Baud Rate = 921600

001D06(CR)

001D07(CR)

001D08(CR)

001D09(CR)

001D0A(CR)

001D0B(CR)

Default Chapter3
- Table of Contents3
Chapter 1 Introduction13
- Manual Overview13
  - How to Use this Manual14
- Scanner Features15
  - Connectors and Ports16
- To Checkpoint® or Nedap® EAS System16
- To Sensormatic® EAS System16
- Physical Parameters18
- Electrical Specifications21
  - Power Supply21
  - Safety Precautions22
- Labeling23
- Agency Compliances24
- Bar Codes Supported26
  - 1D Symbologies26
- References26
- Technical Support27
Chapter 2. SITE PREPARATION and INSTALLATION29
- SECTION I. Pre-Installation Considerations29
- Ergonomic Recommendations30
- SECTION II. Checkstand Preparation39
  - Counter Cutout39
- SECTION III. Installation44
  - Overview44
- Optional Remote Scale Display57
  - Placement/Installation57
Chapter 3. OPERATION and MAINTENANCE61
- Scanning Items61
  - Proper Weighing Technique (Scale Models)62
  - Deactivating Security Labels63
- Operational Controls65
- Operational Modes65
  - Power-Up/Selftest & Pre-Operation65
  - Operating Mode66
- Additional Functions67
- Operational Maintenance69
  - Cleaning69
  - Vertical Scan Window Replacement70
Chapter 4. IMAGE CAPTURE and CUSTOMER SERVICE SCANNER73
- Image Capture Feature73
- Optional CSS Feature74
  - Enable/Disable CSS74
Chapter 5. PROBLEM ISOLATION75
- Power-Up Selftest75
- Diagnostic Procedures76
- Error Codes76
- Scale Error Reporting79
- Flowcharts80
Chapter 6. CALIBRATION PROCEDURES87
- Description of Calibration Sequence88
- Motion Test88
- Automatic Zero Setting Test89
- Preparing the Scanner/Scale for Calibration89
- Calibrating the Scale (Pounds & Kilograms)90
- Calibration Verification (Pounds)93
- Calibration Verification (Kilograms)98
Chapter 7. PROGRAMMING105
- Introduction to Label Programming105
- Understanding the Basics105
- Integrating the Scanner with Your Host System107
  - Customizing Your Scanner's Operation107
  - Programming Overview108
- Imaging and Css Features115
  - Imaging Features116
  - CSS Features134
    - Image Capture / CSS Button134
    - CSS Beep Control135
- General Scanner and Scale Features137
- Scale Zero Button and Scale Indicator LED165
- Scale Sentry166
- Scale Enable173
- Remote Display - Enable/Disable188
- Auxiliary Port Mode189
- Auxiliary USB Mode190
- USB Device Port Location191
- Productivity Index Reporting (PIR) / Cashier Training (CT)192
  - PIR/CT Auxiliary Port Baud Rate193
- Host Download to Handheld195
  - Handheld Host Download Timeout195
Eas Features197
- EAS Features - Sensormatic198
- EAS Features - Checkpoint212
  - ERI Active State212
  - ERI Timeout213
Interface Related Features215
- Interface Type217
- Maximum Host-Transmitted Message Length223
- IBM Features224
SINGLE CABLE RS-232 OPTIONS Starting255
- Single Cable RS-232 Scanner Only Protocol256
- Single Cable RS-232 RTS CTS Selection257
- Single Cable RS-232 Use BCC259
- Single Cable RS-232 Use ACK/NAK260
- Single Cable RS-232 Use STX261
- Set Single Cable RS-232 STX Character262
- Single Cable RS-232 Use ETX263
- Set Single Cable RS-232 ETX Character264
- Single Cable RS-232 Datalogic Extensions265
- Single Cable RS-232 Pacesetter Plus266
- USB Keyboard and Keyboard Wedge Features267
- Data Editing277
1D Symbology Programming293
- 1D Symbologies293
- Coupon Control294
  - Coupon Control Enable294
  - Coupon Label Priority Timer295
- Upc-A296
  - UPC-A Enable296
  - UPC-A Number System Character Transmission297
  - UPC-A Check Character Transmission298
  - UPC-A Minimum Read299
  - Expand UPC-A to EAN-13300
- Upc-E301
  - UPC-E Enable301
  - UPC-E Number System Character Transmission302
  - UPC-E Check Character Transmission303
  - Expand UPC-E to UPC-A304
  - Expand UPC-E to EAN-13305
  - UPC-E Minimum Read306
- 295307
  - EAN-13 Enable307
  - EAN-13 First Character Transmission308
  - EAN-13 Check Character Transmission309
  - EAN-13 ISBN Conversion Enable310
  - EAN-13 Minimum Read311
- 300312
  - EAN-8 Enable312
  - EAN-8 Check Character Transmission313
  - Expand EAN-8 to EAN-13314
  - EAN-8 Minimum Read315
  - EAN-8 Guard Insertion316
  - EAN-8 Guard Substitution317
  - EAN-8/Jan-8 both Guards Substitution318
  - EAN-8 Stitch Exact Label Halves319
  - EAN-8 Stitch Unlike Label Halves320
  - EAN-8 Minimum Segment Length321
  - EAN-8 Decoding Levels323
- Other UPC/EAN Options324
  - In-Store Printed Label Minimum Read325
  - UPC/EAN Correlation326
  - UPC/EAN Guard Insertion327
  - UPC/EAN Stitch Exact Label Halves328
  - UPC/EAN Stitch Unlike Label Halves329
  - UPC/EAN Minimum Segment Length330
  - Price Weight Check332
  - Enable EAN Two Label334
  - EAN Two Label Minimum Read335
  - EAN Two Label Combined Transmission336
  - Addons337
- Gtin344
  - GTIN Enable344
- GS1 Databar345
- Databar Omnidirectional345
  - Databar Omnidirectional Enable345
  - Databar Omnidirectional/Ean-128 Emulation346
  - Databar Omnidirectional 2D Component Enable347
  - Databar Omnidirectional Minimum Read348
  - Databar Omnidirectional Double Read Timeout349
- Databar Limited350
  - Databar Limited Enable350
  - Databar Limited Minimum Read351
  - Databar Limited 2D Component Enable352
  - Databar Limited EAN128 Emulation Enable353
- Databar Expanded354
  - Databar Expanded Enable354
  - Databar Expanded EAN-128 Emulation355
  - Databar Expanded 2D Component Enable356
  - Databar Expanded Minimum Read357
  - Databar Expanded Length Control358
  - Databar Expanded Length 1359
  - Databar Expanded Length 2360
  - Databar Expanded Reverse Retry361
- Code 39362
  - Code 39 Enable362
  - Code 39 Start Stop Character Transmission363
  - Code 39 Check Character Calculation364
  - Code 39 Check Character Transmission365
  - Code 39 Full ASCII366
  - Code 39 Minimum Read367
  - Code 39 Correlation368
  - Code 39 Length Control369
  - Code 39 Length 1370
  - Code 39 Length 2371
  - Code 39 Stitching372
  - Code 39 Require Margins373
- Code 32 Italian Pharmacode374
  - Code 32 Italian Pharmacode Enable374
  - Code 32 Start Stop Character Transmission375
  - Code 32 Check Character Transmission376
- Code 128377
  - Code 128 Enable377
  - Code 128 Transmit Function Characters378
  - Expand Code128 to Code 39379
  - Code 128 Minimum Read380
  - Code 128 Correlation381
  - Code 128 Length Control382
  - Code 128 Length 1383
  - Code 128 Length 2384
  - Code 128 Stitching385
- 374386
  - EAN-128 Enable386
- Interleaved 2 of 5 (I 2 of 5)387
  - Interleaved 2 of 5 (I 2 of 5) Enable387
  - I 2 of 5 Check Character Calculation388
  - I 2 of 5 Check Character Transmission389
  - I 2 of 5 Minimum Read390
  - I 2 of 5 Correlation391
  - I 2 of 5 Length Control392
  - I 2 of 5 Length 1393
  - I 2 of 5 Length 2394
  - I 2 of 5 Stitching395
- Codabar396
  - Codabar Enable396
  - Codabar Start Stop Character Transmission397
  - Codabar Start Stop Character Set398
  - Codabar Start Stop Character Match399
  - Codabar Check Character Calculation400
  - Codabar Check Character Transmission401
  - Codabar Minimum Read402
  - Codabar Correlation403
  - Codabar Length Control404
  - Codabar Length 1405
  - Codabar Length 2406
  - Codabar Stitching407
  - Codabar Require Margins408
- Code 93409
  - Code 93 Enable409
  - Code 93 Minimum Read410
  - Code 93 Correlation411
  - Code 93 Length Control412
  - Code 93 Length 1413
  - Code 93 Length 2414
  - Code 93 Stitching415
- Msi416
  - MSI Enable416
  - MSI Check Character Calculation417
  - MSI Number of Check Characters418
  - MSI Check Character Transmission419
  - MSI Minimum Read420
  - MSI Correlation421
  - MSI Length Control422
  - MSI Length 1423
  - MSI Length 2424
  - MSI Stitching425
- Standard 2 of 5426
  - Standard 2 of 5 Enable426
  - Standard 2 of 5 Check Character Calculation427
  - Standard 2 of 5 Check Character Transmission428
  - Standard 2 of 5 Minimum Read429
  - Standard 2 of 5 Correlation430
  - Standard 2 of 5 Length Control431
  - Standard 2 of 5 Length 1432
  - Standard 2 of 5 Length 2433
  - Standard 2 of 5 Stitching434
2D Symbology Programming435
- 2D Symbologies435
- Data Matrix436
- Pdf 417440
- Micro PDF 417444
- QR Code448
- GS1 QR Code Enable452
- Micro QR Code453
  - Micro QR Code Enable453
  - Micro QR Code Length Control454
- Aztec Code456
  - Aztec Enable456
  - Aztec Length Control457
Appendix A. LED/AUDIO INDICATIONS & CONTROLS459
- Good Read Indicator459
- Controls and Indicators460
Appendix B Cable Information469
- Introduction469
  - General Specifications469
- External Cable Pinouts470
Appendix C. KEYPAD473
Appendix D. MICROSD CARD475
- Microsdhc Compatibility475
- Microsd Card Insertion475
  - Microsd Card Removal476
- Autorun File Processing477
- Microsd Function Summary477
- Microsd Function Details478
  - From Scanner to Microsd Card478
  - From Microsd Card to Scanner479
Appendix E Host Commands481
- Accepting Commands from an RS-232 Scanner Host481
Appendix F. FACTORY DEFAULTS483
Appendix G. HANDHELD DATA FORMAT REQUIREMENTS507
Handheld Data Format Requirements General507
- Datalogic Handheld Data Format Requirements508
- AIM Formats512
