Deactivator LED
The tri-color Deactivator LED designates EAS deactivation status. The table also
provides information about special beeper indications which can be sounded in
response to changes in deactivation status.

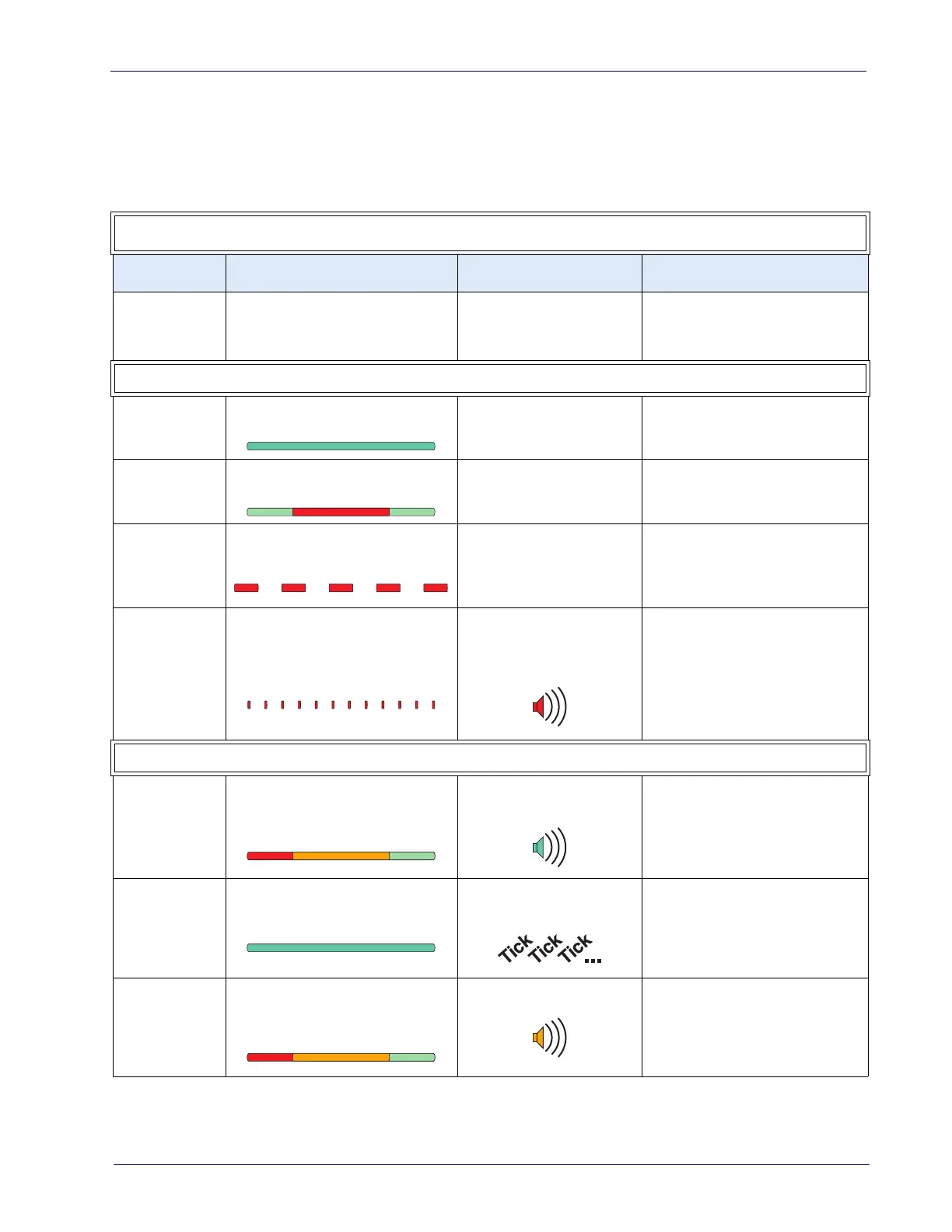

Table 3. EAS Indications
EAS DEACTIVATION DISABLED
INDICATION LED DURATION EAS BEEPER COMMENT
Deactivation 
Disabled
Deactivation (Tri-color) LED is
OFF
OFF
Deactivation mode must be
selected via programming. Ref
-
erence EAS Mode .
ALL MODES (COUPLED, DECOUPLED, HYBRID or HOST)
Deactivation
Ready
Deactivation (Tri-color) LED is lit
steadily Green.
OFF Deactivation is ready.
EAS tag
Detected
Deactivation (Tri-color) LED
flashes Red.
OFF
An EAS tag has been sensed in
the scan volume.
Power-up 
Initialization
Deactivation (Tri-color) LED
a
blinks ON/OFF Red.
OFF
System is attempting to initial-
ize EAS
EAS Error
Deactivation (Tri-color) LED
flashes Red while FRU Status
LED flashes error code nine (9)
.
Low frequency beep (1
second)
EAS system is not on line.
COUPLED MODE ONLY
Deactivation
Indicated
Deactivation (Tri-color) LED
flashes Red, then Orange, then
returns to Green.
Good read beep follows
deactivation.
The EAS antenna has been trig-
gered ON to deactivate a label
following successful bar code
read.
Manual 
Deactivation
in Progress
Deactivation (Tri-color) LED is lit
steadily Green.
Ticking sound (for config-
urable duration)
The Manual EAS Deactivation
Push Button was pressed &
released
b
.
Manual 
Deactivation
Successful
Deactivation (Tri-color) LED
flashes Red, then Orange, then
returns to Green.
High frequency beep
An EAS tag was successfully
deactivated via manual push
button.
