Optional Remote Scale Display

Product Reference Guide

47

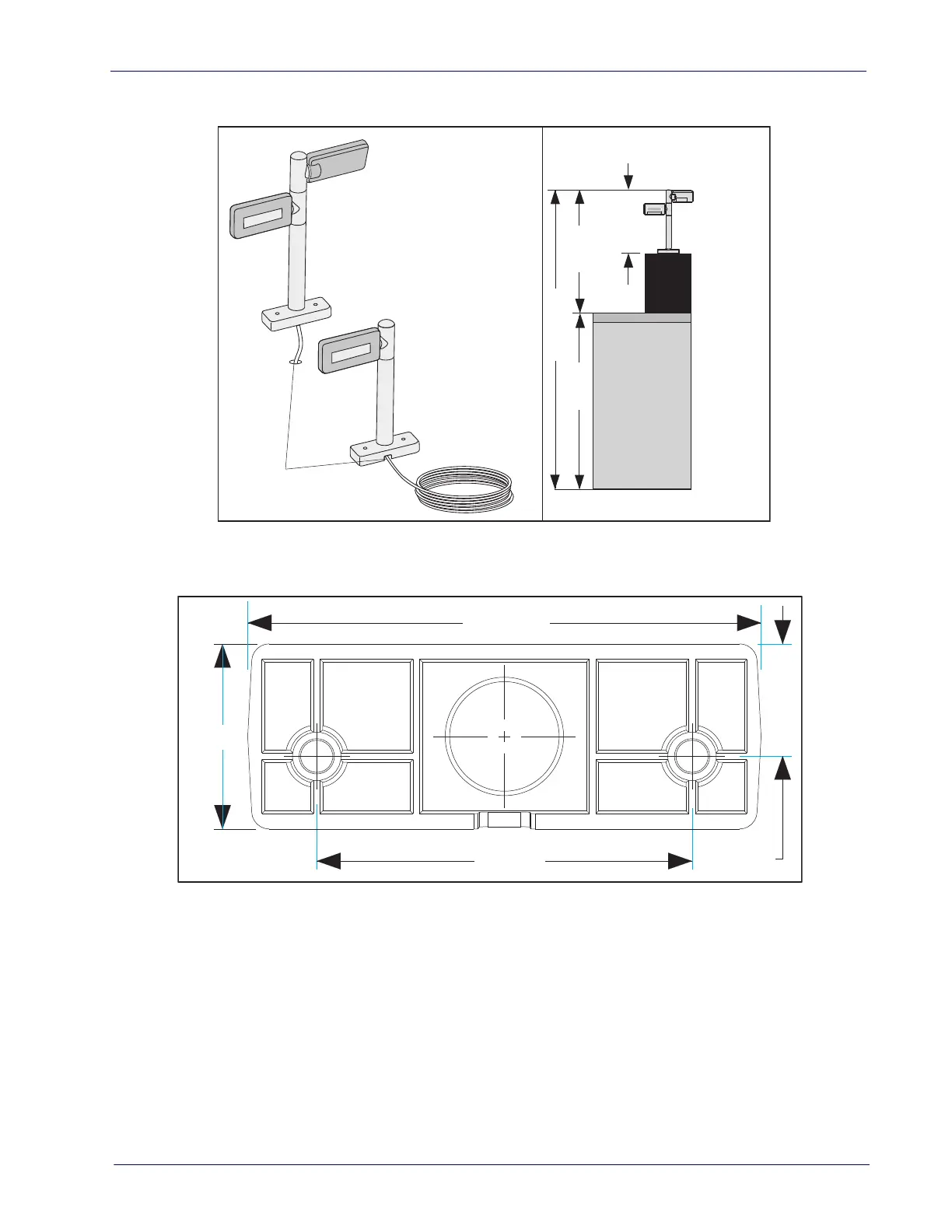

Figure 27. Remote Scale Display Mounting

Figure 28. Remote Scale Display Mounting Template

48 - 60"

(122 - 152cm)

36"

(91cm)

11.5"

(29cm)

24"

(61cm)

Mounting

Example

(optional

cable

routing)

Dual Display

Heads

Single

Display

Head

25.5mm

85.1mm

116.39mm

41.99mm
