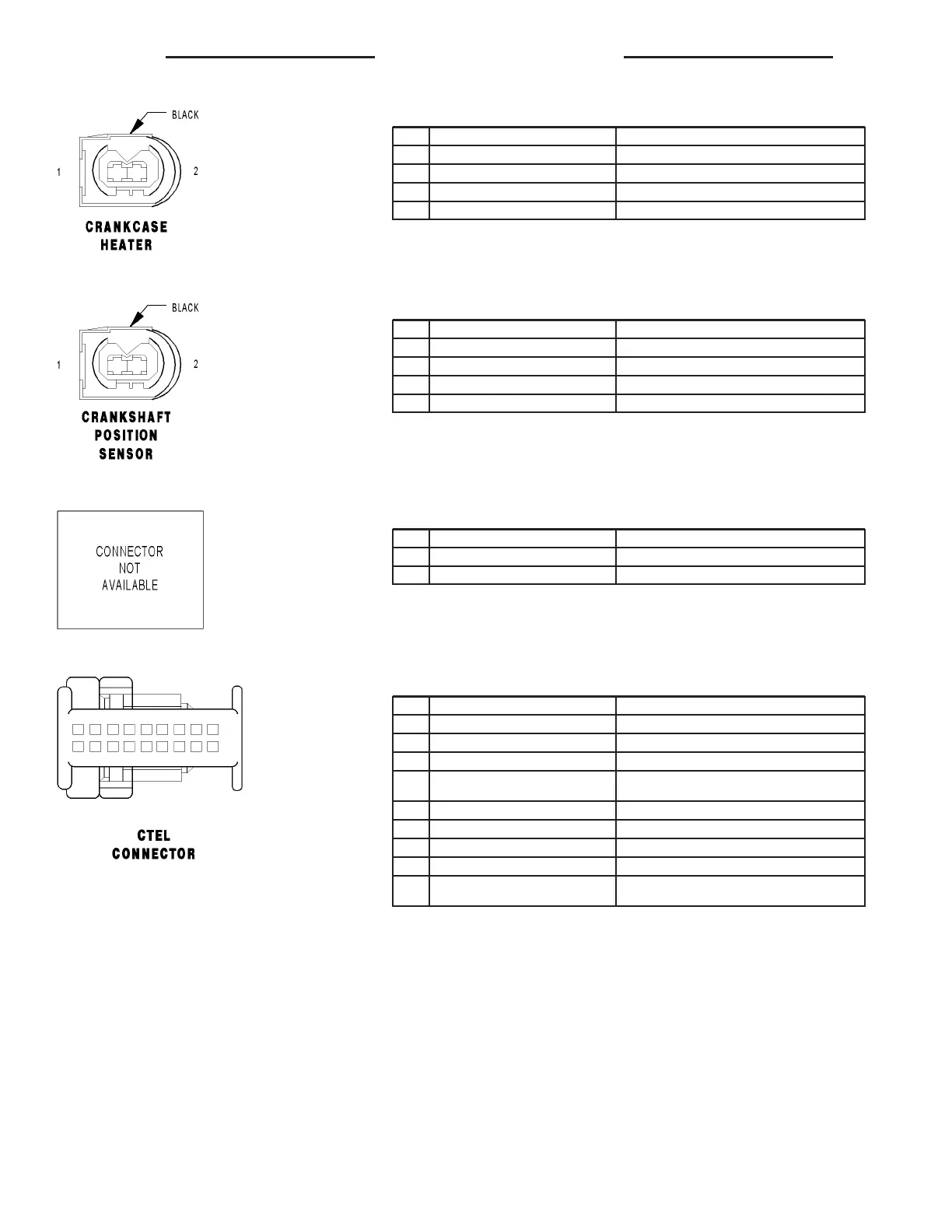

CRANKCASE HEATER - BLACK

CAV CIRCUIT FUNCTION

1 18BR (EXCEPT OBD) GROUND

1 18BK/RD (OBD) CRANKCASE HEATER SIGNAL

2 16BK/RD (EXCEPT OBD) FUSED ENGINE CONTROL RELAY OUTPUT

2 18BK/BR (OBD) CRANKCASE HEATER GROUND

CRANKSHAFT POSITION SENSOR - BLACK

CAV CIRCUIT FUNCTION

1 20DG (EXCEPT OBD) CRANKSHAFT POSITION SENSOR SIGNAL NO. 2

1 20DG/WT (OBD) CRANKSHAFT POSITION SENSOR SIGNAL NO. 1

2 20DG/WT (EXCEPT OBD) CRANKSHAFT POSITION SENSOR SIGNAL NO. 1

2 20DG (OBD) CRANKSHAFT POSITION SENSOR SIGNAL NO. 2

CTEL ANTENNA CONNECTOR

CAV CIRCUIT FUNCTION

1 16BK CELLULAR ANTENNA W/SHIELD

2 - SHIELD

CTEL CONNECTOR

CAV CIRCUIT FUNCTION

118BR GROUND

4 16DG/YL/BK RADIO MUTE

7 18BL/DG SPEAKER-LEFT FRONT (-) CTEL

9 10BR CTEL CONNECTOR CAV 9 TO MICROPHONE CON-

NECTOR CAV 1

10 18BK/BL FUSED OPTIONAL EQUIPMENT RELAY OUTPUT

11 18RD/BK/WT FUSED B(+)

12 18BK/BL FUSED OPTIONAL EQUIPMENT RELAY OUTPUT

16 18BK/YL SPEAKER-LEFT FRONT (+) CTEL

18 10BL CTEL CONNECTOR CAV 18 TO MICROPHONE CON-

NECTOR

8W - 80 - 34 8W-80 CONNECTOR PIN-OUTS VA
