Dodge Sprinter 2006 - Seat Belt Tensioner-Driver - Yellow

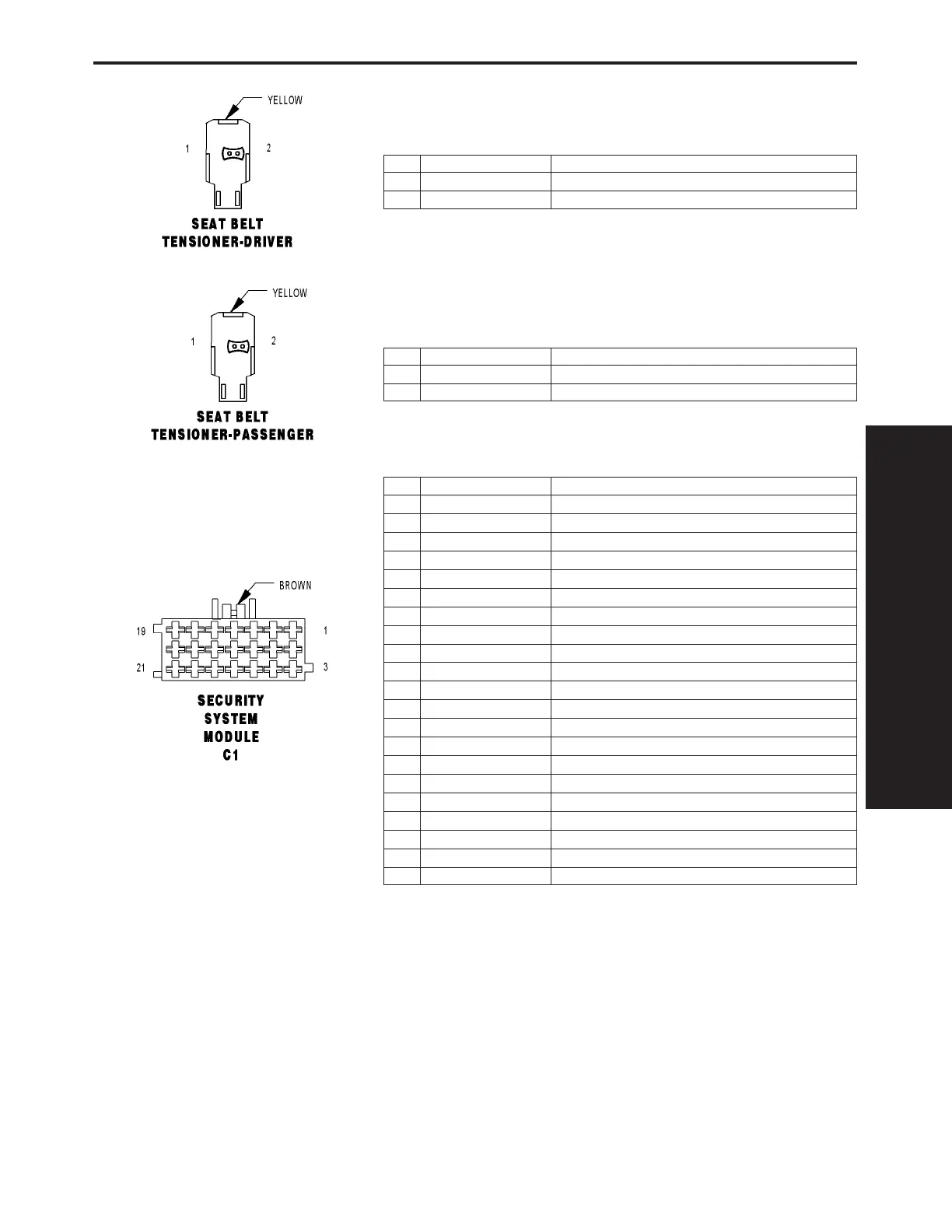

SEAT BELT TENSIONER-DRIVER - YELLOW
CAV CIRCUIT FUNCTION
1 20BL DRIVER SEAT BELT TENSIONER LINE 2
2 20BR/YL DRIVER SEAT BELT TENSIONER LINE 1
SEAT BELT TENSIONER-PASSENGER - YELLOW
CAV CIRCUIT FUNCTION
1 20BL PASSENGER SEAT BELT TENSIONER LINE 2
2 20BR PASSENGER SEAT BELT TENSIONER LINE 1
SECURITY SYSTEM MODULE C1 - BROWN
CAV CIRCUIT FUNCTION
1 16BK/WT LEFT TURN SIGNAL
2- -
3- -
4 16BK/DG RIGHT TURN SIGNAL
5 16BK/VT FAN STAGE 1 RELAY
6 16WT/RD WARM AIR AUXILIARY HEATER CONTROL
7 16RD/GY FUSED B(+)
8 16BK/GY FUSED OPTIONAL EQUIPMENT RELAY OUTPUT
9 18VT/DG TOWING/INTRUSION SENSOR INDICATOR DRIVER
10 - -
11 16BR/YL FRONT COURTESY LAMPS CONTROL
12 16BR/WT DOOR AJAR SWITCH SENSE
13 16RD/DG FUSED B(+)
14 16BK/BL HOOD AJAR SWITCH SENSE
15 18GY/WT PANIC SWITCH SENSE
16 16B R GR OU N D
17 18GY/BR TOWING SENSOR SWITCH SENSE
18 18GY/YL INTRUSION SENSOR SWITCH SENSE
19 - -
20 16BK DRIVER CYLINDER UNLOCK SENSE
21 16RD DRIVER CYLINDER LOCK SENSE
