SEAT S
TABLE OF CONTENTS
page page
ARMREST
REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . 79
HEADREST
REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . 79
SEAT - FRONT
REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . 80
SEAT BACK - FRONT
REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . 80
SEAT CUSHION - FRONT
REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . 81
SEAT ADJUSTERS - FRONT
REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . 81
SEAT - REAR
REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . 82
REAR SEAT BACK SHIELD
REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . 82
SEAT BACK CUSHION/COVER - REAR
REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . 82
SEAT CUSHION/COVER - REAR
REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . 83
ARM REST
REMOVAL
(1) Remove the scr ews and remove the a rmrest
cover.
(2) Remove the thr ee bolt s a nd remove th e arm -
rest from th e seat ba ck.
INSTALLATION
(1) In st all the arm rest and insta ll t he th ree bolts.
(2) In st all th e ar mrest cover a nd in st all th e
scr ews.
HEADREST
REMOVAL
(1) Press th e r elea se bu tton an d remove t he hea d-
rest. (F ig. 1)
INSTALLATION
(1) In sert headrest posts int o sea t ba ck a nd sea t
fully.
SEAT - FRON T
REMOVAL
(1) Disconn ect and isolate battery negative ca ble.
(2) Remove the seat belt anch or bolt.
(3) Remove the seat bolt s.

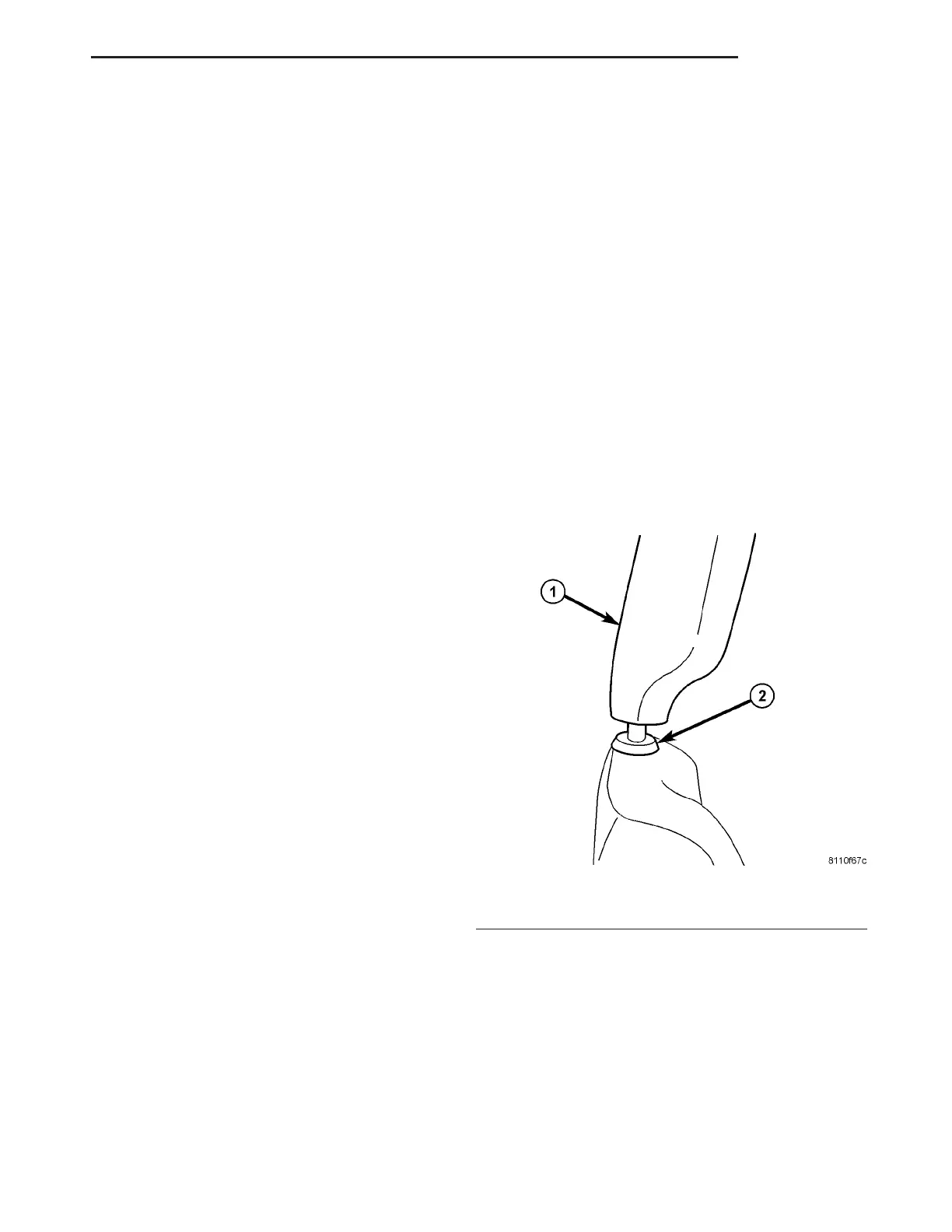

Fig. 1 HEAD REST
1 - HEADREST
2 - RELEASE BUTTON
VA SEA TS 23 - 79
