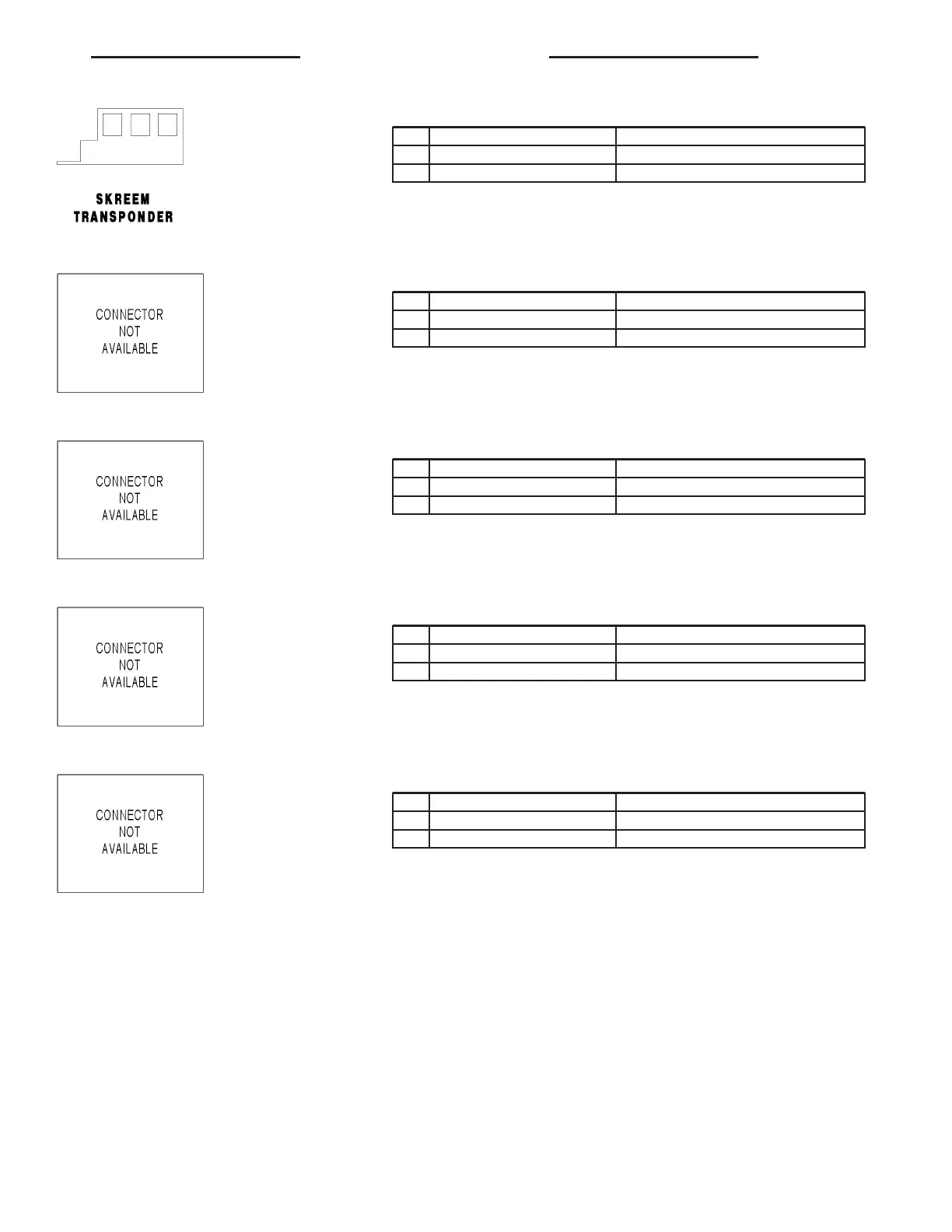

SKREEM TRANSPONDER
CAV CIRCUIT FUNCTION
1 20BR TRANSPONDER COIL (+)
2 - TRANSPONDER COIL (-)
SPEAKER-LEFT FRONT DOOR ASSEMBLY C1
CAV CIRCUIT FUNCTION
1 18BL/YL SPEAKER-LEFT FRONT (+) CTEL
2 18BL/DG SPEAKER-LEFT FRONT (-) CTEL
SPEAKER-LEFT FRONT DOOR ASSEMBLY C2
CAV CIRCUIT FUNCTION
1 18BR/DG SPEAKER-LEFT FRONT (+)
2 18BR SPEAKER-LEFT FRONT (-)
SPEAKER-LEFT REAR
CAV CIRCUIT FUNCTION
1 16BR/BL SPEAKER-LEFT REAR
2 16WT/BL SPEAKER-LEFT REAR
SPEAKER-RIGHT FRONT DOOR
CAV CIRCUIT FUNCTION
1 18BR/RD SPEAKER-RIGHT FRONT (+)
2 18BK SPEAKER-RIGHT FRONT (-)
VA 8W-80 CONNECTOR PIN-OUTS 8W - 80 - 77
