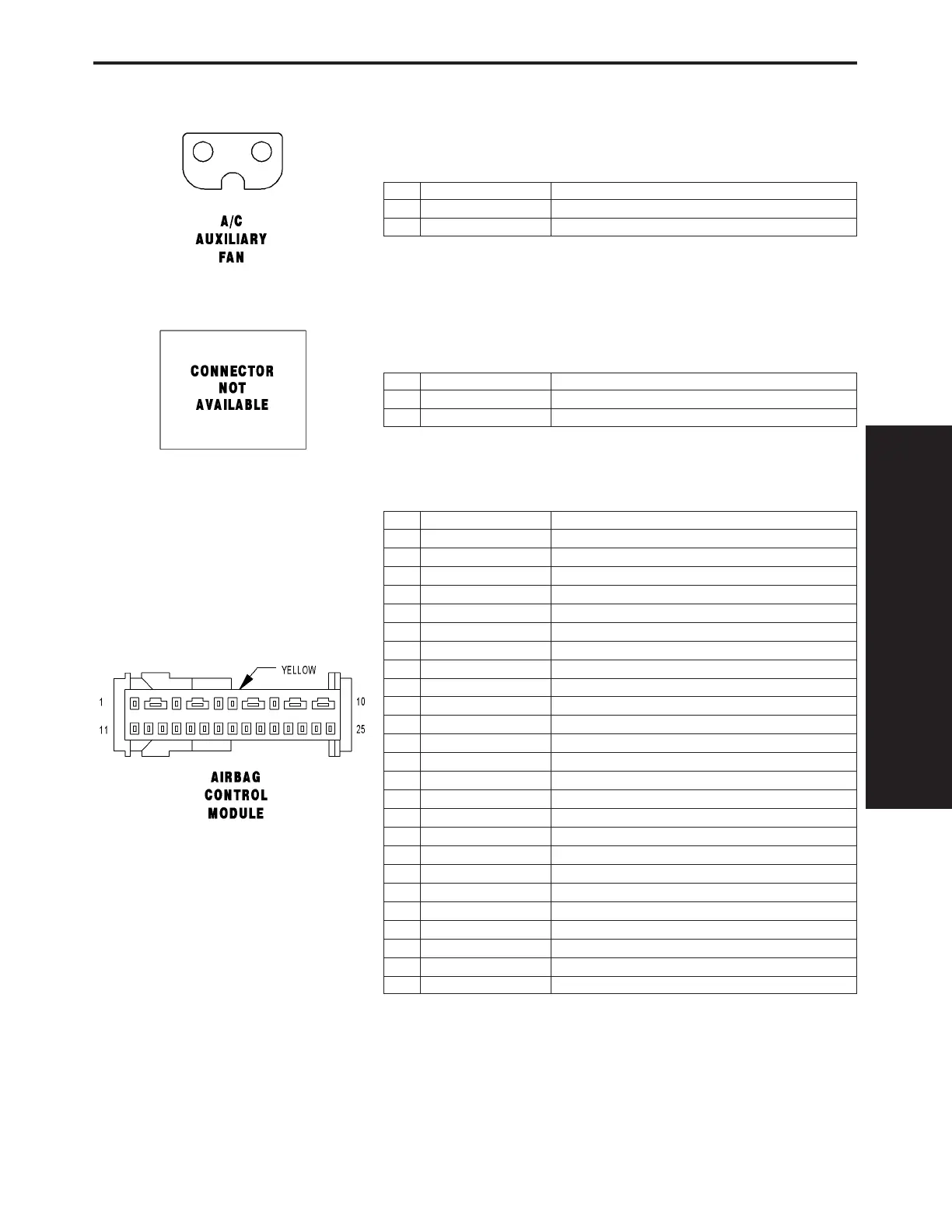

9.0 CONNECTOR PINOUTS

A/C AUXILIARY FAN

CAV CIRCUIT FUNCTION

1 14DG/BK A/C AUXILIARY FAN RELAY OUTPUT

214BR GROUND

AIR OUTLET TEMPERATURE SENSOR

CAV CIRCUIT FUNCTION

1 18BR/GY AIR OUTLET TEMPERATURE SENSOR SIGNAL

2 18BR/BL SENSOR GROUND

AIRBAG CONTROL MODULE - YELLOW

CAV CIRCUIT FUNCTION

1 20BL DRIVER SEAT BELT TENSIONER LINE 2

2 20BR/YL DRIVER SEAT BELT TENSIONER LINE 1

3 20BL PASSENGER SEAT BELT TENSIONER LINE 2

4 20BR PASSENGER SEAT BELT TENSIONER LINE 1

5 20BK FUSED IGNITION SWITCH OUTPUT (RUN-START)

620BR GROUND

7 20YL AIRBAG WARNING INDICATOR DRIVER

8- -

9 20BK/RD K-ACM

10 20DG DRIVER AIRBAG SQUIB 1 LINE 2

11 20VT DRIVER AIRBAG SQUIB 1 LINE 1

12 - -

13 20BL/DG PASSENGER AIRBAG SQUIB 1 LINE 2

14 20BR/DG PASSENGER AIRBAG SQUIB 1 LINE 1

15 - -

16 - -

17 - -

18 - -

19 - -

20 20DG ENHANCED ACCIDENT REPORT DRIVER

21 -

22 -

23 -

24 -

25 -

257

CON N ECT OR PI N OU T S
