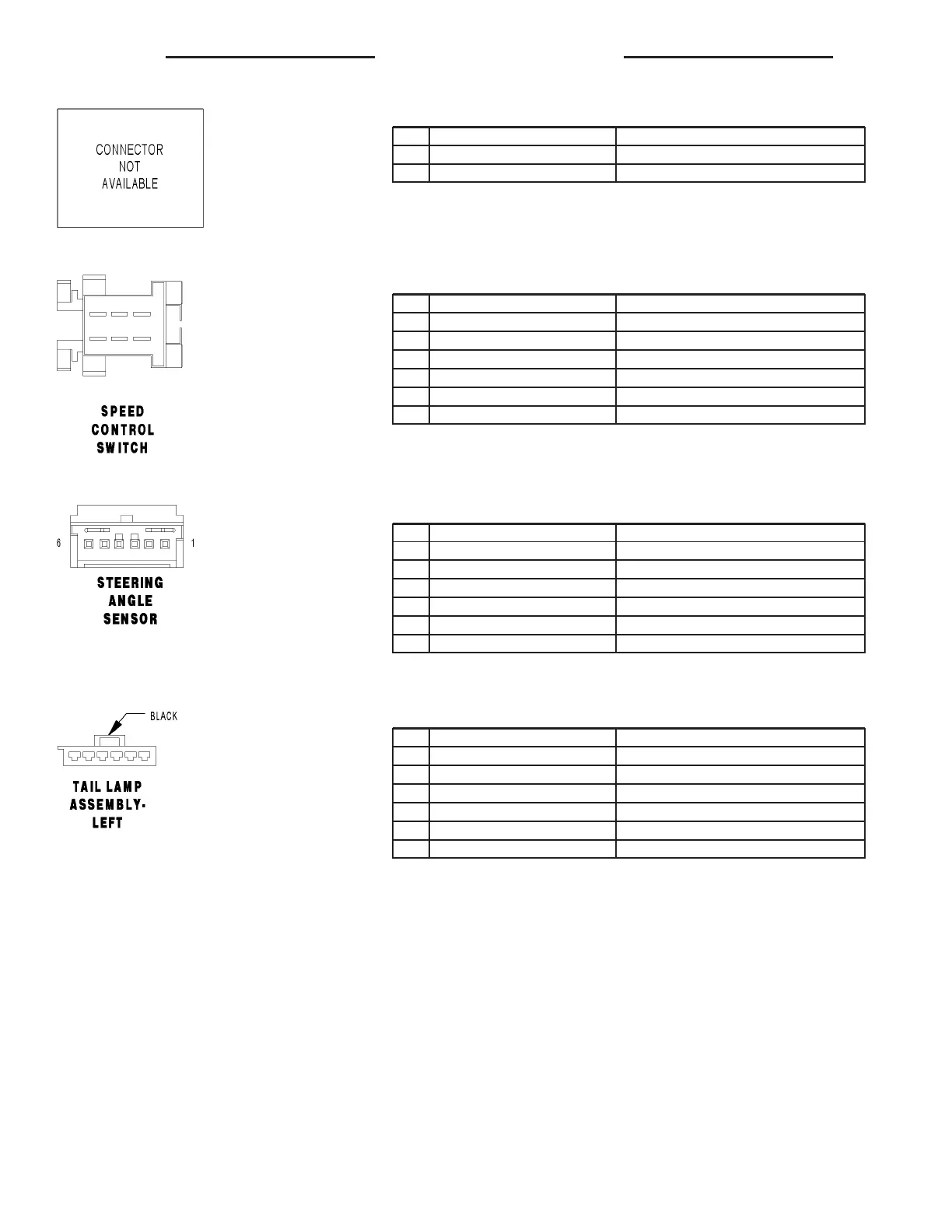

SPEAKER-RIGHT REAR
CAV CIRCUIT FUNCTION
1 16BR/GY SPEAKER-RIGHT REAR
2 16WT/GY SPEAKER-RIGHT REAR
SPEED CONTROL SWITCH
CAV CIRCUIT FUNCTION
1 18GY OFF SIGNAL
2 18BK VERIFICATION SIGNAL
3 18BL RESUME SIGNAL
4 18YL DECEL/SET SIGNAL
5 18DG ACCEL/SET SIGNAL
6 18RD S/C SWITCH 12 VOLT SUPPLY
STEERING ANGLE SENSOR
CAV CIRCUIT FUNCTION
1 20DG/WT CAN C BUS (-)
2- -
3 20DG CAN C BUS (+)
4- -
5 20BK/RD FUSED OPTIONAL EQUIPMENT RELAY OUTPUT
620BR GROUND
TAIL LAMP ASSEMBLY-LEFT - BLACK
CAV CIRCUIT FUNCTION
1- -
2 16GY/BK LEFT LAMP RELAY OUTPUT
3 16BK/RD BRAKE LAMP SWITCH OUTPUT
4 16WT/RD BACK-UP LAMP
5 16BK/WT LEFT TURN SIGNAL
616BR GROUND
8W - 80 - 78 8W-80 CONNECTOR PIN-OUTS VA
