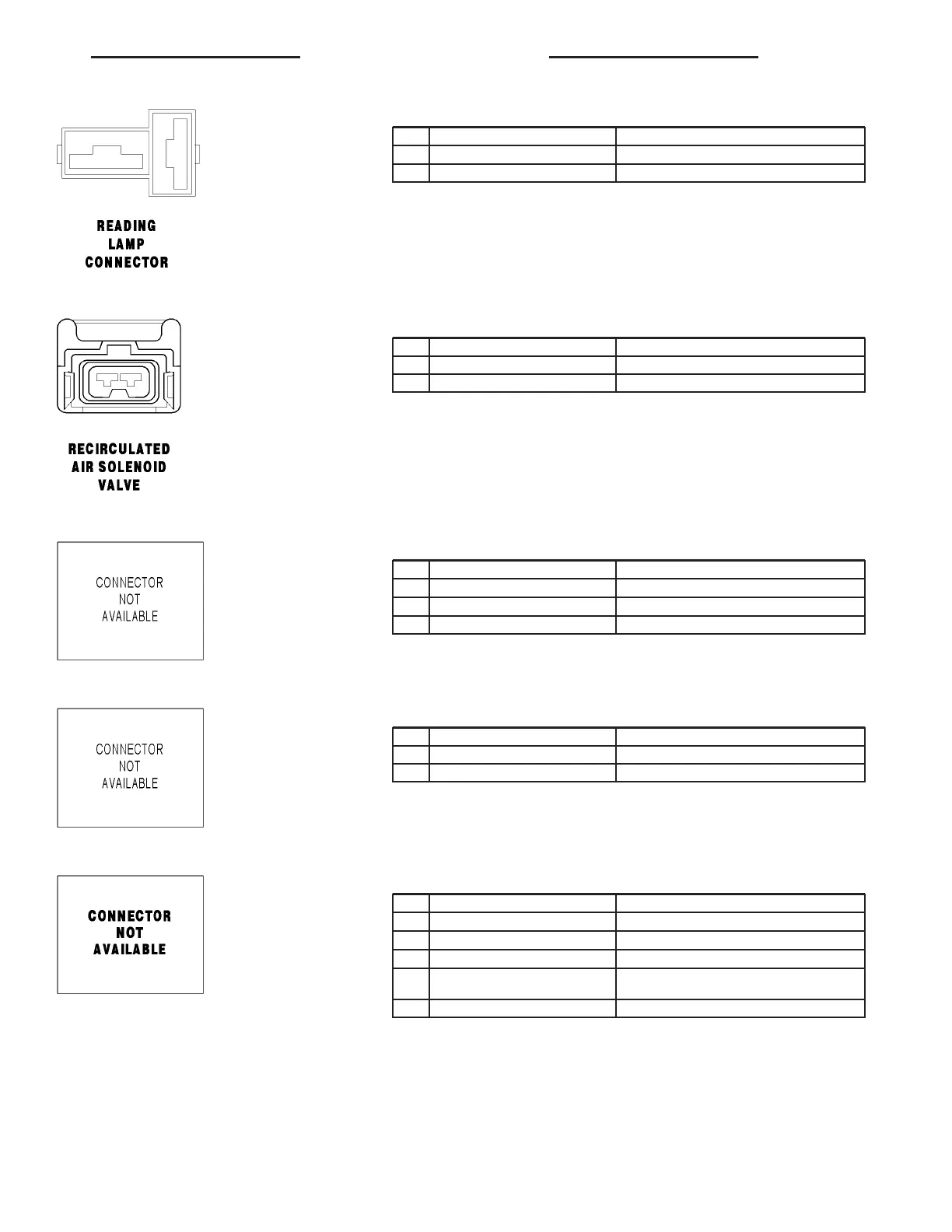

READING LAMP CONNECTOR
CAV CIRCUIT FUNCTION
116BR GROUND
2 16RD/YL MAP/READING LAMP SWITCH OUTPUT
RECIRCULATED AIR SOLENOID VALVE
CAV CIRCUIT FUNCTION
1 16RD RECIRCULATED AIR SOLENOID VALVE CONTROL
216BK GROUND
REFRIGERANT PRESSURE SENSOR
CAV CIRCUIT FUNCTION
1 18BR/BL SENSOR GROUND
2 20BR/RD REFRIGERANT PRESSURE SENSOR FEEDBACK
3 20RD/BL 5 VOLT SUPPLY
REMOTE KEYLESS ENTRY ANTENNA
CAV CIRCUIT FUNCTION
120BR RKEANTENNA
3- GROUND
ROLLOVER SWITCH ASSEMBLY
CAV CIRCUIT FUNCTION
1 14RD FUSED B(+)
214BR GROUND
4 16DG DOSING PUMP CONTROL
6 16BK/BL/DG (EXCEPT PROGRAM TIM-
ER)
FUSED OPTIONAL EQUIPMENT RELAY OUTPUT
6 16BL (PROGRAM TIMER) CABIN HEATER CONTROL
VA 8W-80 CONNECTOR PIN-OUTS 8W - 80 - 71
