(6) Remove engine mounts and raise en gin e.
(7) Disconn ect the oil level sensor.
(8) Remove th e tr ansmission cooler lin es from the
oil pa n bolts and carefully posit ion the lin es aside
(9) Remove the oil pa n bolts.
(10) Remove oil pan and gasket (Fig. 57).

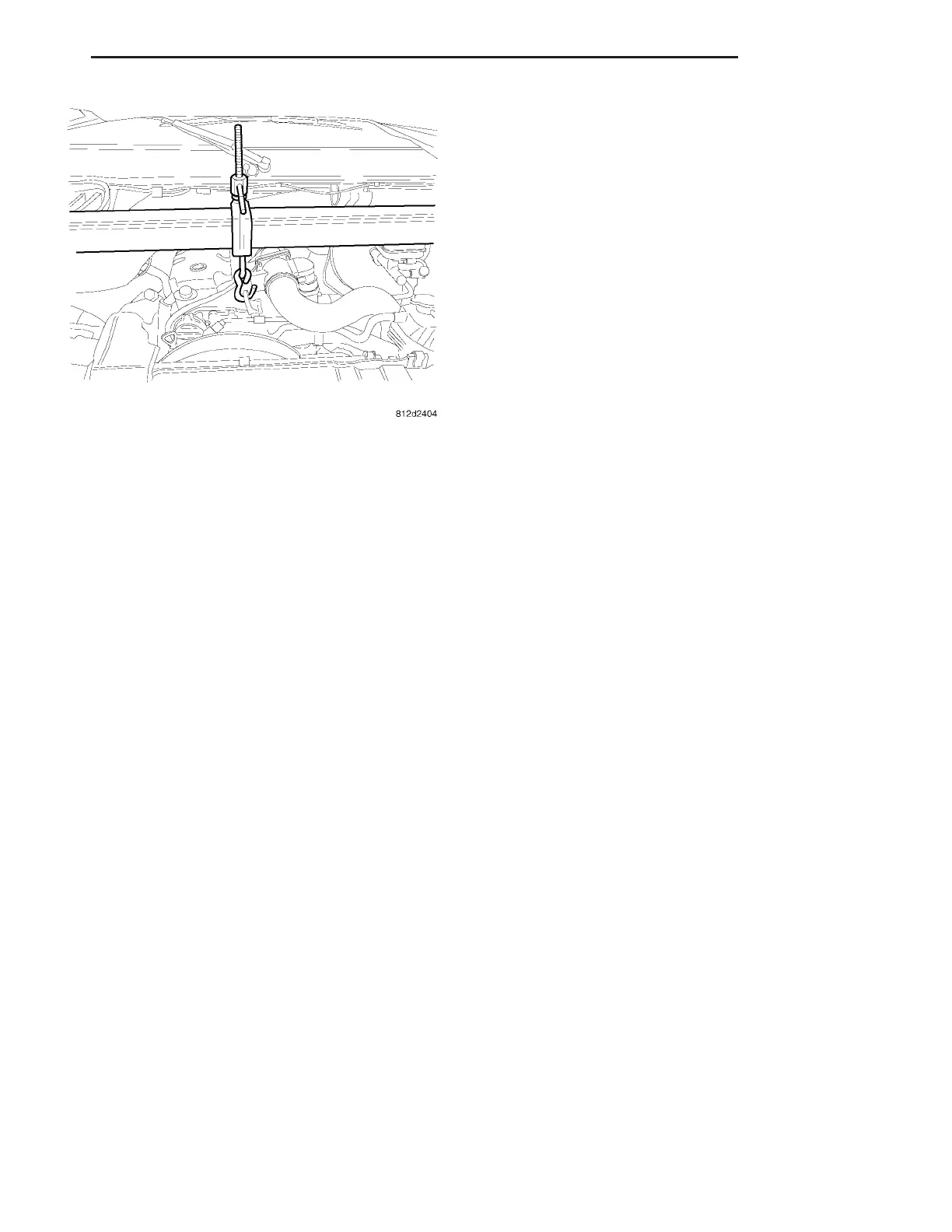

Fig. 56 ENGINE SUPPORT FIXTURE
VA ENGINE 9 - 59
