Torque from the tor que con verter is increased via
the input sh aft (25) a nd the center and rear plane-
tary gear set and tra nsferr ed to th e ou tput shaft (26).
(Fig. 4) (Fig. 5)
Front Planetary Gear Set
The pla neta ry ca rrier (13) and sun gear (21) are
connect ed via the engaged m ultiple-disc clutch K1
(7). Th e pla neta ry gear set is therefor e blocked an d
turns a s a closed u nit at the in pu t speed due to the
mecha nica l connection of th e a nnulus gear (8) and
input sh aft.
Rear Planetary Gear Set
The annulus gear (11) tur ns at the input speed as
a result of t he mecha nica l conn ection to the front
planet ary carrier (13). Th e su n gear (23) is held
aga inst th e housing by t he engaged mu ltiple-disc
holding clu tch B2 (6), by the locked freewheel F2 (24)
du ring acceleration and by the engaged multiple-disc
clutch K3 (12) dur ing decelerat ion. The planet ary
pinion gea rs (19) t urn on t he fixed su n gear (23) and
increase the tor que fr om the ann ulus gear (11) to th e
planet ary car rier (15). The plan etar y car rier (15)
moves at a reduced speed in the r unning direction of
the engine.
Center Planetary Gear Set
The ann ulus gea r (10) is driven at the same speed
as the rear planetary car rier (15) as a r esult of a
mecha nica l connection. The su n g ear (22) is held
aga inst th e housing by the mult iple-disc holding
clutch B2 (6). The planet ary pinion gears (18) t urn
on t he fixed sun gea r (22) and in crease th e t orque

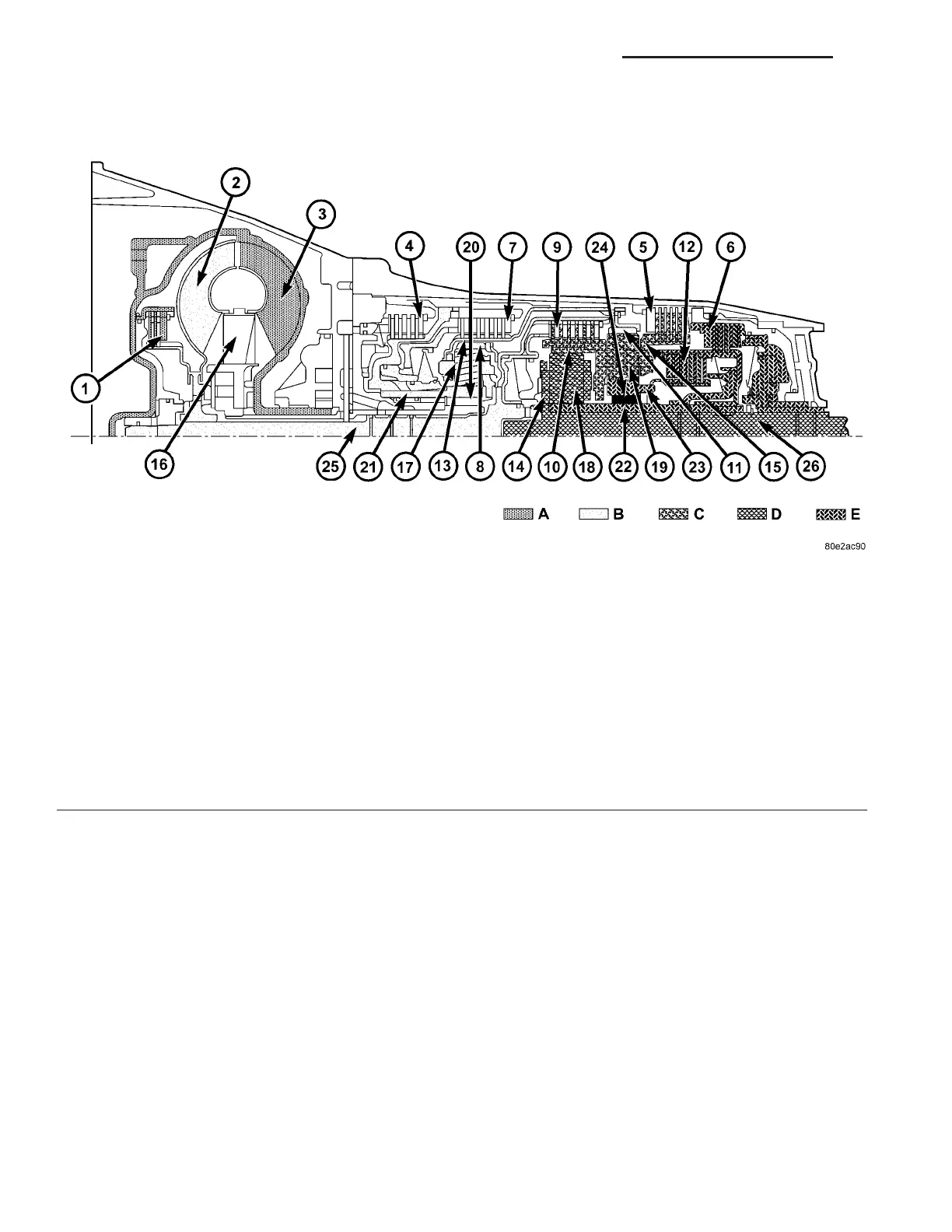

Fig. 5 Second Gear Powerflow
1 - TORQUE CONVERTER LOCK-UP CLUTCH 14 - CENTER PLANETARY CARRIER
2 - TORQUE CONVERTER TURBINE 15 - REAR PLANETARY CARRIER
3 - TORQUE CONVERTER IMPELLER 16 - TORQUE CONVERTER STATOR
4 - HOLDING CLUTCH B1 17 - FRONT PLANETARY PINION GEARS
5 - HOLDING CLUTCH B3 18 - CENTER PLANETARY PINION GEARS
6 - HOLDING CLUTCH B2 19 - REAR PLANETARY PINION GEARS
7 - DRIVING CLUTCH K1 20 - FREEWHEELING CLUTCH F1
8 - FRONT PLANETARY ANNULUS GEAR 21 - FRONT PLANETARY SUN GEAR
9 - DRIVING CLUTCH K2 22 - CENTER PLANETARY SUN GEAR
10 - CENTER PLANETARY ANNULUS GEAR 23 - REAR PLANETARY SUN GEAR
11 - REAR PLANETARY ANNULUS GEAR 24 - FREEWHEELING CLUTCH F2
12 - DRIVING CLUTCH K3 25 - INPUT SHAFT
13 - FRONT PLANETARY CARRIER 26 - OUTPUT SHAFT
A - ENGINE SPEED D - SECOND GEAR RATIO
B - TRANSMISSION INPUT SPEED E - FIXED PARTS
C - FIRST GEAR RATIO
21 - 10 AUTOMATIC TRANSMISSION NAG1 - SERVICE INFORMATION VA
