Torque from the tor que con verter is increased via
the input sh aft (25) and a ll thr ee pla neta ry gear sets
and tra nsferr ed to the out pu t shaft (26). (Fig. 10)
(Fig. 11)
Front Planetary Gear Set
The ann ulu s gea r (8) is driven by t he input shaft
(25). The sun gear (21) is held again st th e housing by
the locked fr eewheel F1 (20) during accelerat ion and
via the engaged mu ltiple-disc holding clutch B1 (4)
du ring decelera tion . The pla neta ry pinion gears (17)
turn on t he fixed sun gear (21) and increa se the
torqu e from the ann ulus gear (8) t o the planetary
carrier (13). The plan etar y carrier (13) moves at a
reduced speed in t he running direct ion of the en gine.
Rear Planetary Gear Set
The m ult iple-disc clu tch K2 (9) is engaged and
transfers the input speed of the inpu t shaft (25) t o
the planetar y carrier (15) via the annulus gear (10).
The an nulus gear (11) tur ns at a reduced speed du e
to the mech anical conn ection with t he front plane-
tary car rier (13). The planetar y pin ion gears (19)
turn between t he a nnulus gear (11) an d the sun gear
(23). The sun gear (23) m oves at an increa sed speed
in the running direct ion of th e engine.
Center Planetary Gear Set
The a nnulus gear (10) turn s at the input speed as
a result of the en gaged multiple-disc clut ch K2 (9).
The multiple-disc clutch K3 (12) t ransfer s a n

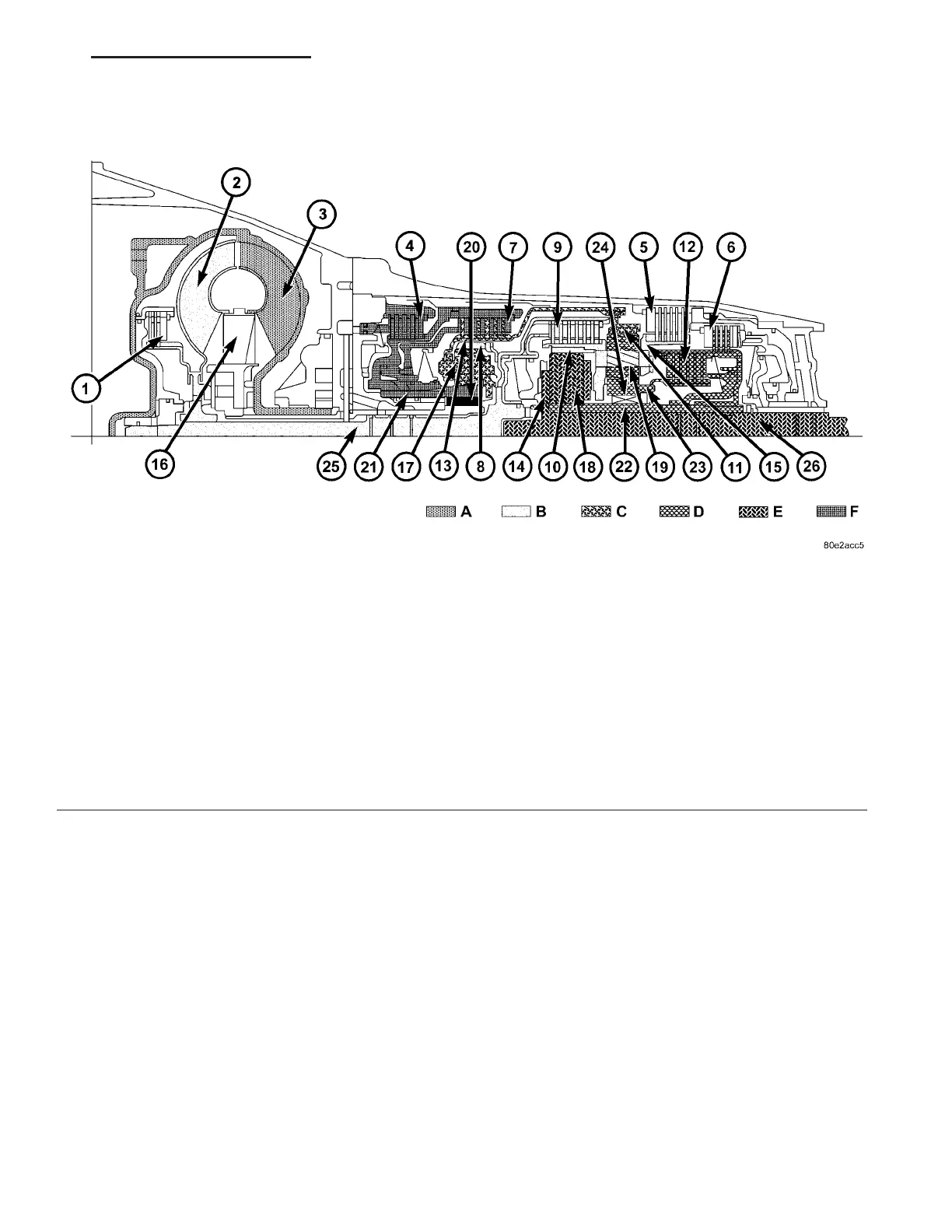

Fig. 11 Fifth Gear Powerflow
1 - TORQUE CONVERTER LOCK-UP CLUTCH 14 - CENTER PLANETARY CARRIER
2 - TORQUE CONVERTER TURBINE 15 - REAR PLANETARY CARRIER
3 - TORQUE CONVERTER IMPELLER 16 - TORQUE CONVERTER STATOR
4 - HOLDING CLUTCH B1 17 - FRONT PLANETARY PINION GEARS
5 - HOLDING CLUTCH B3 18 - CENTER PLANETARY PINION GEARS
6 - HOLDING CLUTCH B2 19 - REAR PLANETARY PINION GEARS
7 - DRIVING CLUTCH K1 20 - FREEWHEELING CLUTCH F1
8 - FRONT PLANETARY ANNULUS GEAR 21 - FRONT PLANETARY SUN GEAR
9 - DRIVING CLUTCH K2 22 - CENTER PLANETARY SUN GEAR
10 - CENTER PLANETARY ANNULUS GEAR 23 - REAR PLANETARY SUN GEAR
11 - REAR PLANETARY ANNULUS GEAR 24 - FREEWHEELING CLUTCH F2
12 - DRIVING CLUTCH K3 25 - INPUT SHAFT
13 - FRONT PLANETARY CARRIER 26 - OUTPUT SHAFT
A - ENGINE SPEED D - SECOND GEAR RATIO
B - TRANSMISSION INPUT SPEED E - THIRD GEAR RATIO
C - FIRST GEAR RATIO F - FIXED PARTS
VA AUTOMATIC TRANSMISSION NAG1 - SERVICE INFORMATION 21 - 17
