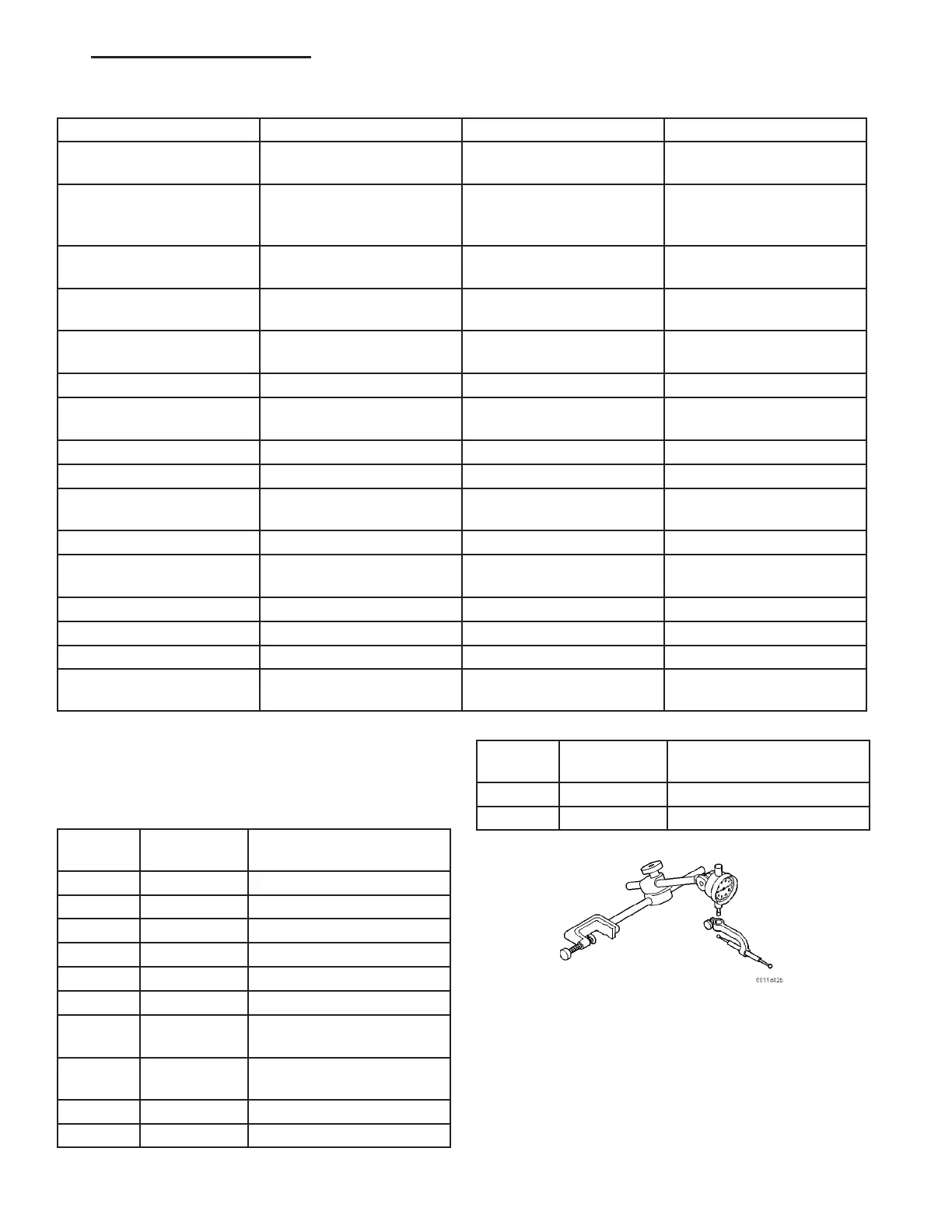

TORQUE SPECIFICATIONS
DESCRIPTION N·m Ft. Lbs. In. Lbs.
Bolt, Transmission Hous-
ing to Engine
38 28 -
Bolt, Transmission Oil
Line to Transmission
Housing
34 25 -
Bolt, Oil Fill Tube to
Transmisson Housing
8 - 71
Bolt, Oil Fill Tube to Cyl-
inder Head
8 - 71
Bolt, Torque Converter to
Drive Plate
50 37 -
Bolt, B2 Clutch Carrier 16 - 141
Bolt, B1 Carrier to Con-
verter Housing
10 - 88.5
Nut, Propeller Flange 200 147.5 -
Bolt, Electrohydraulic Unit 8 - 71
Bolt, Transmission Hous-
ing to Converter Housing
20 - 177
Bolts, Oil Pan 8 - 71
Screws, Valve Body/Hous-
ing Side Cover
4 - 35
Bolt, Shift Plate 8 - 71
Bolt, Solenoid Leaf Spring 8 - 71
Plug, Oil Pan Drain 20 - 177
Nut, Shifter Mechanism to
Floor Pan
7 - 65
SPECIAL TOOLS - AUTOMATIC TRANSMIS-
SION - NAG1
SPECI AL T OOL CROSS REFEREN CE CH ART
MB
TOOL #
MILLER
TOOL #
DESCRIPTION
N/A C-3339 DIAL INDICATOR SET
N/A C-4171 DRIVE HANDLE
N/A 6311 GAUGE BAR
N/A 8266 END-PLAY SET
N/A 8266-18 END-PLAY ADAPTER
N/A 8863B DIPSTICK
140 586
13 43 00
8900 MULTI-USE SPRING
COMPRESSOR
208 589
00 21 00
8901 PRESSING TOOL
N/A 8902A SEAL INSTALLER
N/A 9078 STAKING TOOL
MB
TOOL #
MILLER
TOOL #
DESCRIPTION
N/A 9082 BEARING REMOVER
N/A 9287 BEARING INSTALLER
Dial Indicator - C-3339
VA AUTOMATIC TRANSMISSION NAG1 - SERVICE INFORMATION 21 - 87
