NOTE: The sleeves and pistons of the overlap reg-
ulating valves must not be mixed up.
(2) In st all all valves an d springs from the valve
body (1) (Fig. 136). Check all va lves for ease of move-
ment and shavings.
(3) In st all the scr ews to hold the side cover s to the
valve body. Tigh ten th e screws to 4 N·m (35 in.lbs.).

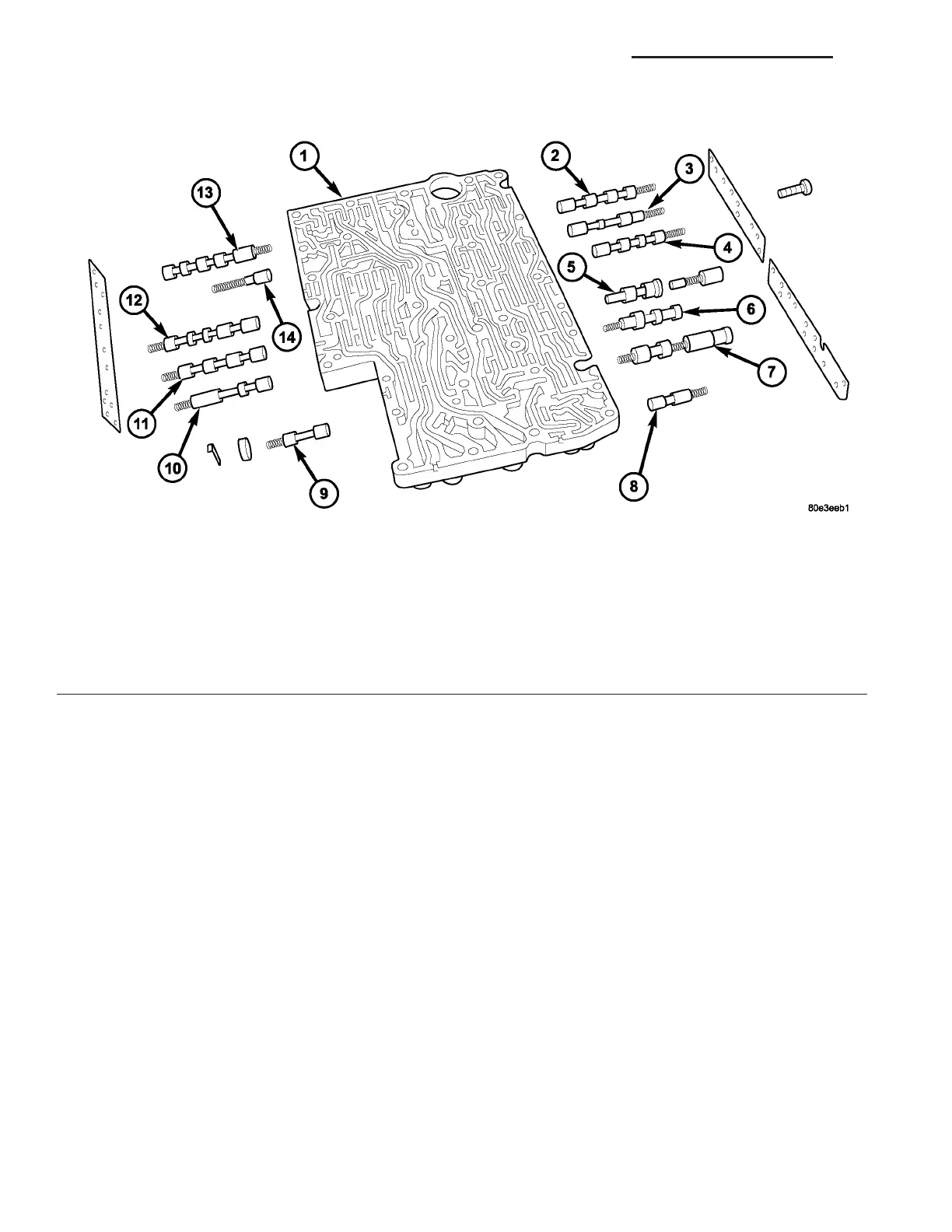

Fig. 136 Valve Body Components
1 - VALVE BODY 8 - SHIFT VALVE PRESSURE REGULATING VALVE
2 - 1-2/4-5 COMMAND VALVE 9 - B2 SHIFT VALVE
3 - 1-2/4-5 HOLDING PRESSURE SHIFT VALVE 10 - 2-3 HOLDING PRESSURE SHIFT VALVE
4 - 1-2/4-5 SHIFT PRESSURE SHIFT VALVE 11 - 2-3 COMMAND VALVE
5 - 1-2/4-5 OVERLAP REGULATING VALVE, SLEEVE, AND PIS-
TON
12 - 2-3 SHIFT PRESSURE SHIFT VALVE
6 - SHIFT PRESSURE REGULATING VALVE 13 - TCC LOCK-UP REGULATING VALVE
7 - REGULATING VALVE PRESSURE REGULATING VALVE 14 - TCC DAMPER VALVE - if equipped
21 - 126 AUTOMATIC TRANSMISSION NAG1 - SERVICE INFORMATION VA
