INSTRUMENT PANEL
TABLE OF CONTENTS
page page
CLUSTER BEZEL
REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . 56
ACCESSORY SWITCH BEZEL
REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . 56
INSTRUMENT PANEL CENTER BEZEL
REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . 57
ASH RECEIVER
REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . 57
CUP HOLDER
REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . 58
GLOVE BOX
REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . 58
INSTRUMENT PANEL ASSEMBLY
REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . 63
TOP COVER - CLUSTER
REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . 64
TOP COVER - TRAY
REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . 66
TOP COVER
REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . 68
STEERING COLUMN OPENING COVER
REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . 69
CLU ST ER BEZ EL
REMOVAL
WARNING: ON VEHICLES EQUIPPED WITH AIR-
BAGS, DISABLE THE AIRBAG SYSTEM BEFORE
ATTEMPTING ANY STEERING WHEEL, STEERING
COLUMN, SEAT BELT TENSIONER, OR INSTRU-
MENT PANEL COMPONENT DIAGNOSIS OR SER-
VICE. DISCONNECT AND ISOLATE THE BATTERY
NEGATIVE (GROUND) CABLE, THEN WAIT TWO
MINUTES FOR THE AIRBAG SYSTEM CAPACITOR
TO DISCHARGE BEFORE PERFORMING FURTHER
DIAGNOSIS OR SERVICE. THIS IS THE ONLY SURE
WAY TO DISABLE THE AIRBAG SYSTEM. FAILURE
TO TAKE THE PROPER PRECAUTIONS COULD
RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT
AND POSSIBLE PERSONAL INJURY.
(1) Disconn ect and isolate the battery nega tive
cable.
(2) Unscr ew screws. (F ig. 1)
(3) Usin g a trim stick C-4755 or equivalent, sepa -
rate cover.
(4) Disconn ect electr ical connectors and remove
bezel.

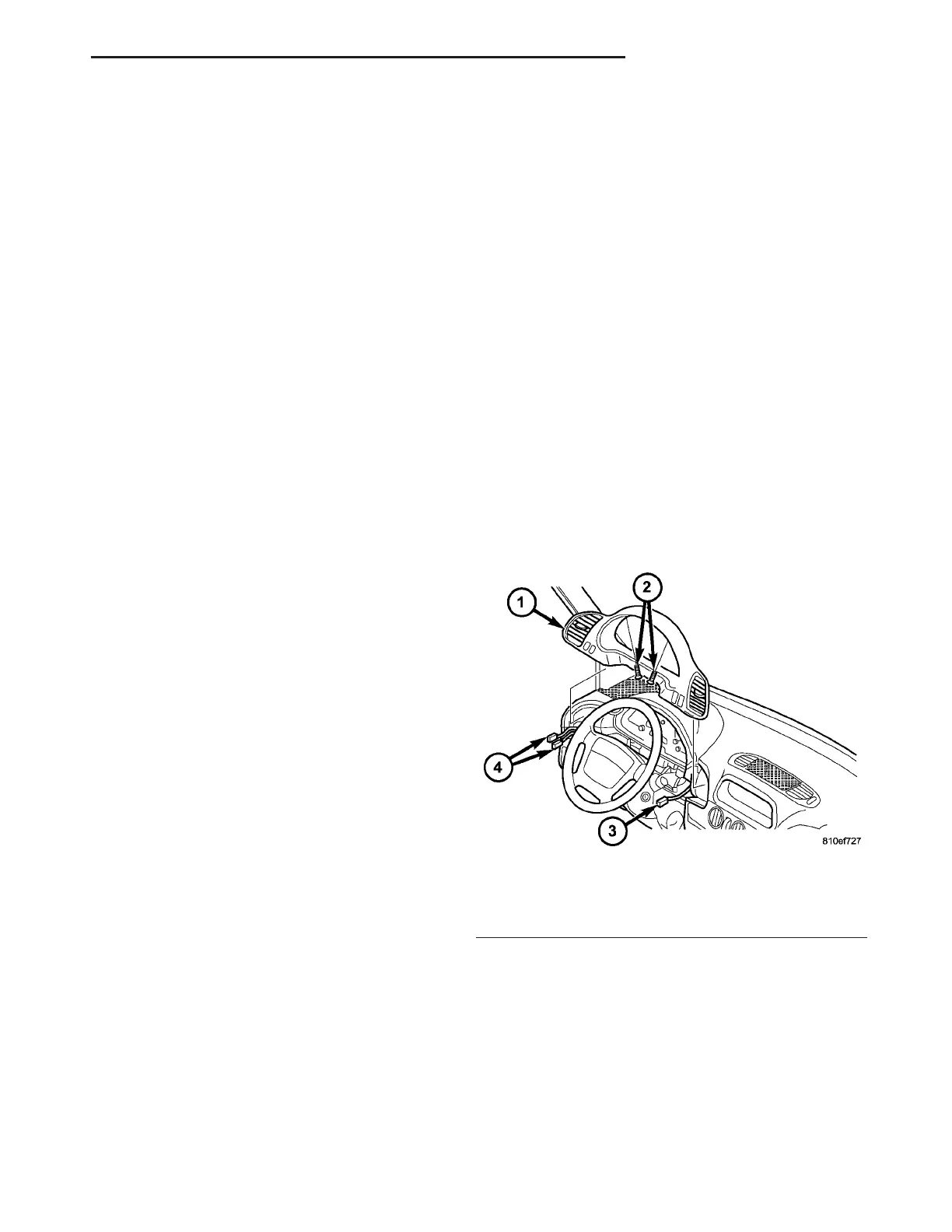

Fig. 1 CLUSTER BEZEL
1 - CLUSTER BEZEL
2 - SCREWS (2)
3 - ELECTRICAL CONNECTOR
4 - ELECTRICAL CONNECTORS
VA INSTRUMENT PANEL 23 - 55
