Dodge Sprinter 2006 - Page 2293

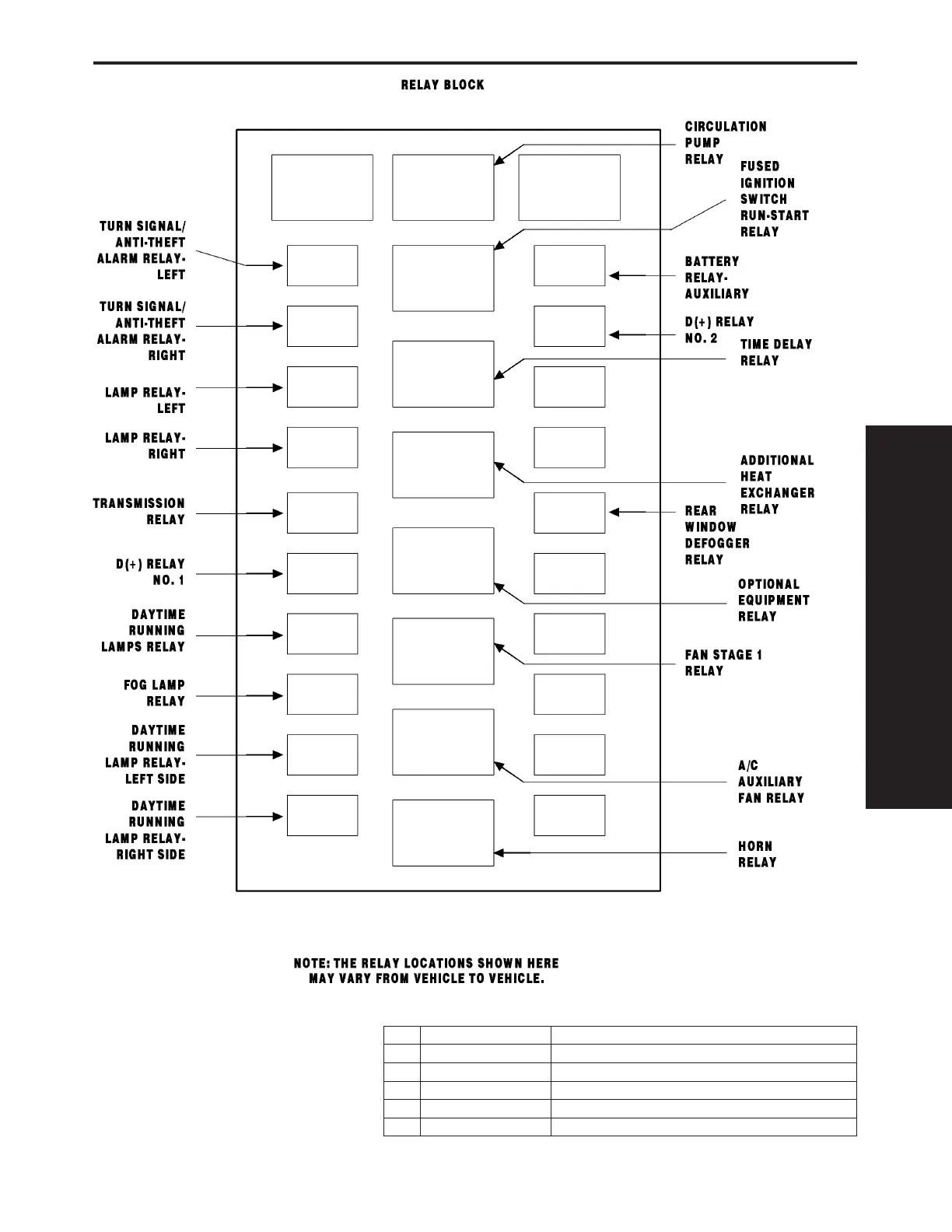

TRANSMISSION RELAY (RELAY BLOCK)
CAV CIRCUIT FUNCTION
30 16BK/DG TRANSMISSION RELAY OUTPUT
85 16B R GR OU N D
86 16BK/YL FUSED IGNITION SWITCH OUTPUT (RUN-START)
87 16RD FUSED B(+)
87A - -
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
133
CON N ECT OR PI N OU T S
