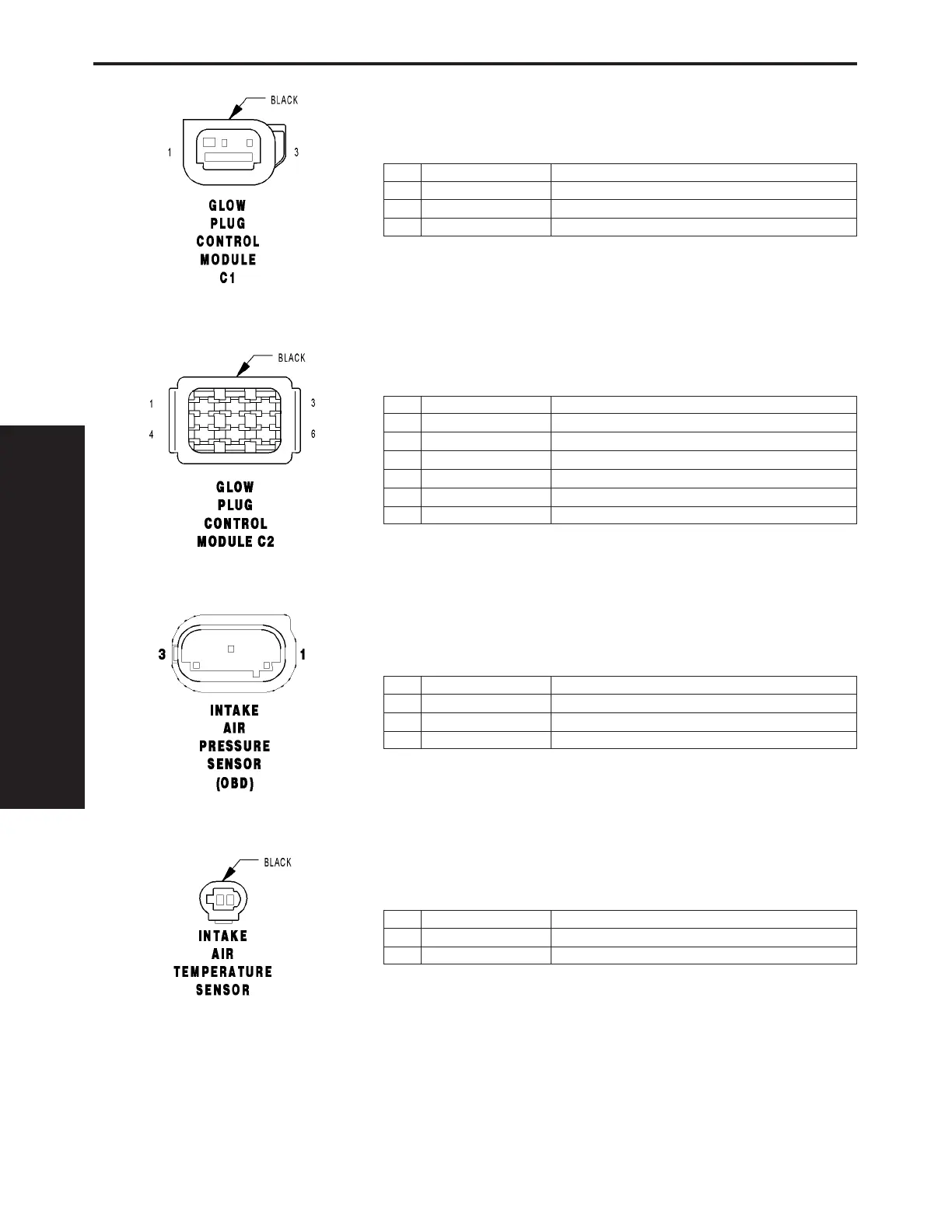

GLOW PLUG CONTROL M ODULE C1 - BLACK
CAV CIRCUIT FUNCTION
118BR GROUND
2 18BK/RD GLOW PLUG MODULE CONTROL
3- -
GLOW PLUG CONTROL M ODULE C2 - BLACK
CAV CIRCUIT FUNCTION
1 14BK/DG GLOW PLUG NO. 5 SUPPLY VOLTAGE
2 14BK/YL GLOW PLUG NO. 4 SUPPLY VOLTAGE
3 14BK/RD GLOW PLUG NO. 3 SUPPLY VOLTAGE
4 14BK/VT GLOW PLUG NO. 2 SUPPLY VOLTAGE
5 14BK/BL GLOW PLUG NO. 1 SUPPLY VOLTAGE
6- -
INTAKE AIR PRESSURE SENSOR (OBD)
CAV CIRCUIT FUNCTION
1 20BR/RD INTAKE PRESSURE SENSOR GROUND
2 20VT/DG INTAKE PRESSURE SENSOR SIGNAL
3 20VT/RD INTAKE PRESSURE SENSOR 5 VOLT SUPPLY
INTAKE AIR TEMPERATURE SENSOR - BLACK
CAV CIRCUIT FUNCTION
1 18BR/DG INTAKE AIR TEMPERATURE SENSOR GROUND
2 18DG/WT INTAKE AIR TEMPERATURE SENSOR SIGNAL
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
270
CON N ECT OR PI N OU T S
