The Y-Drive Assembly
DSX™ System Service Manual 7-33
7.5.3 Replacing the Encoder
The encoder is mounted on top of the Y motor as shown in Figure 7-37.

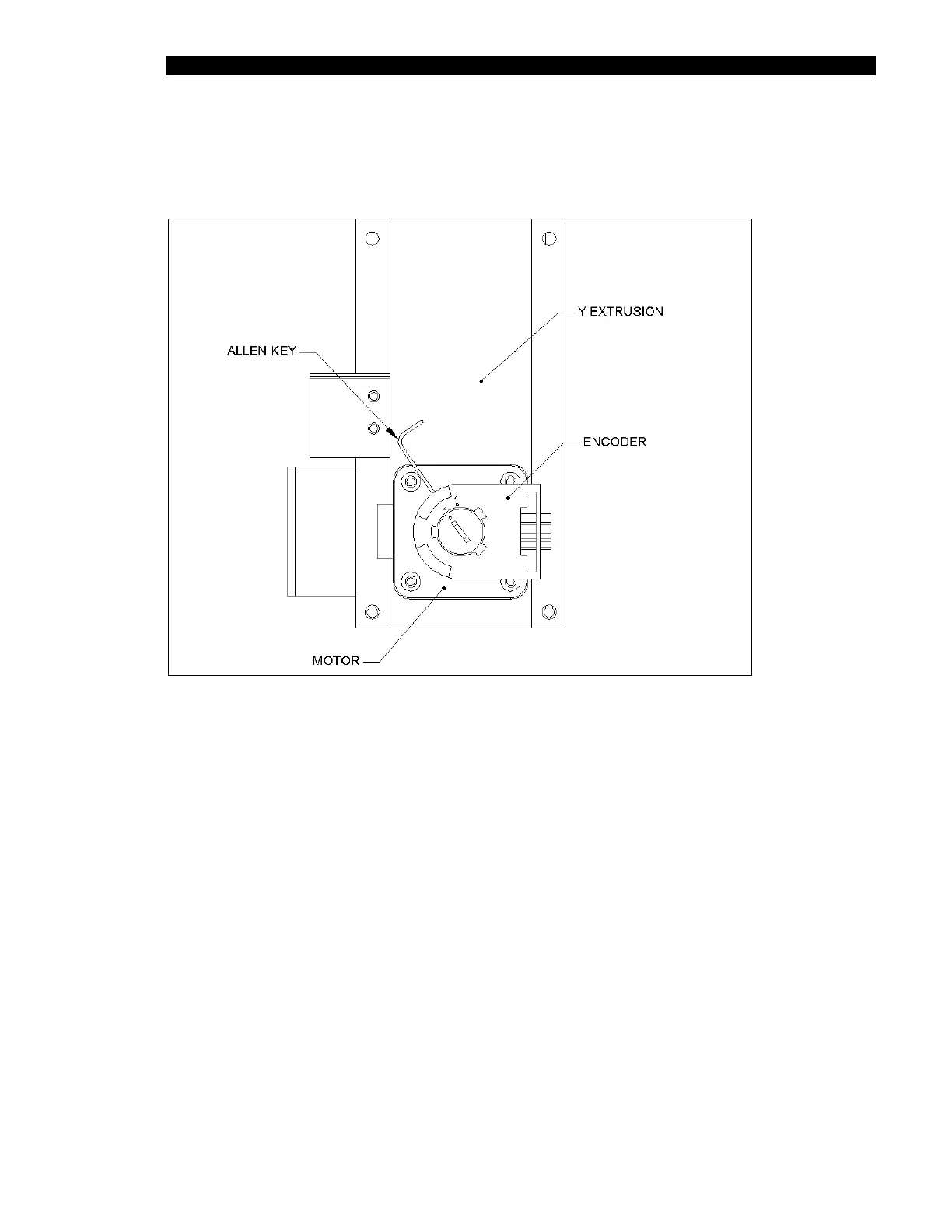

Figure 7-37 Y Encoder
To remove the encoder, release the Allen screw that holds the assembly to the motor shaft.
When the screw is released, the cover will be easily removed.
