Overview
DSX™ System Service Manual 17-1
Chapter 17 Electrical Support Components
17.1 Overview
The Dynex DSX Automated ELISA System is an integrated system that includes a number
of dedicated modules for specific tasks such as pipetting, incubation, monitoring of
absorbance, etc. Each module can be readily removed for service or replacement. Servicing of
these of these modules (and related components such as the filter for the washer module) is
described earlier in this manual.
This chapter describes how the service engineer can replace or service various components
that are related to overall system operation (e.g. the Electronics Pod). Replacement/Service of
the components described in this chapter may require that the external covers of the system be
removed as described in Chapter 16.
17.2 Replacing the Fans
Two fans (Part No. 50800140) are installed on the rear cover of the instrument
(Figure 17-1).

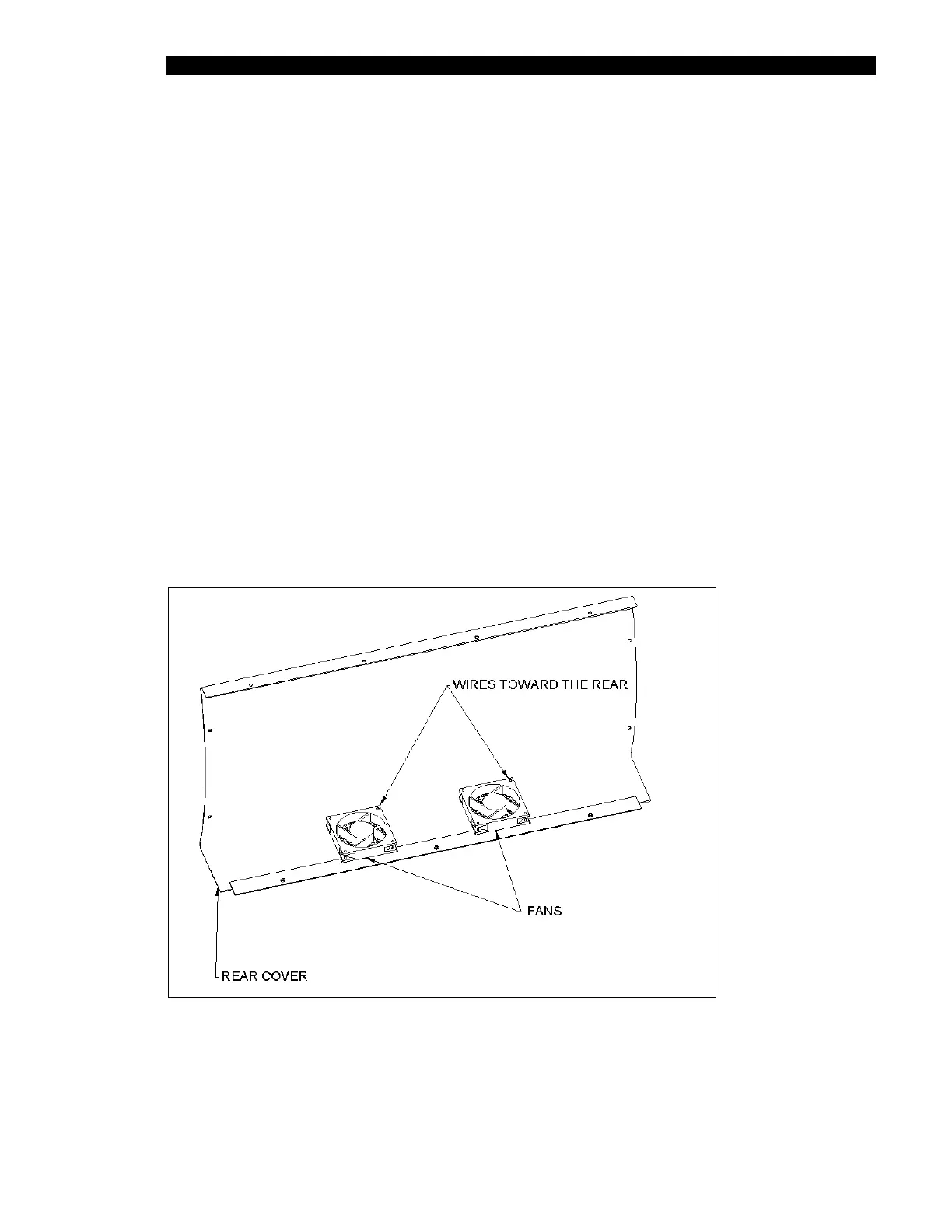

Figure 17-1 Exhaust Fans
