Repairing/Replacing Internal Components
11-26 DSX™ System Service Manual
3 Fasten the belt mount to the plate carrier assembly using 3 M3 x 6mm button
head screws and Loctite 222 (Figure 11-20).

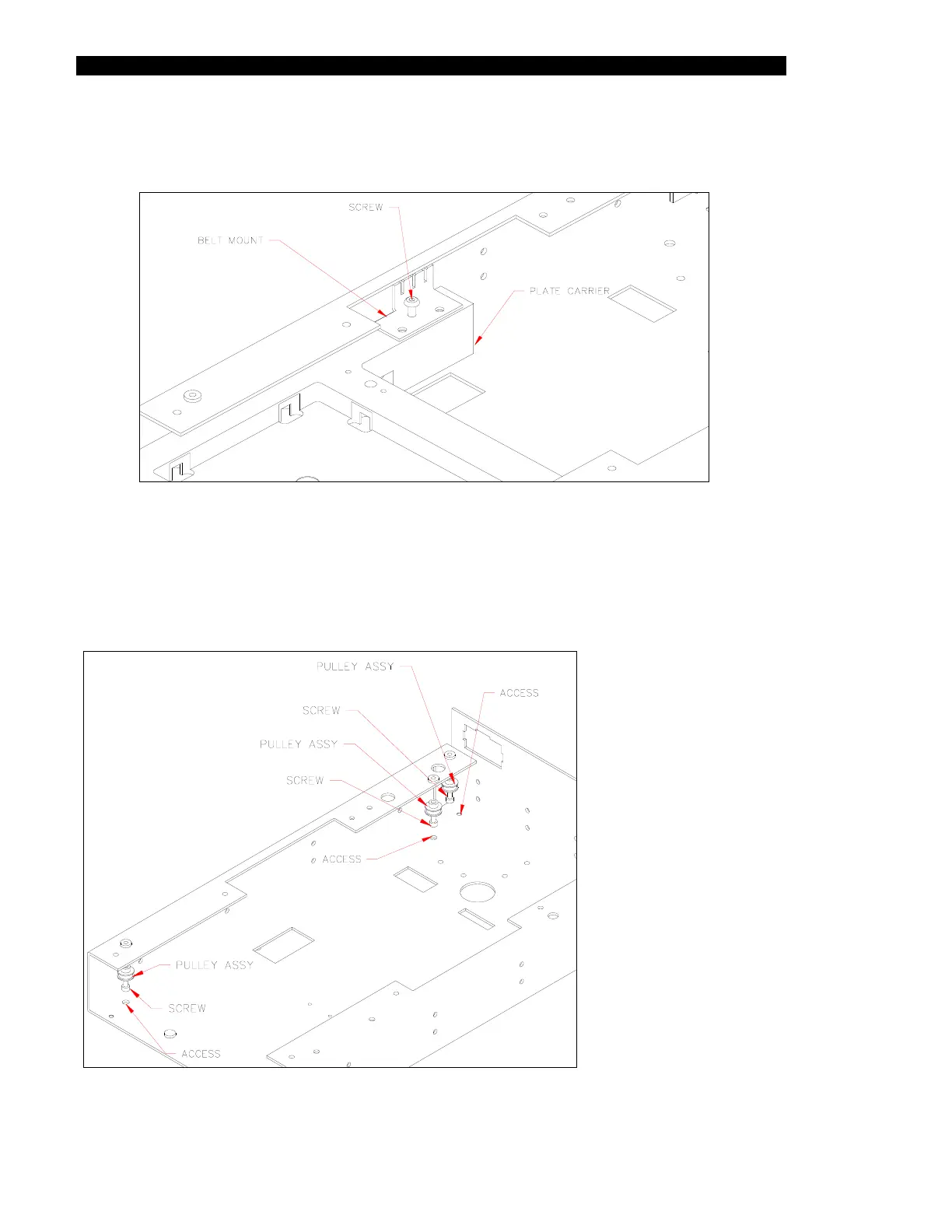

Figure 11-20 Tightening the Belt Mount
11.4.8 Removal/Replacement of the Idler Bearings
The Drive Belt Idler Bearings (Figure 11-21) defines the pathway for the drive belt:
Figure 11-21 Idler Bearings
