Manual Control Operations
5-8 DSX™ System Service Manual
5.2.7 Plate Movement
The Plate Movement test selections are listed in the right column of Figure 5-9.

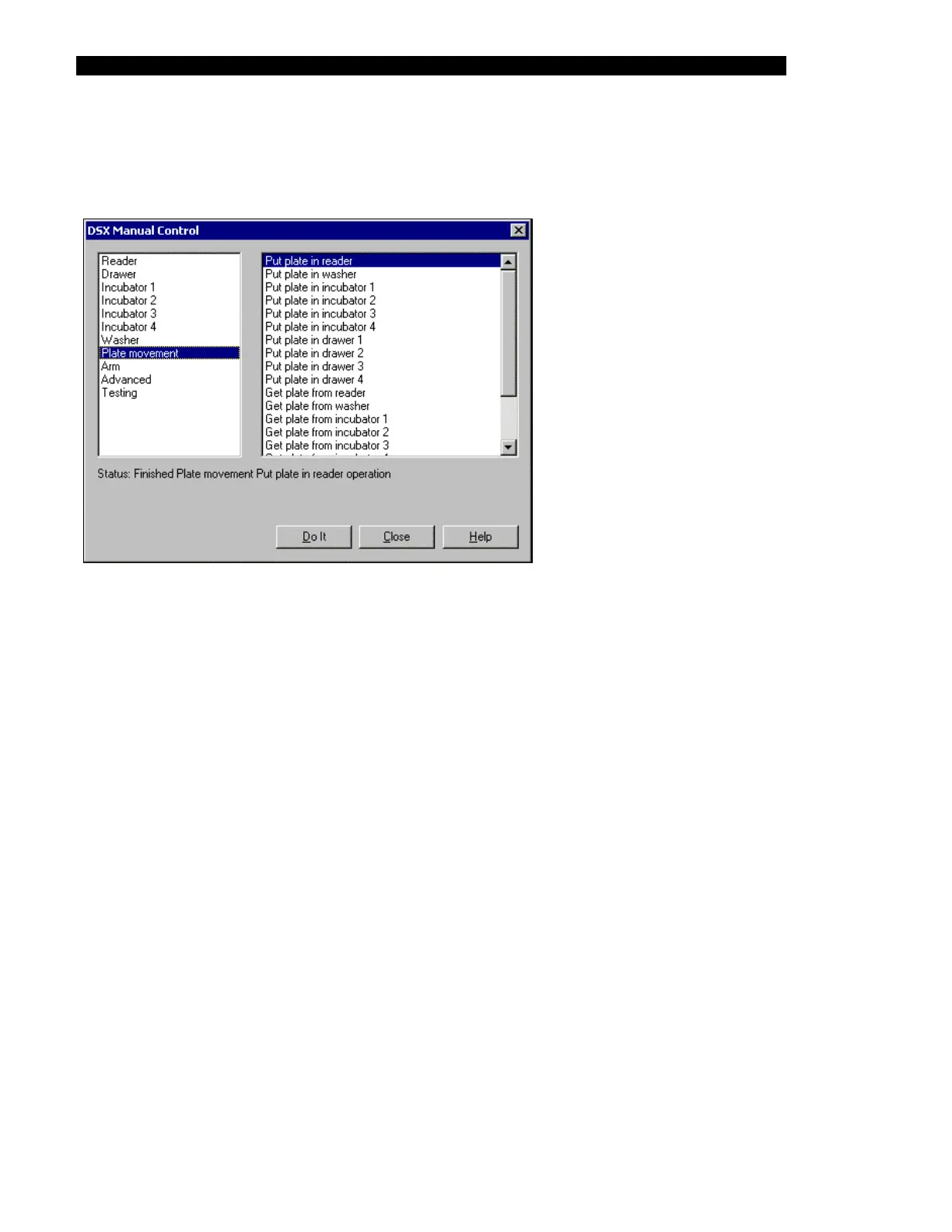

Figure 5-9 DSX Manual Control Dialog Box (Plate Movement Selections)
When you click on the Do It button, the Status line will indicate that the system is performing
the operation (for example, Doing a Plate Movement Putting Plate in Reader operation). At
the completion of the test operation, the message will indicate that the operation has been
performed (for example, Finished Plate Movement Putting Plate in Reader operation).
