Repairing/Replacing Internal Components
11-34 DSX™ System Service Manual
11.4.15 Removal/Replacement of the Filter Wheel
To Remove the Filter Wheel:
1 Remove the filter wheel by loosening the set screw tightened against the motor
shaft and remove (Figure 11-29).

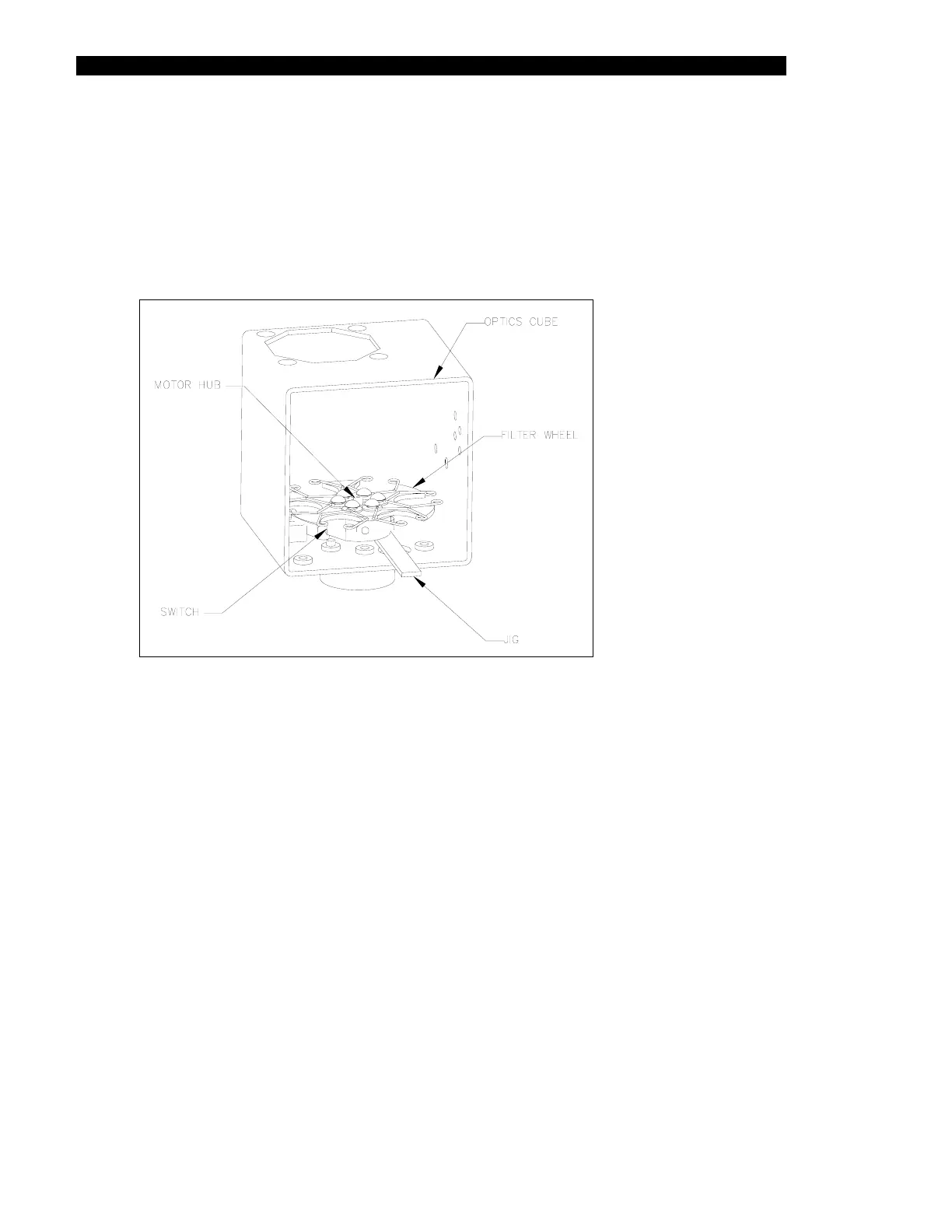

Figure 11-29 Removing the Filter Wheel
To Replace the Filter Wheel:
1 Mount the filter wheel to the motor shaft using one M3 x 6mm setscrew and
Loctite 242. When pressing the filter wheel down on the shaft, depress the switch
arm so it clears the filter wheel hub and avoids damaging the switch.
2 Set the gap using the jig (AMFIX005) and tighten the setscrew.
To Next Page
