Repairing/Replacing Internal Components
DSX™ System Service Manual 9-17
9.4.6 Removing the Plate Carrier Motor
To Remove the Plate Carrier Motor:
1 Remove the drive belt from the motor by removing the 4 M3 x 6mm socket head
screws securing the motor mount to the chassis and unwrap the belt from the
pulley.
2 Remove the Motor bracket from the chassis (Figure 9-18).
3 Remove the pulley assembly from motor shaft by loosening the set screw
(Figure 9-14

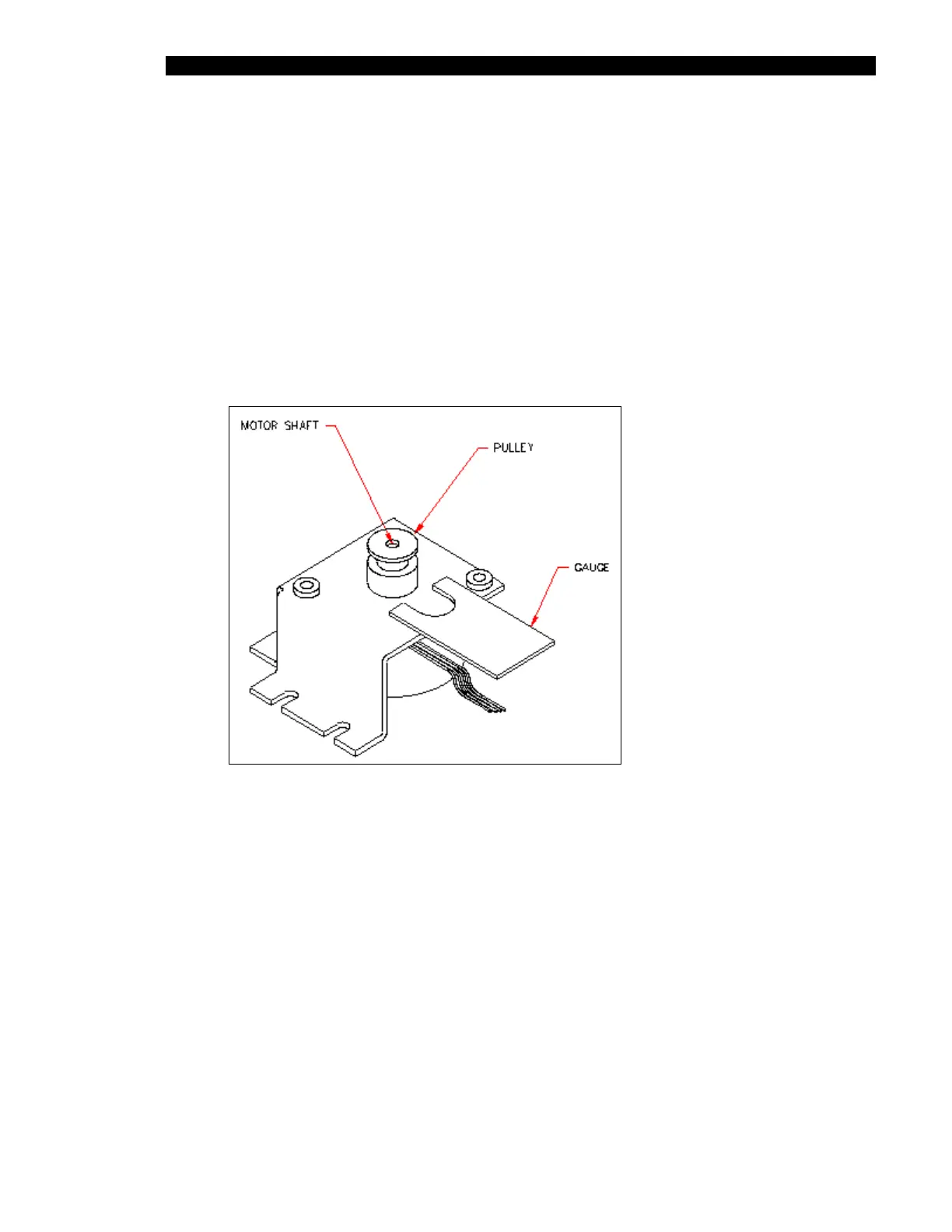

Figure 9-17 Drive Pulley Mechanism
