The X Axis Drive Assembly
DSX™ System Service Manual 7-53
7.6.8 Replacing the X-Drive Belt
To Remove the X-Drive Belt:
1 Loosen (by one-half turn only) the four screws that secure the adjustable block to
the X carriage (Figure 7-62).

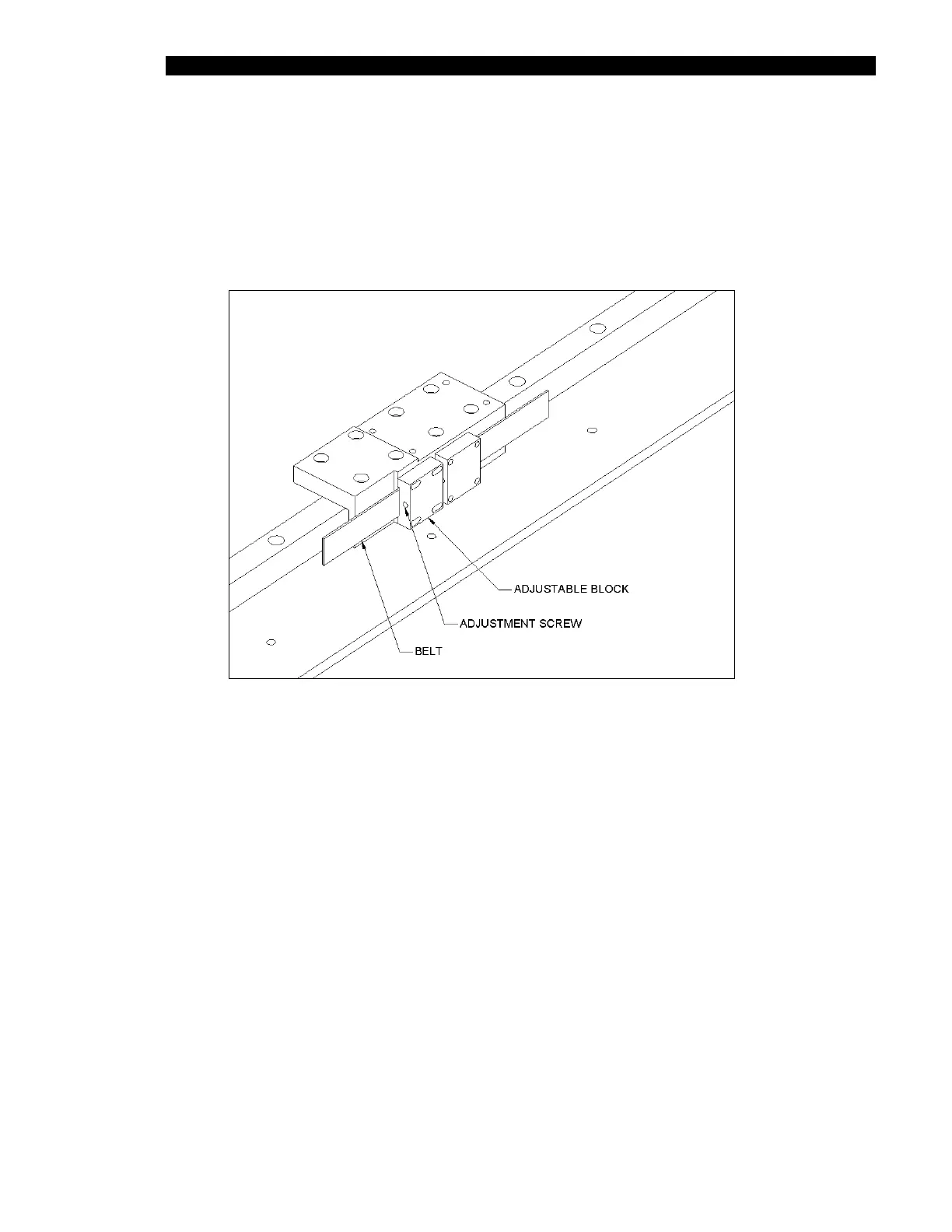

Figure 7-62 X-Drive Belt Adjustment Block
2 Remove the adjustment screw completely.
3 Loosen the adjustable block and the fixed block enough to free the ends of the
belt.
