Repairing/Replacing Internal Components
DSX™ System Service Manual 9-15
9.4.5 Removal/Replacement of the Drive Belt
The drive belt draws the plate into the module, and delivers the plate from the module in
position. It is powered by the plate carrier motor and is wrapped around three idlers as shown
in Figure 9-14.

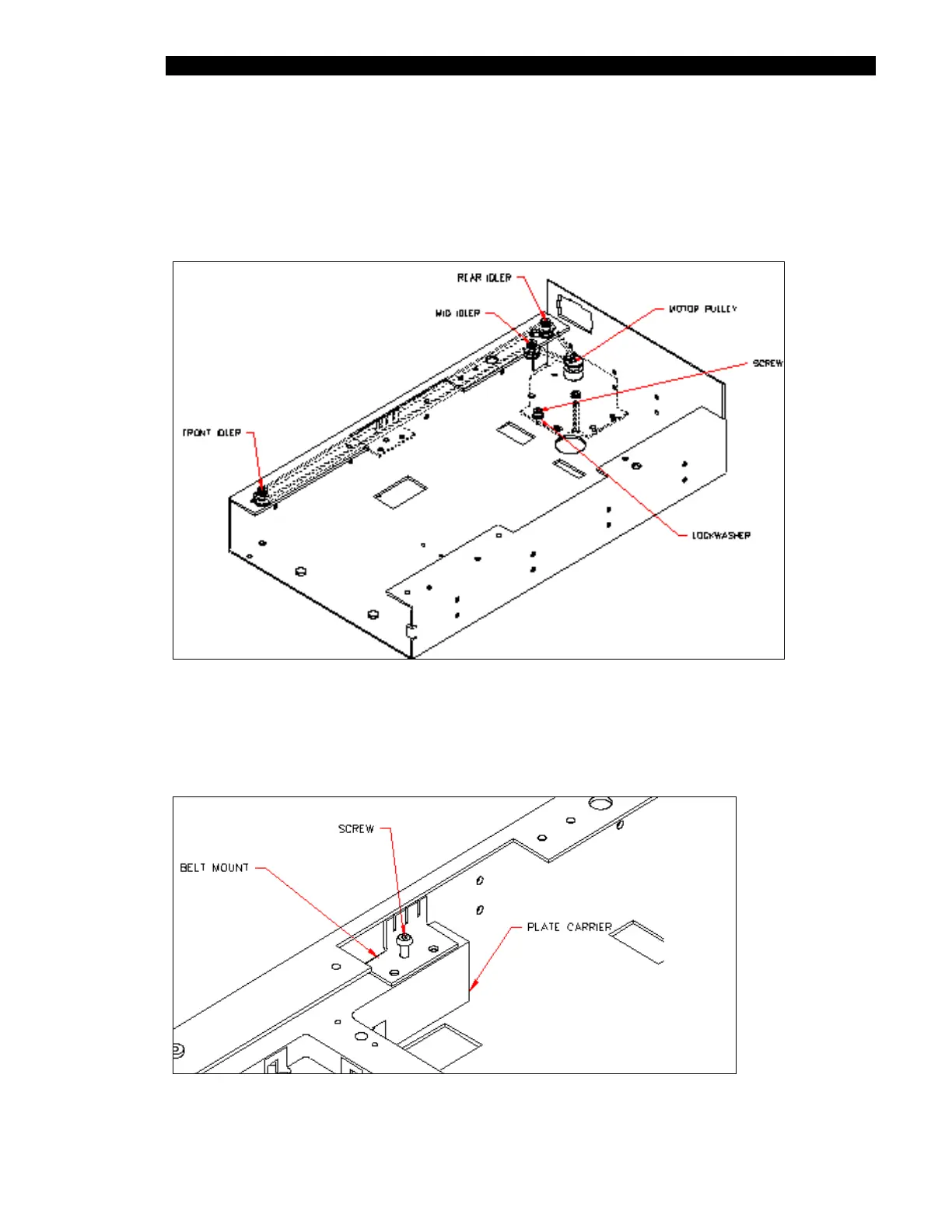

Figure 9-14 Incubator Drive Belt
To remove the drive belt, loosen the 3 M3 x 6 mm Button Head Screws that attach the belt
mount to the plate carrier assembly (Figure 9-15).
Figure 9-15 Belt Mount
