Repairing/Replacing Internal Components
11-24 DSX™ System Service Manual
11.4.6 Removal/Replacement of the Plate Carrier Bearings
1 Remove the M3 x 6mm socket head cap screw, M3 lock washer and M3 fender
washer (Figure 11-18).

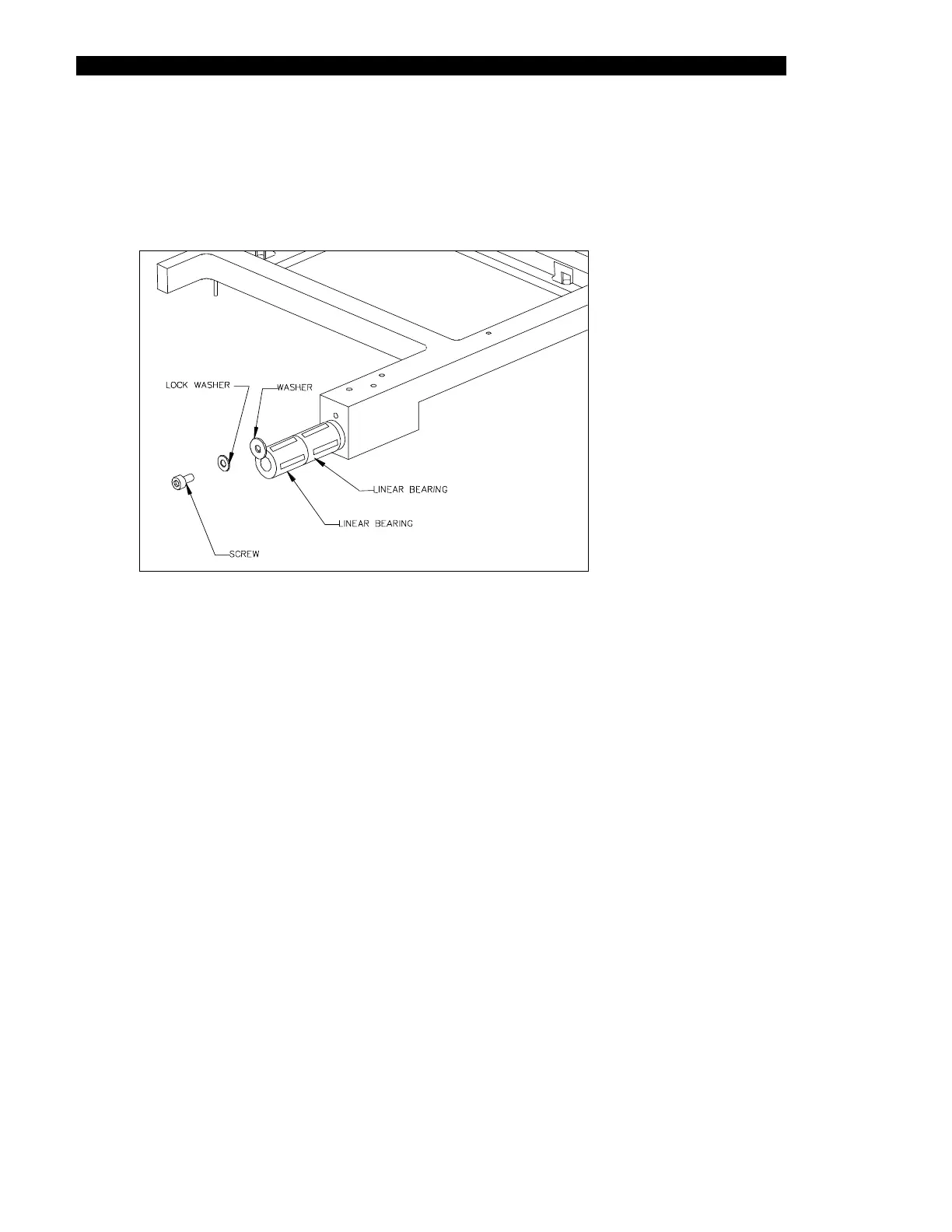

Figure 11-18 Replacing Plate Carrier Bearings
2 To reinstall, make sure the 4 silver pad surfaces of the bearing are facing up and
down and left and right (note diagram) and lock in place using one M3 fender
washer, one M3 x 6mm socket head cap screw and one M3 lock washer.
