The Y-Drive Assembly
DSX™ System Service Manual 7-41
7.5.6 Removing the Pulley
The Y axis pulley (Part No. 528101000) is mounted on the motor (Part No. 528301000) and
attached via a M4 x 6 mm skt set screw
When remounting the pulley, use a jig (Part No. YMFIX010) and Loctite 222 (Figure 7-48).
If the jig is not available, use a micrometer to set a distance of 3.2 mm. The pulley must be
attached to the long shaft of the motor.

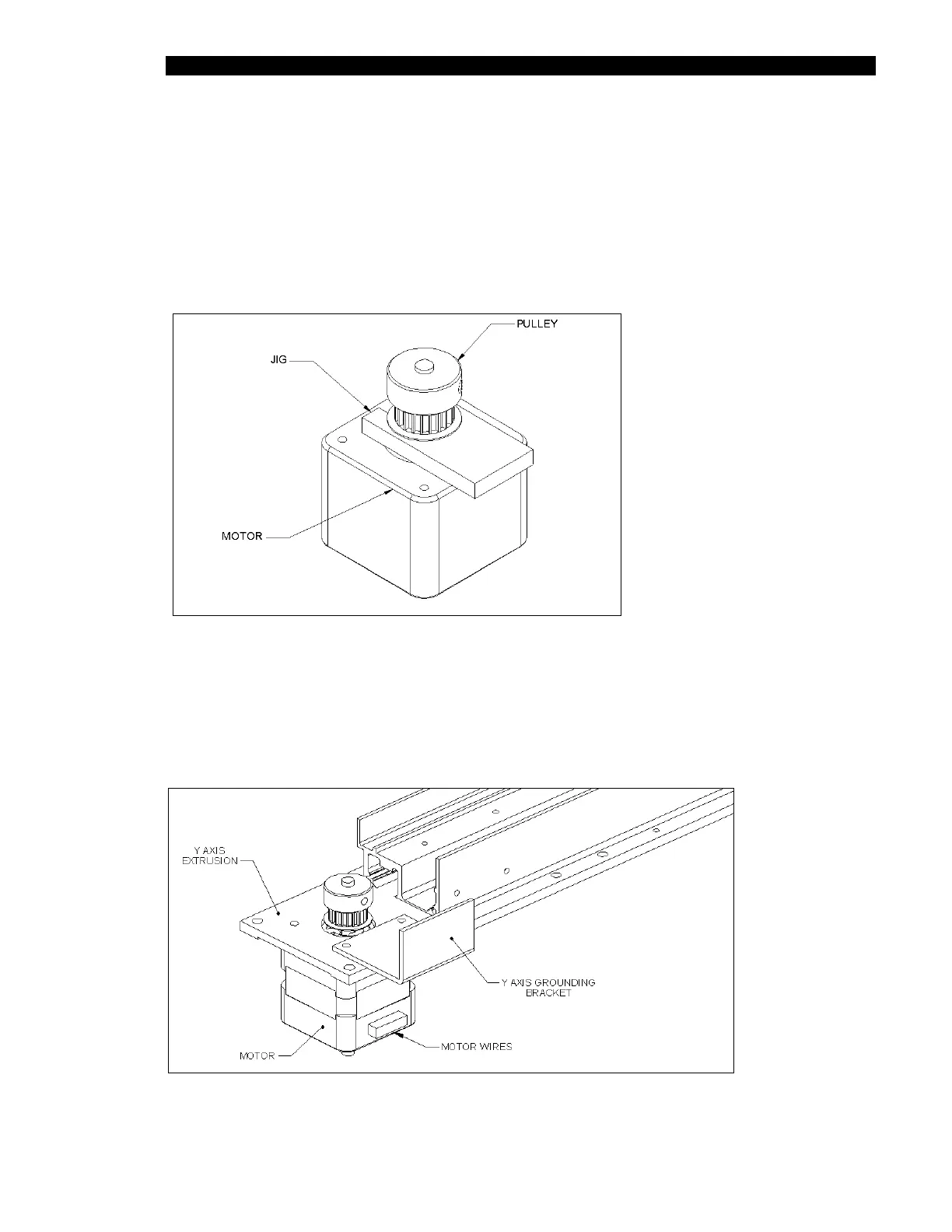

Figure 7-48 Replacing Motor Pulley
7.5.7 Removing the Y Axis Motor
The Y Axis motor (Part No. 528301000) is attached to the Y-Axis extrusion via two M3 x 8
mm cap head screws and two M3 x 10 mm cap head screws as shown in Figure 7-49.
Figure 7-49 Mounting the Y Axis Motor
