Repairing/Replacing Internal Components
DSX™ System Service Manual 9-11
9.4.2 Replacing the Top Heater Plate Assembly

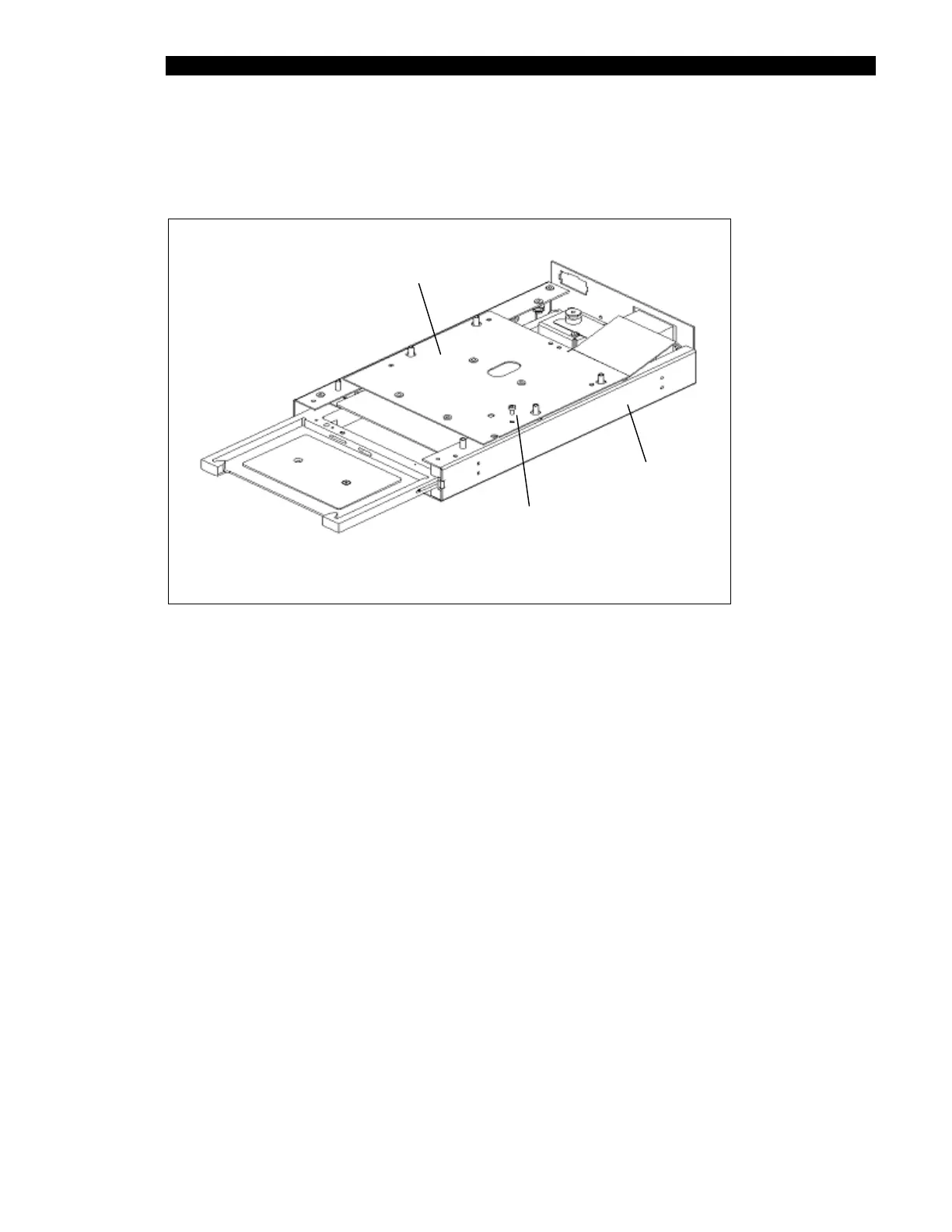

The Top Heater Plate Assembly is mounted to the Base Assembly as shown in Figure 9-9.
xy base
subassembly
6511300065
M3x6 SHCP, 4X
Top heater plate
subassembly
Figure 9-9 Top Heater Plate Assembly
Remove the Top heater plate assembly by unscrewing the 4 M3 x 6mm socket head cap
screws as shown in Figure 9-9.
