Repairing/Replacing Internal Components
DSX™ System Service Manual 11-45
11.4.25 Rebuilding the Lower Optic Block
To Rebuild the Lower Optical Block:
1 Place the lower lens strip on the lower optics block.
2 Place the lower lens stop on top of the lens strip. Align all the parts by inserting an
AMFIX004 alignment dowel in the alignment hole and an AMFIX004 alignment
dowel in the alignment slot (Figure 11-41).
3 Fasten the assembly together using 6 M2 x 8mm button head screws.
4 Route the wires for the reference photodiode in the lower optics block
(Figure 11-41).

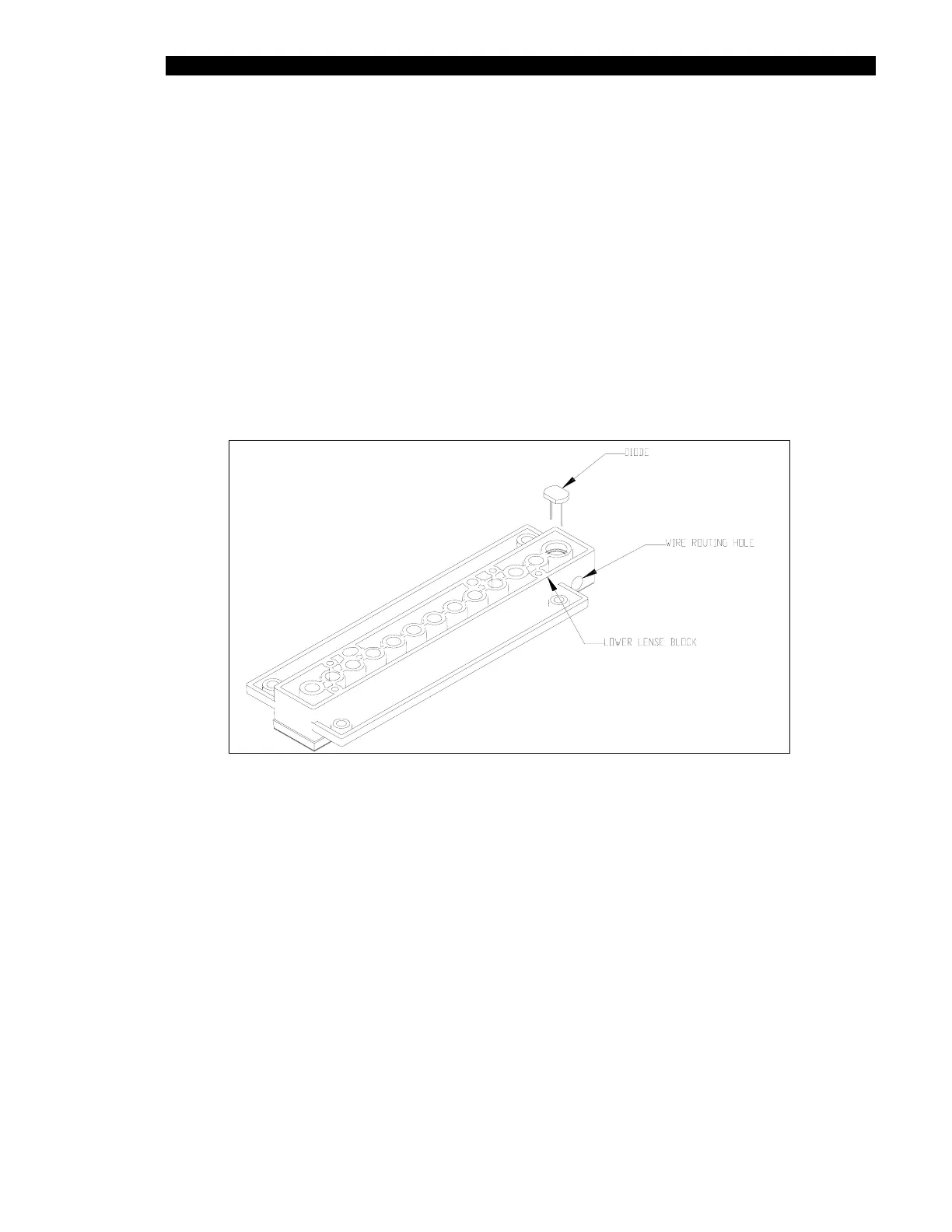

Figure 11-41 Rewiring Block
