The Electronics Pod Assembly (EPOD)
DSX™ System Service Manual 17-3
17.3 The Electronics Pod Assembly (EPOD)
The Electronics Pod Assembly (EPOD) provides the power to the system and provides
communication between the personal computer and the various system components and
sensors (e.g. the door lock). Typically, the EPOD is a replaceable module, but in certain
situations, the service engineer may be required to replace components of the EPOD.
The overall design of the EPOD is shown in Figure 17-2.

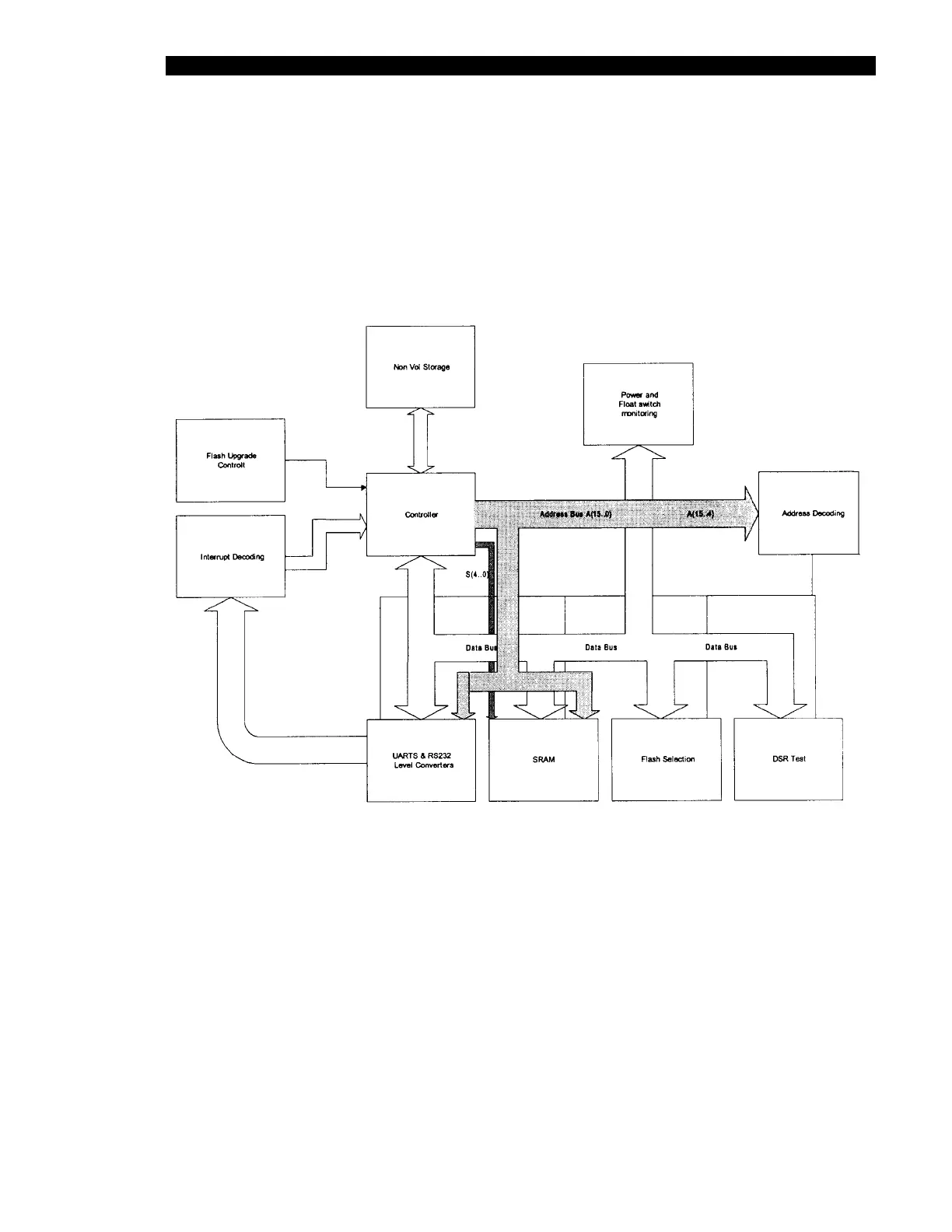

Figure 17-2 Circuit Block Diagram for the EPOD
