Repairing/Replacing Internal Components
DSX™ System Service Manual 11-37
6 If the beep is not continuous, then move the switch closer to the motor by
loosening the two M2 filter switch screws and using another Allen wrench to
relocate while re-tightening the screws. Repeat the continuity meter test. If the
beep is still not continuous then loosen the filter motor screws and push the motor
closer to the switch, then retighten the two M3 filter motor screws. Repeat the
continuity meter test.
11.4.18 Removal/Replacement of the Slide Blocks
To Remove the Slide Blocks (Gravity Blocks):
1 Remove the upper gravity block (or plate in later models) in the XY base by
removing the 2 M3 x 6mm button head screws and 2 M3 lock washers
(Figure 11-32).
2 Remove the lower gravity block in the XY base by removing the 4 M3 x 6mm
button head screws and 4 M3 lock washers.

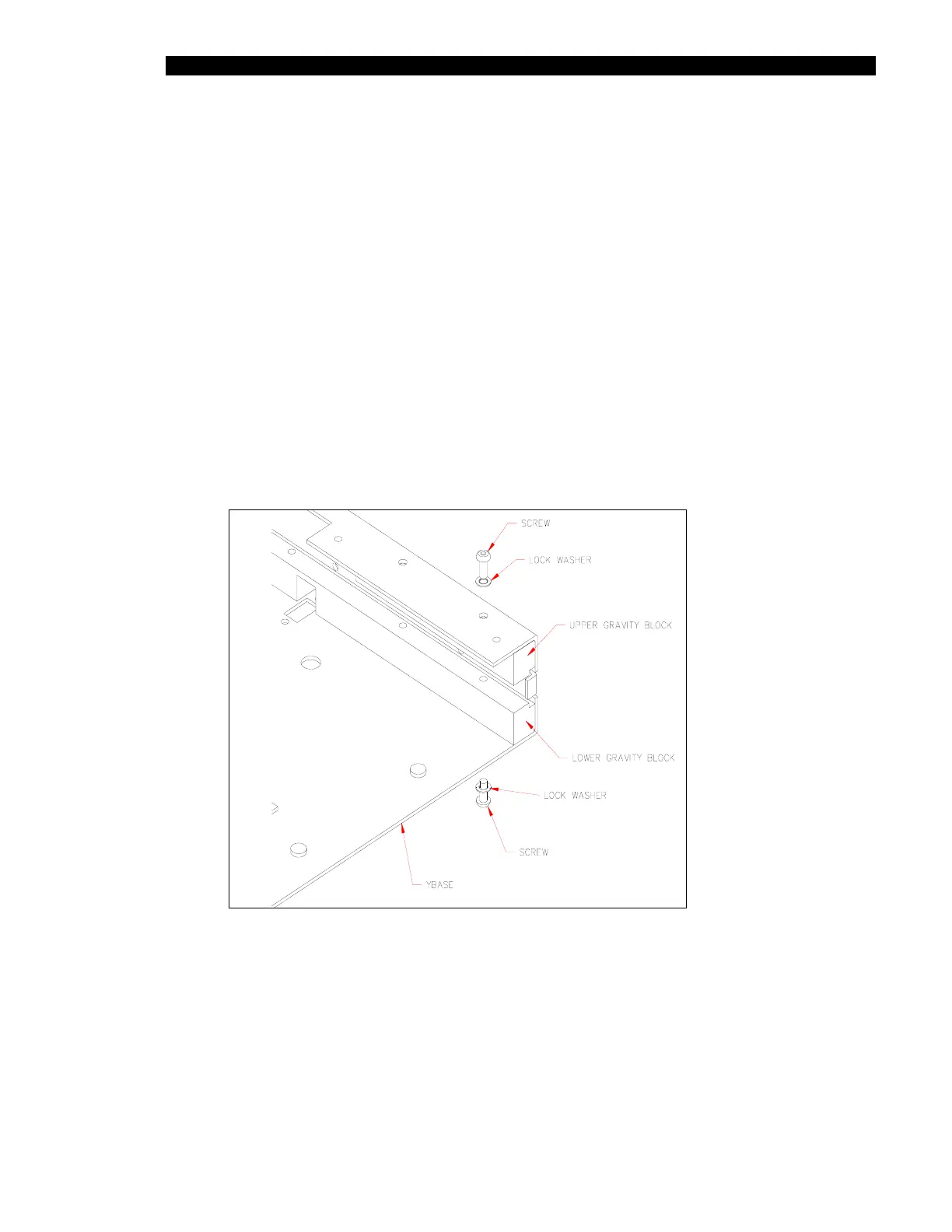

Figure 11-32 Removing the Gravity Blocks
To Replace the Gravity Blocks:
1 Place upper gravity block or plate in later models in XY base. Fasten with two
M3 x 6mm button head screws and 2 M3 lock washers.
2 Place lower gravity block in XY base. Fasten with three M3 x 6mm button head
screws and 3 M3 lock washers.
