Replacing the Left Hinge
16-10 DSX™ System Service Manual
To Replace the Gas Damping Spring:
Note: Before you replace the springs, make certain that the arms are not
rubbing against the solenoid.
1 Compress a gas damping spring using the spring compressor jig
(Part No. DSXFIX021)
2 Mount the spring to the spigots with the cylinder facing up.
3 Fasten the M5 Lock Nuts and washers.
16.5 Replacing the Left Hinge

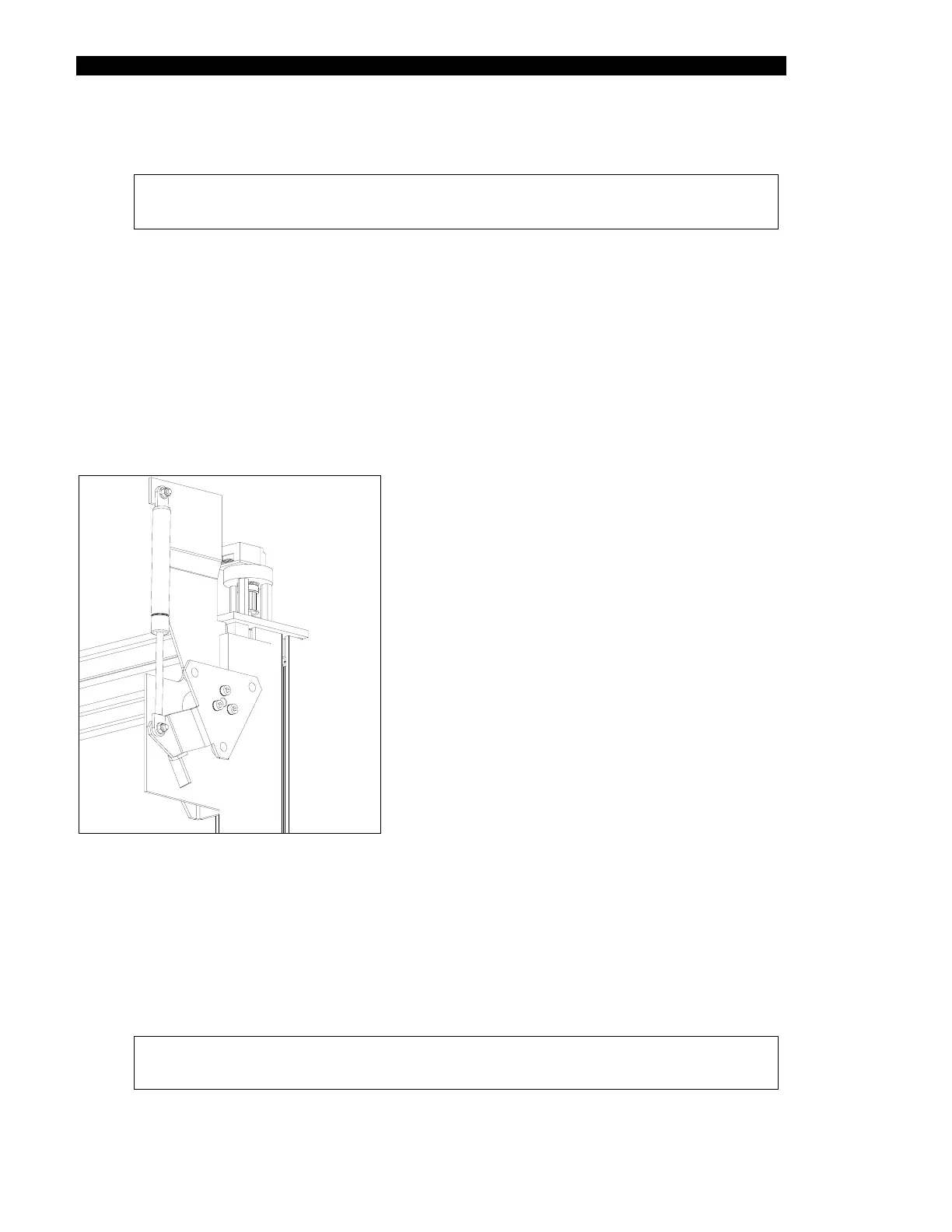

The left hinge assembly (Part No. 13001671) is shown in Figure 16-10.
Figure 1 -1 Left Hinge Assembly 6 0
moving the Left Side Panel 6-6
To Remove the Left Hinge:
1 Remove the left side panel (see Re on page 1 ).
2 Unscrew the two M6X10 Cap Head Screws (307300610) to remove the left hinge
assembly.
Note: The right hinge assembly is mounted in the same manner.
