The X Axis Drive Assembly
7-46 DSX™ System Service Manual
7.6.4 Removing the Pulley from the X-Drive Motor
The Pulley (Part No. 23001660) is attached to the X-Drive motor (Part No. 528300800) by
two M4 x 6 cone point set screws as shown in Figure 7-56.

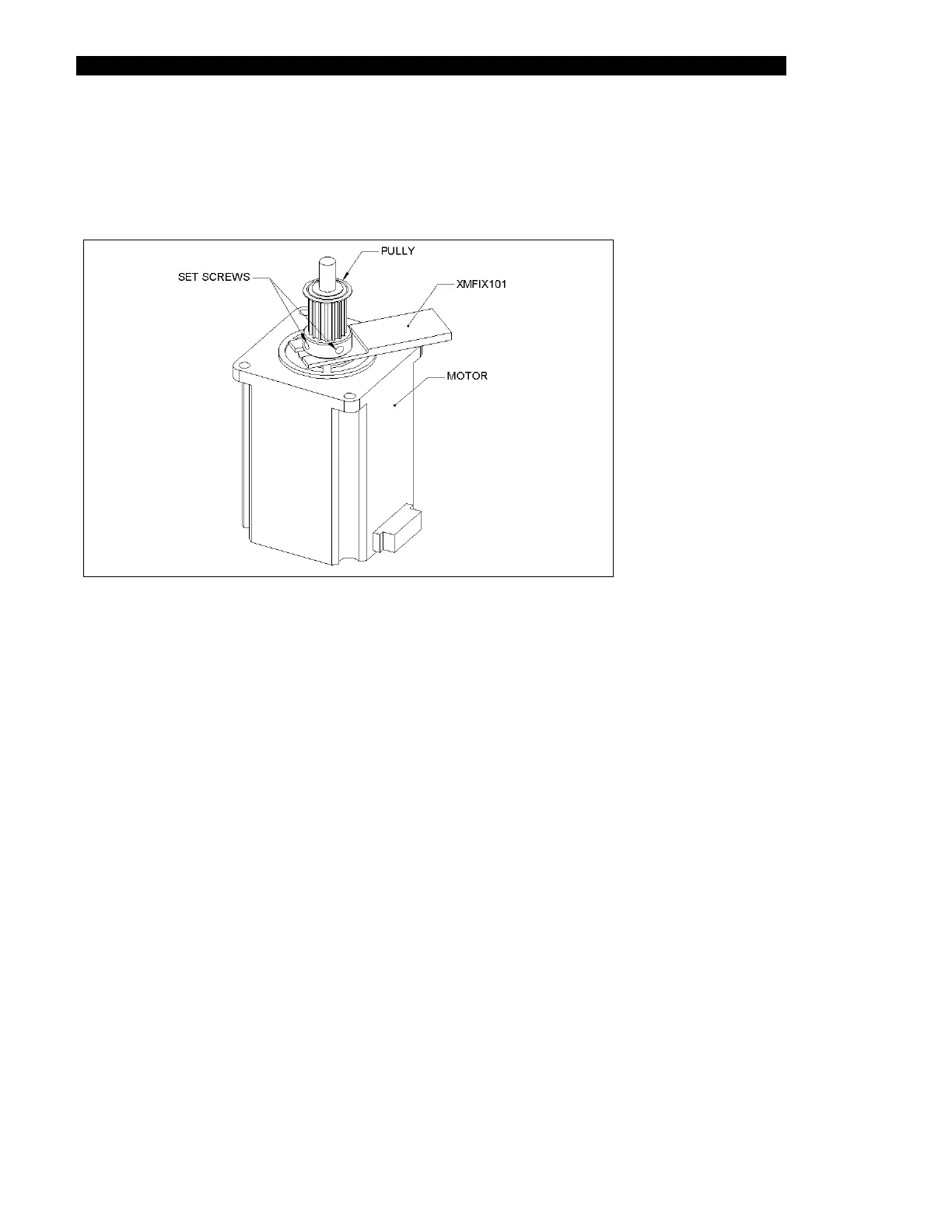

Figure 7-56 Affixing the Pulley to the X-Drive Motor
When attaching a new pulley, use the pulley height setting jig (XMFIX010) to set the proper
height. If the jig is not available, use a micrometer to set the distance from the bottom of the
pulley to the top of the motor housing to 2.2 mm. The screws supplied with the pulley should
be discarded, use M4 x 6 cone point set screws (Part No. 307400406) instead.
