The X Axis Drive Assembly
DSX™ System Service Manual 7-45
2 Tighten the encoder wheel to idler shaft (Figure 7-54) using the Allen key.
3 Rotate encoder cover from the open to closed position by inserting a small flat
blade screwdriver into the notch and rotating. The encoder cover is shown in the
closed position in Figure 7-55.

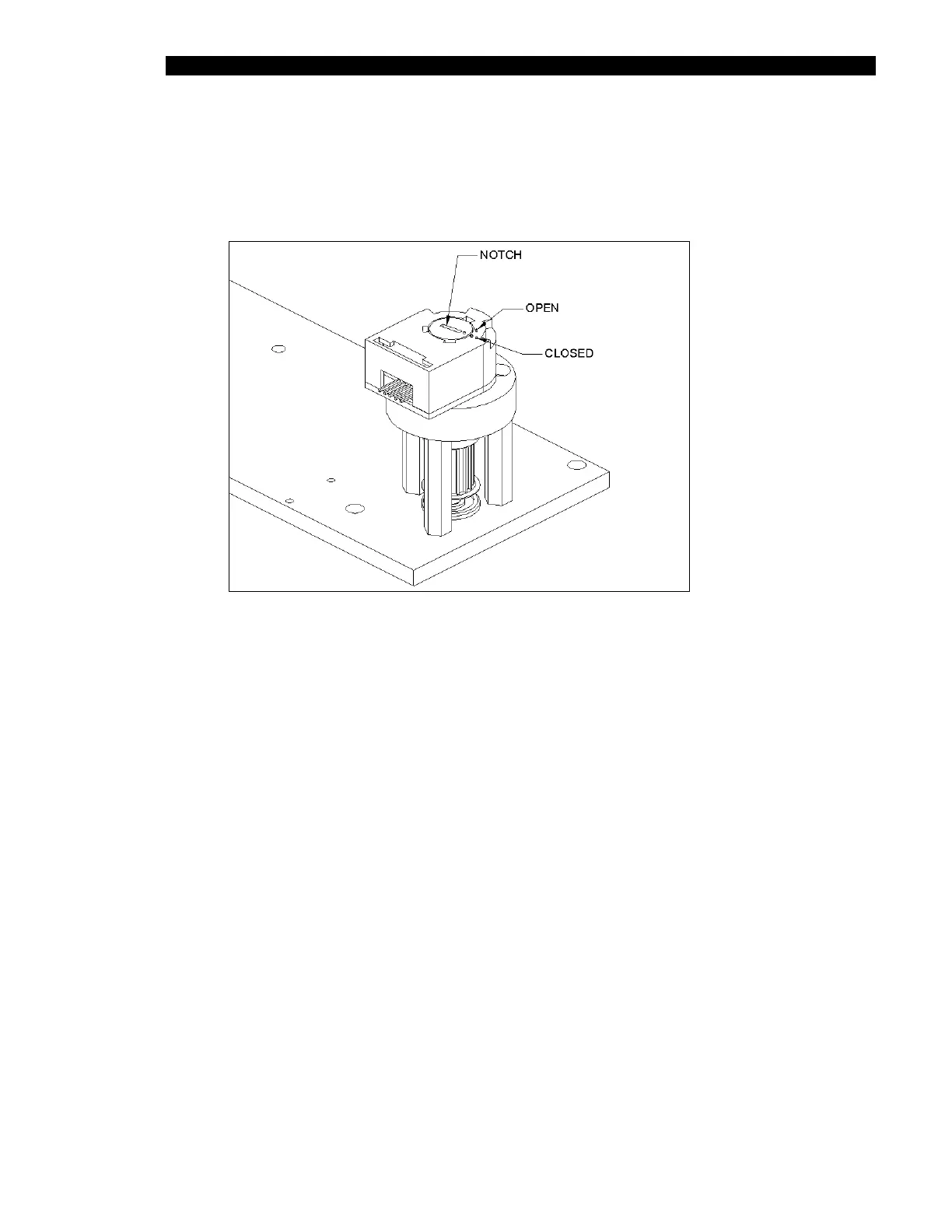

Figure 7-55 X-Encoder Position
