Replacing External Components
13-14 DSX™ System Service Manual
13.3.4 The Plate Carrier Assembly and Wash Head
The Plate Carrier Assembly and Washhead can be removed from the system without
removing the washer module from the system (Figure 13-6).

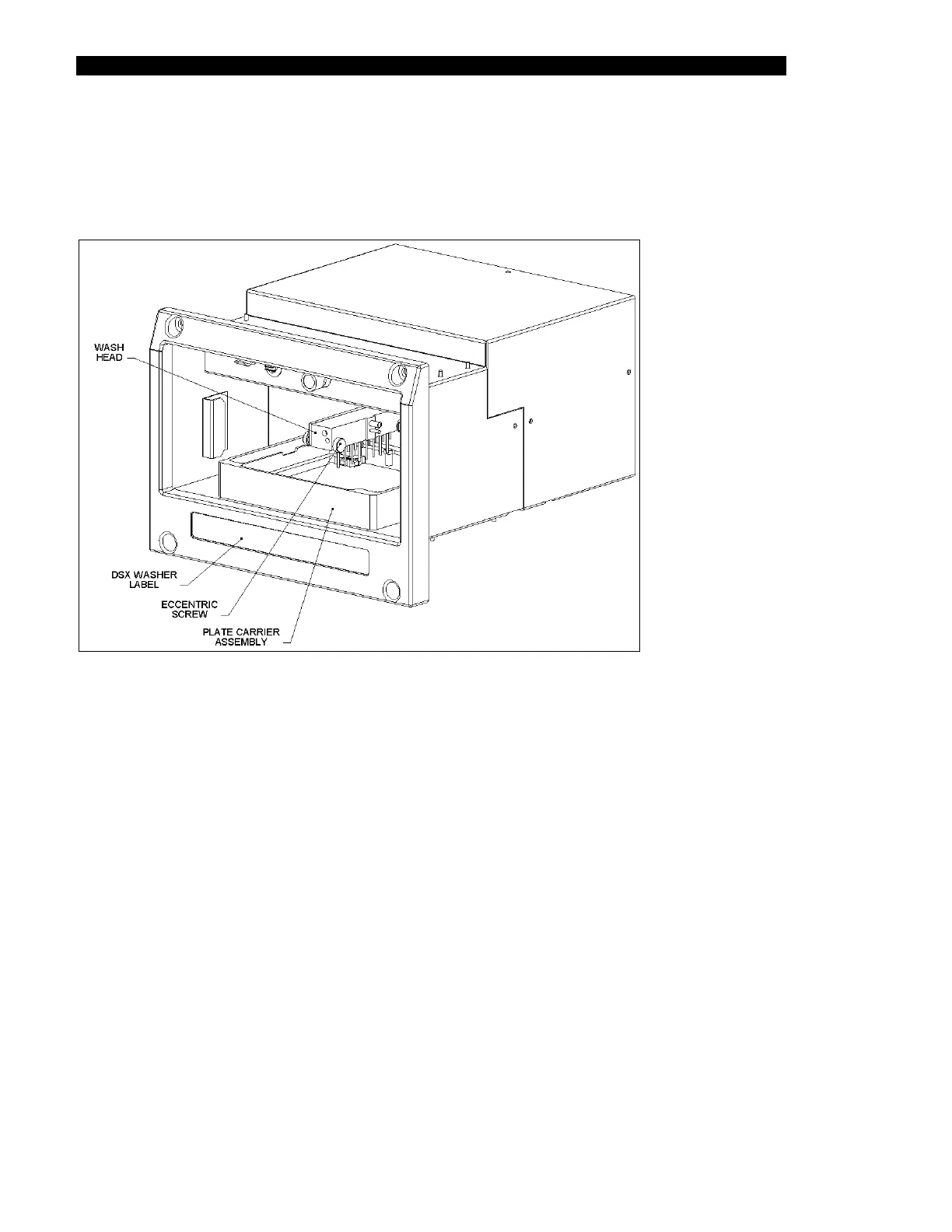

Figure 13-6 Washer Module
The Plate Carrier Assembly (Part No. 13001790) is attached to rails on the base of the washer
and can be readily removed by lifting it.
The 8-Way Wash Head Assembly (Part No. 204025300) is attached to the arm via the
eccentric screw.
